NTC-16A Checking the Intake Air Temperature Sensor
NTC-16A Checking the Intake Air Temperature Sensor

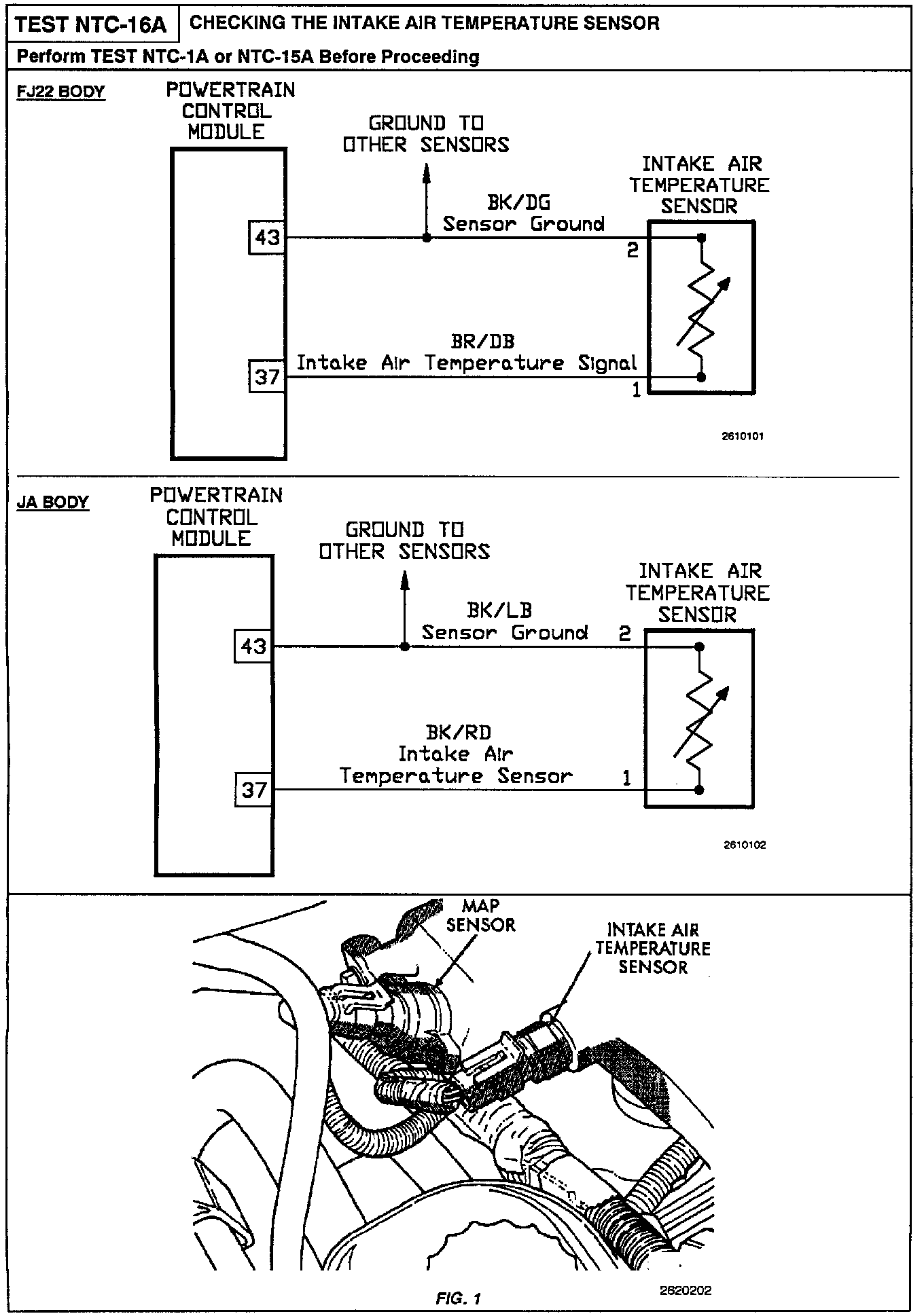

Related Images:

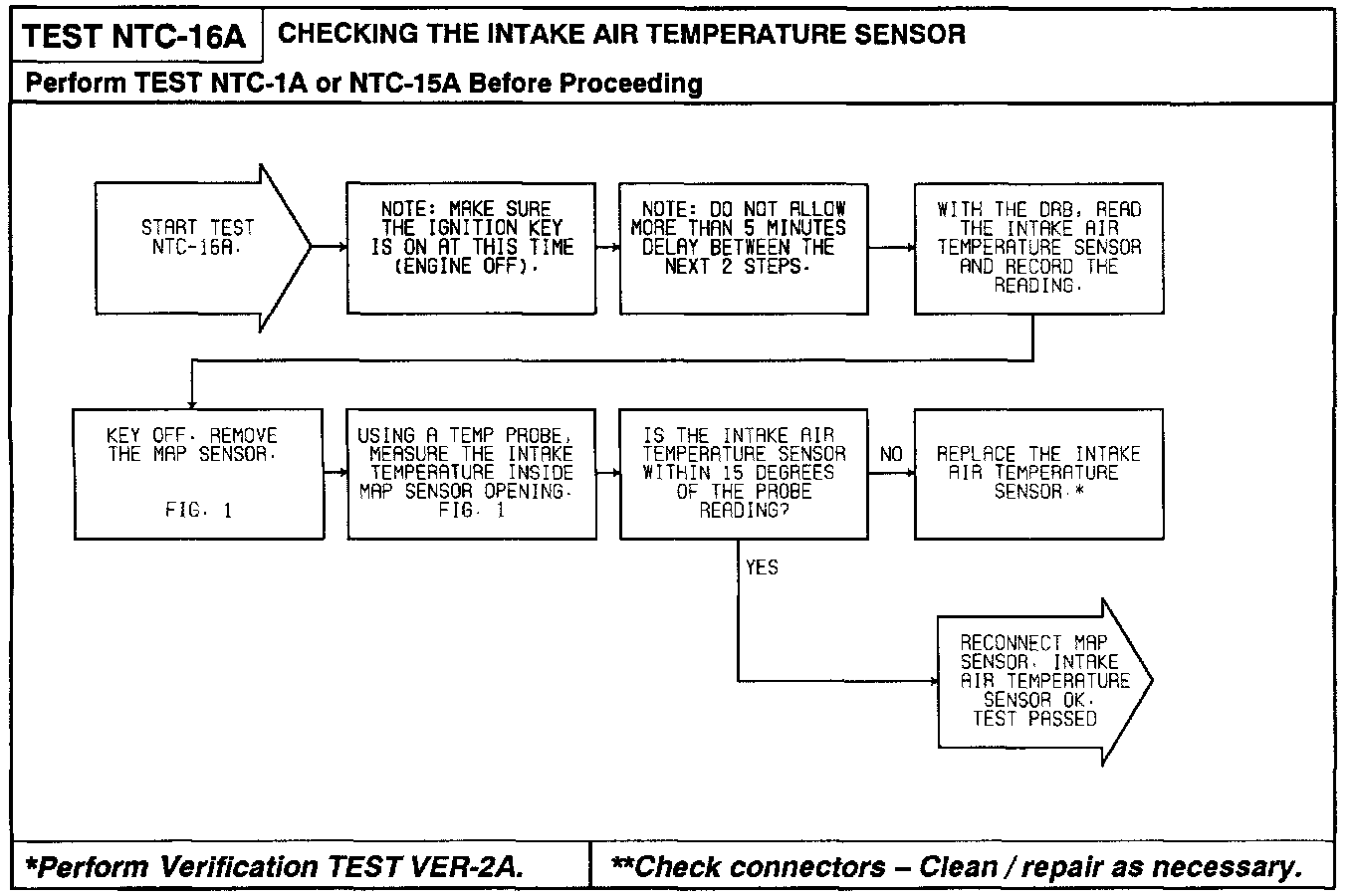

Diagnostic Chart:
