44 Ignition Coil and Power Transistor
44 Ignition Coil and Power Transistor

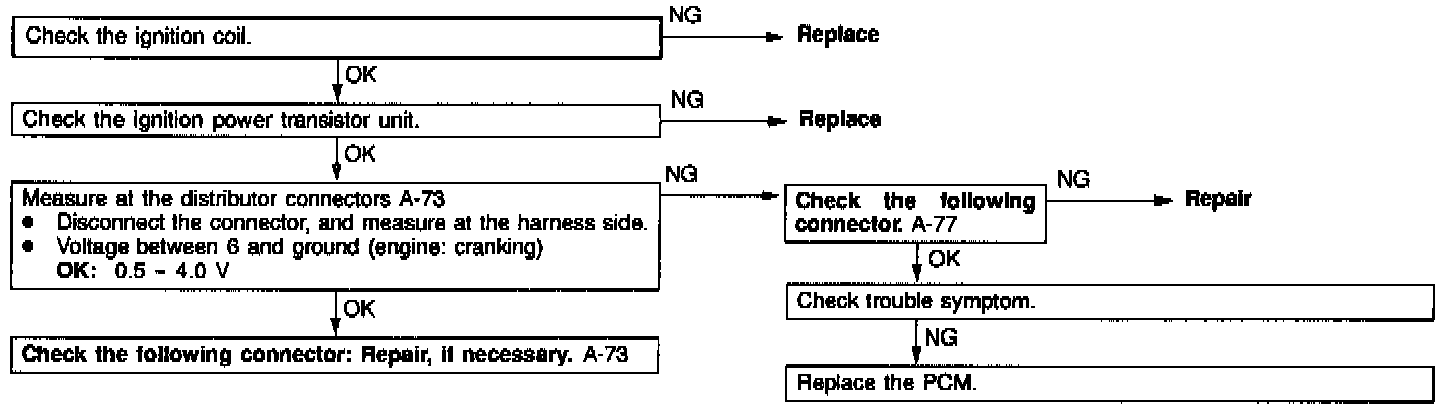

Diagnostic Chart:
Check the ignition coil and
ignition power transistor
unit circuit.
