Home
>>
Chrysler
>>
1995
>>
Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnosis By Symptom - Mitsubishi
>>
38 Fuel Pump Drive Control Circuit
38 Fuel Pump Drive Control Circuit

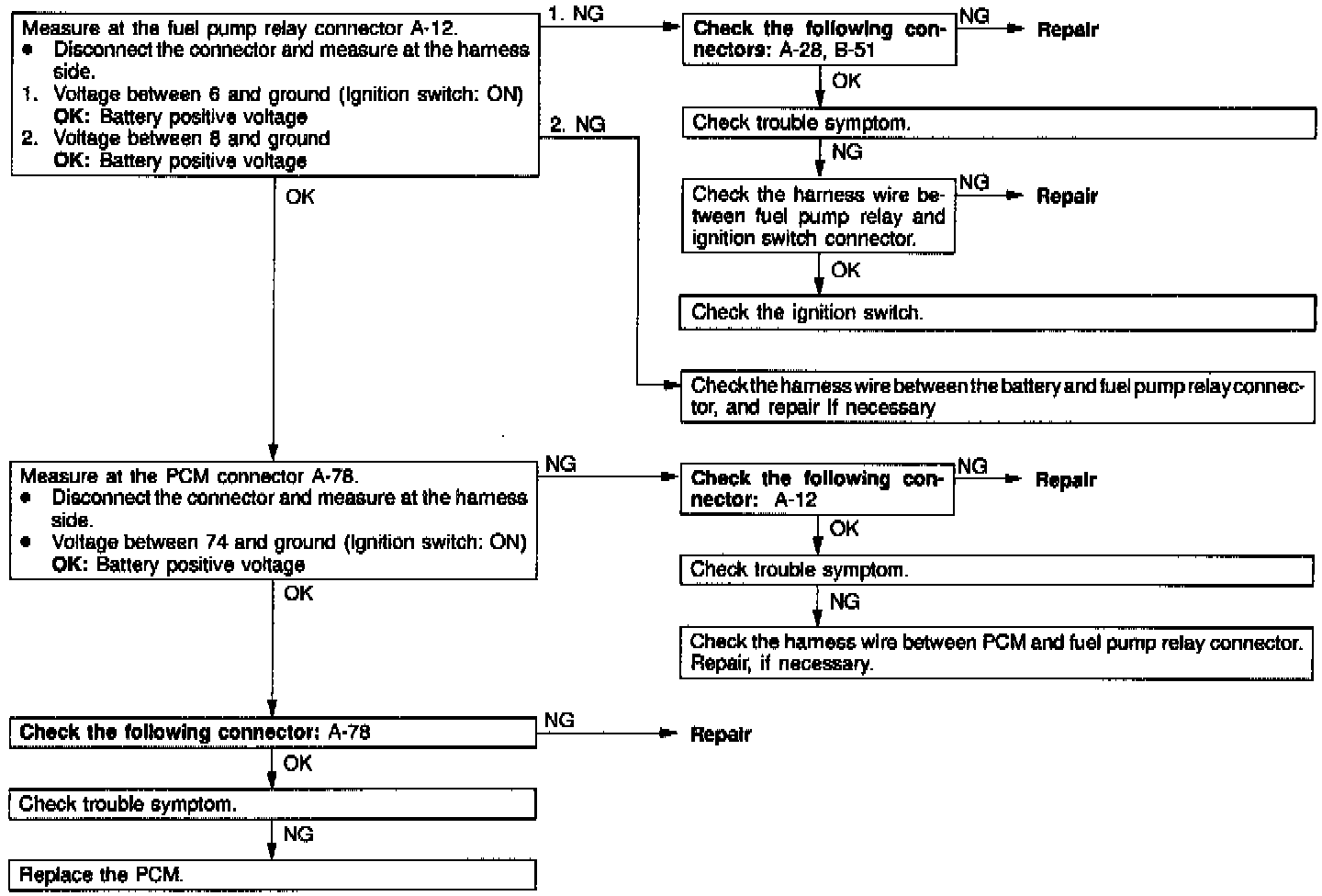

Diagnostic Chart:
Check the fuel pump drive control circuit.
