Chrysler
>>
1995
>>
Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

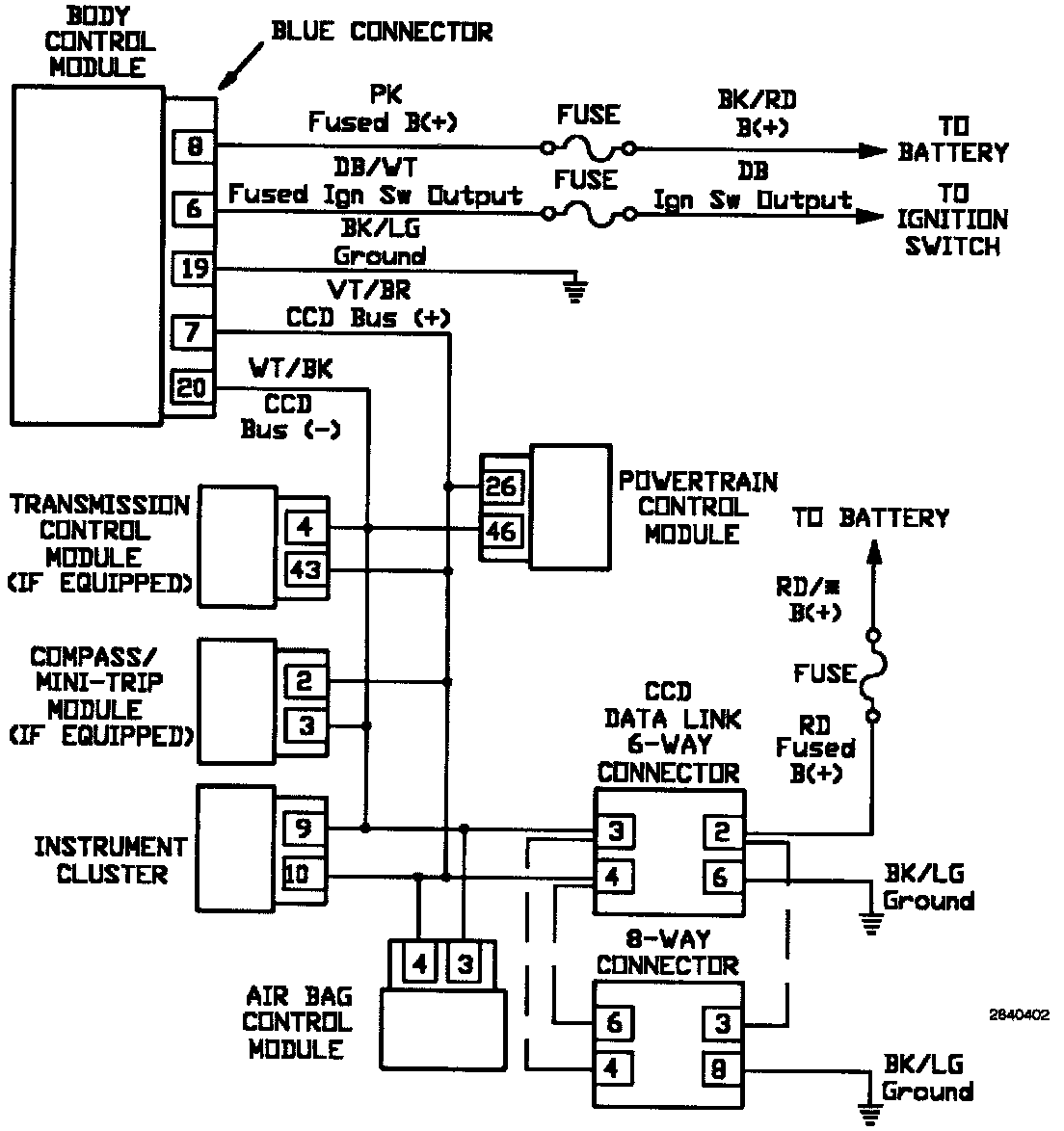

Information (CCD) Bus Circuit:

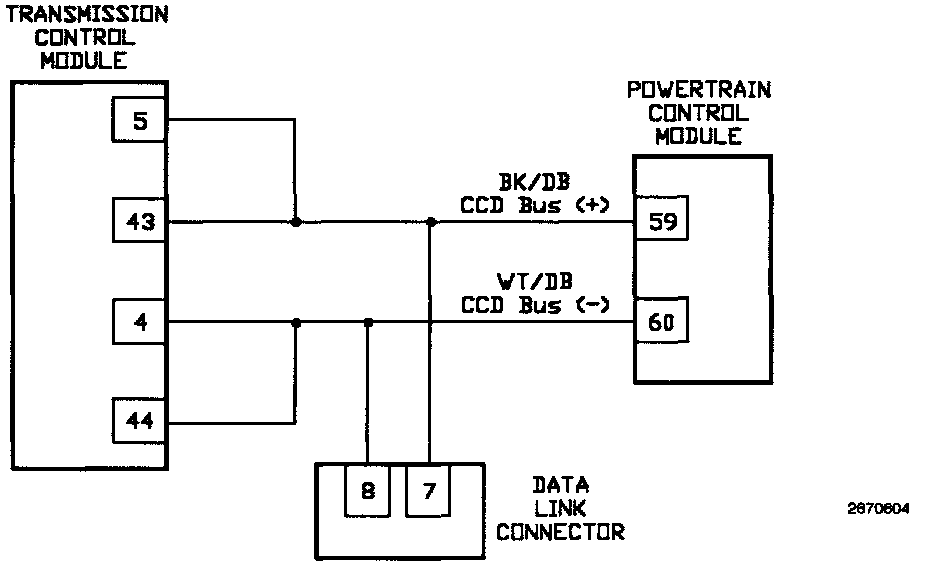

Information (CCD) Bus Circuit:
