Removal and Installation

NOTE: Prior to removing exhaust manifold disconnect battery ground cable.

REMOVAL

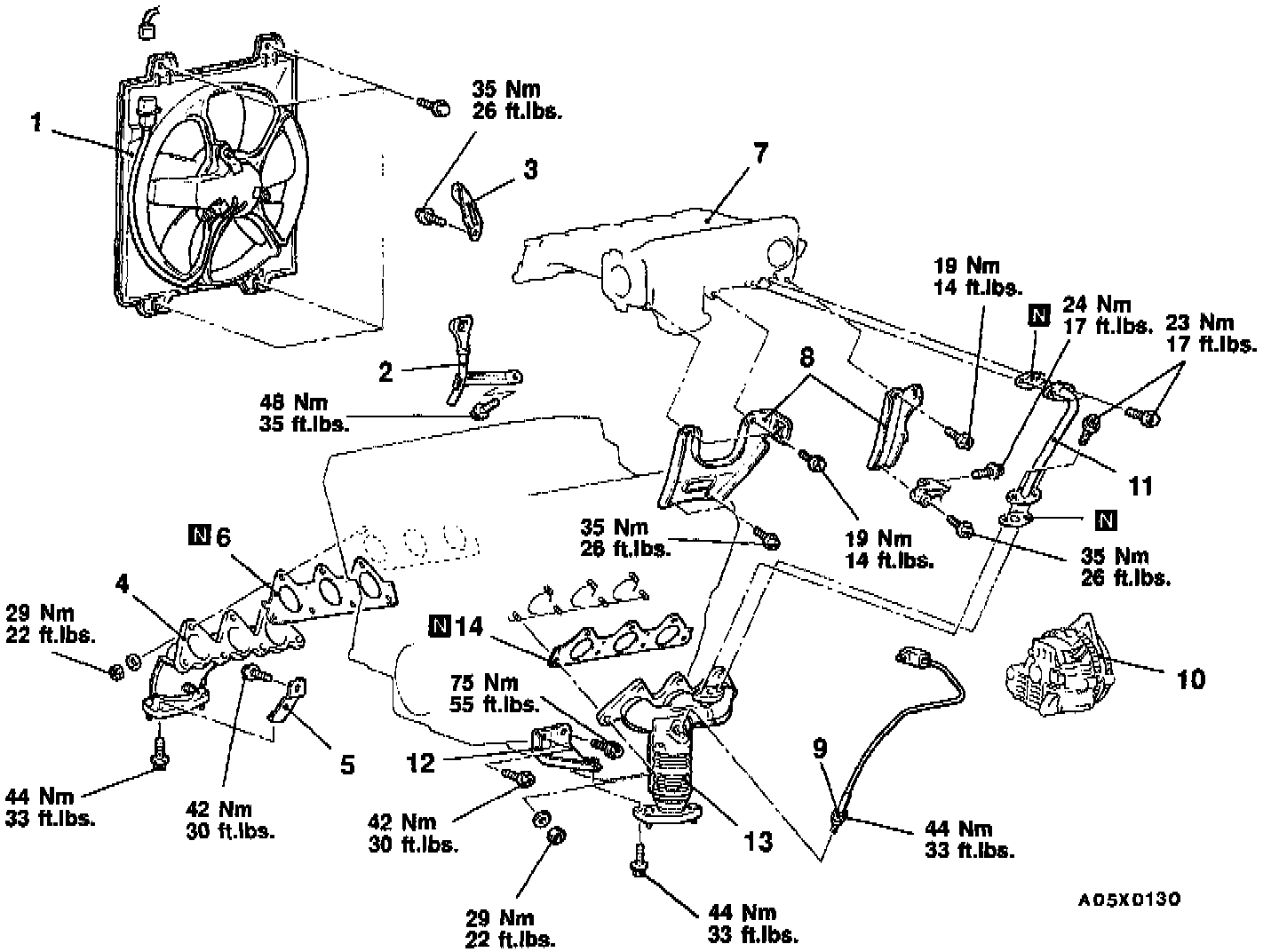

Front Bank Side
1. Condenser fan motor assembly
2. Dipstick guide assembly connection
3. Engine hanger
4. Exhaust manifold
5. Exhaust manifold stay
6. Exhaust manifold gasket

Rear Bank Side
7. Intake manifold plenum
8. Intake manifold plenum stay






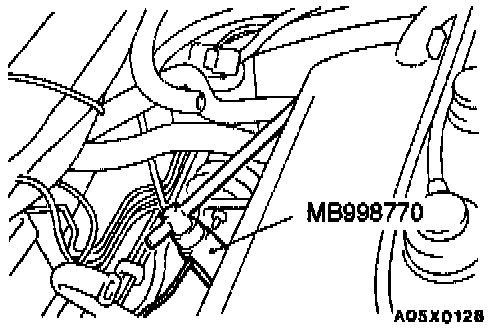

9. Heated oxygen sensor
10. Generator
11. EGR pipe assembly
12. Exhaust manifold stay
13. Exhaust manifold
14. Exhaust manifold gasket

INSTALLATION
Reverse procedure to install.
