Chrysler
>>
1995
>>
Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
System Diagram
>>
With Theft Alarm
>>
Automatic Transmission
Automatic Transmission

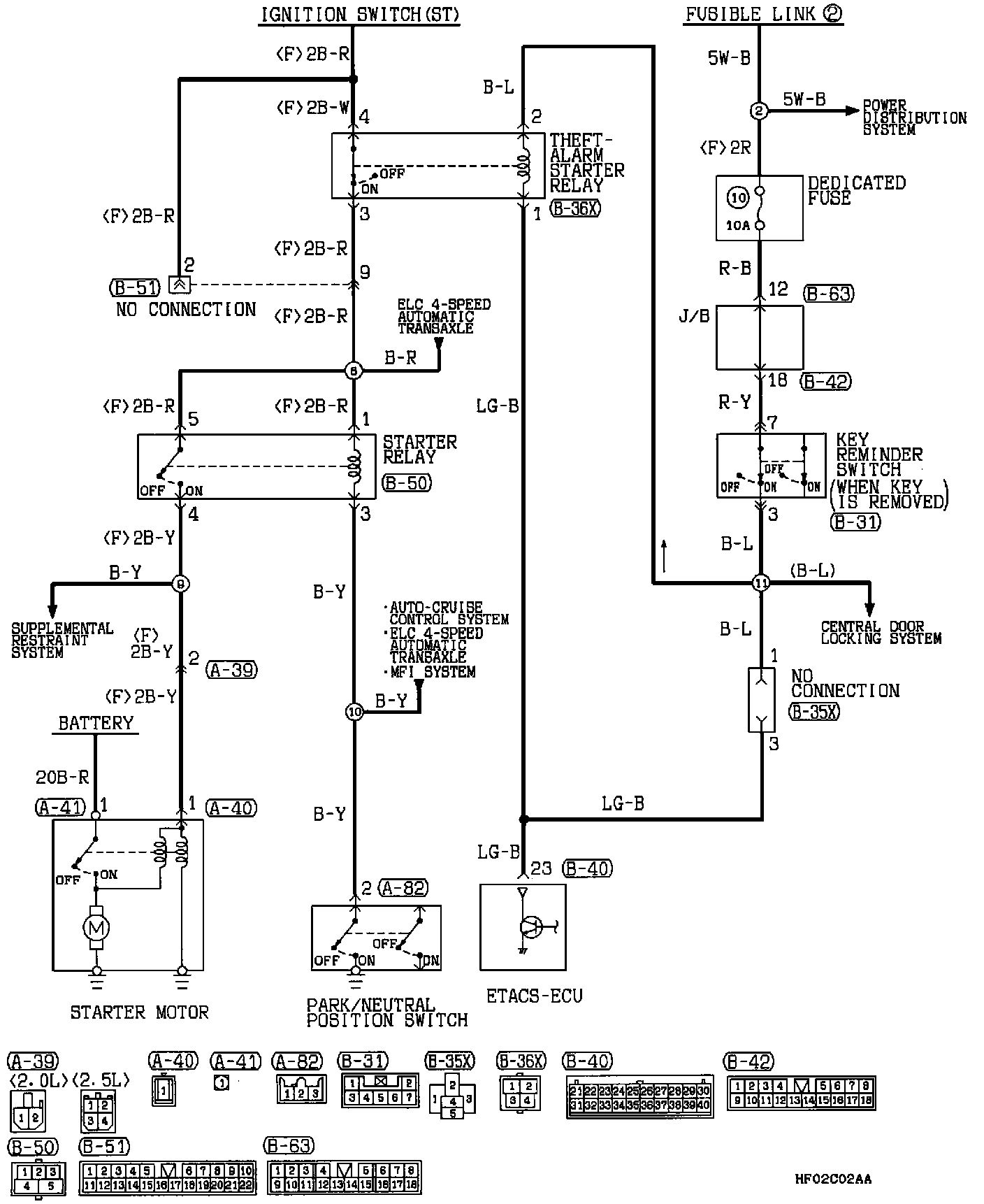

Troubleshooting Circuit Diagram:
