Ignition Key Hole Illumination Light Timer Circuit
Ignition Key Hole Illumination Light Timer Circuit

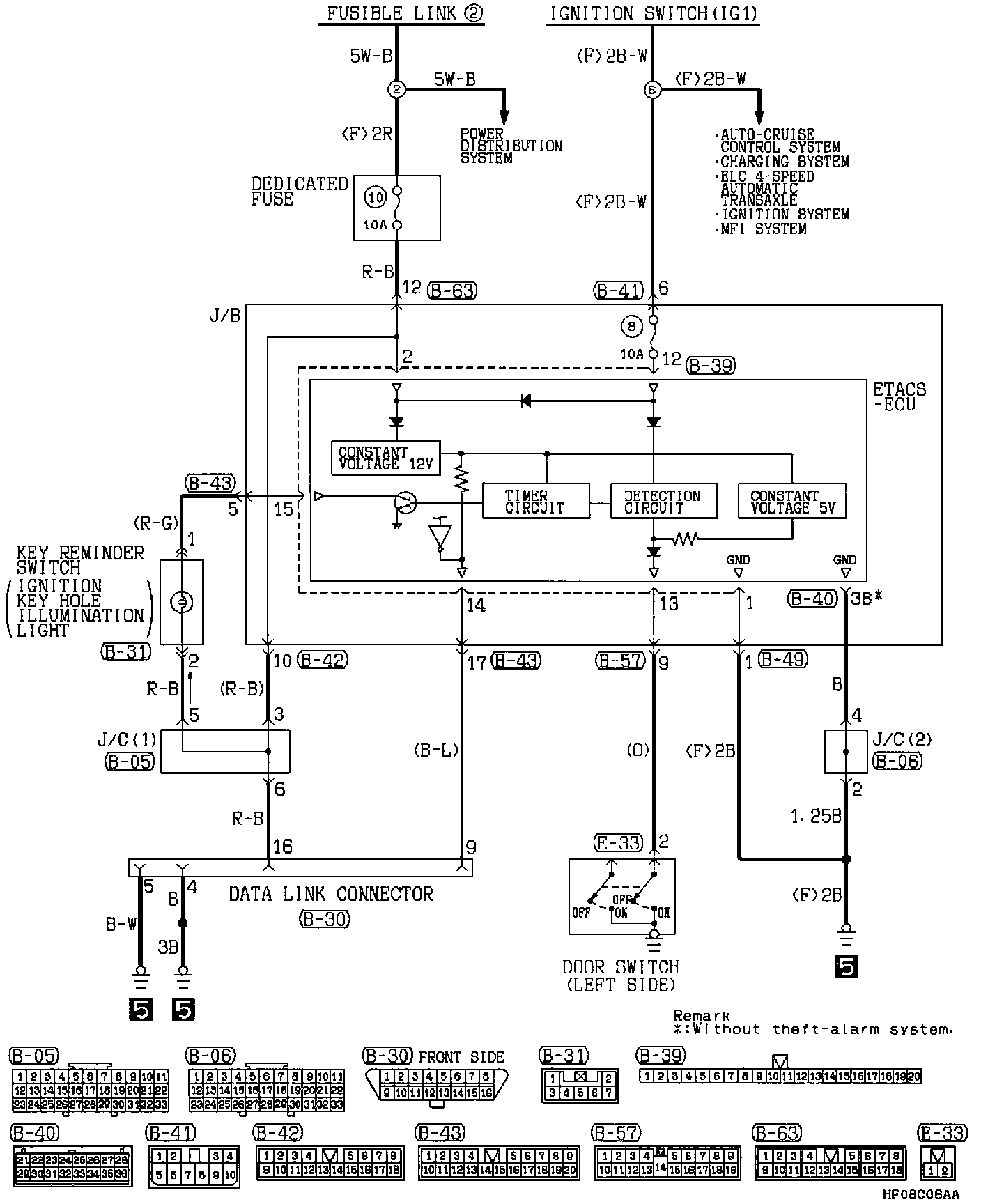

Ignition Key Hole Illumination Light Timer Circuit:
