Mitsu Ignition Stuff

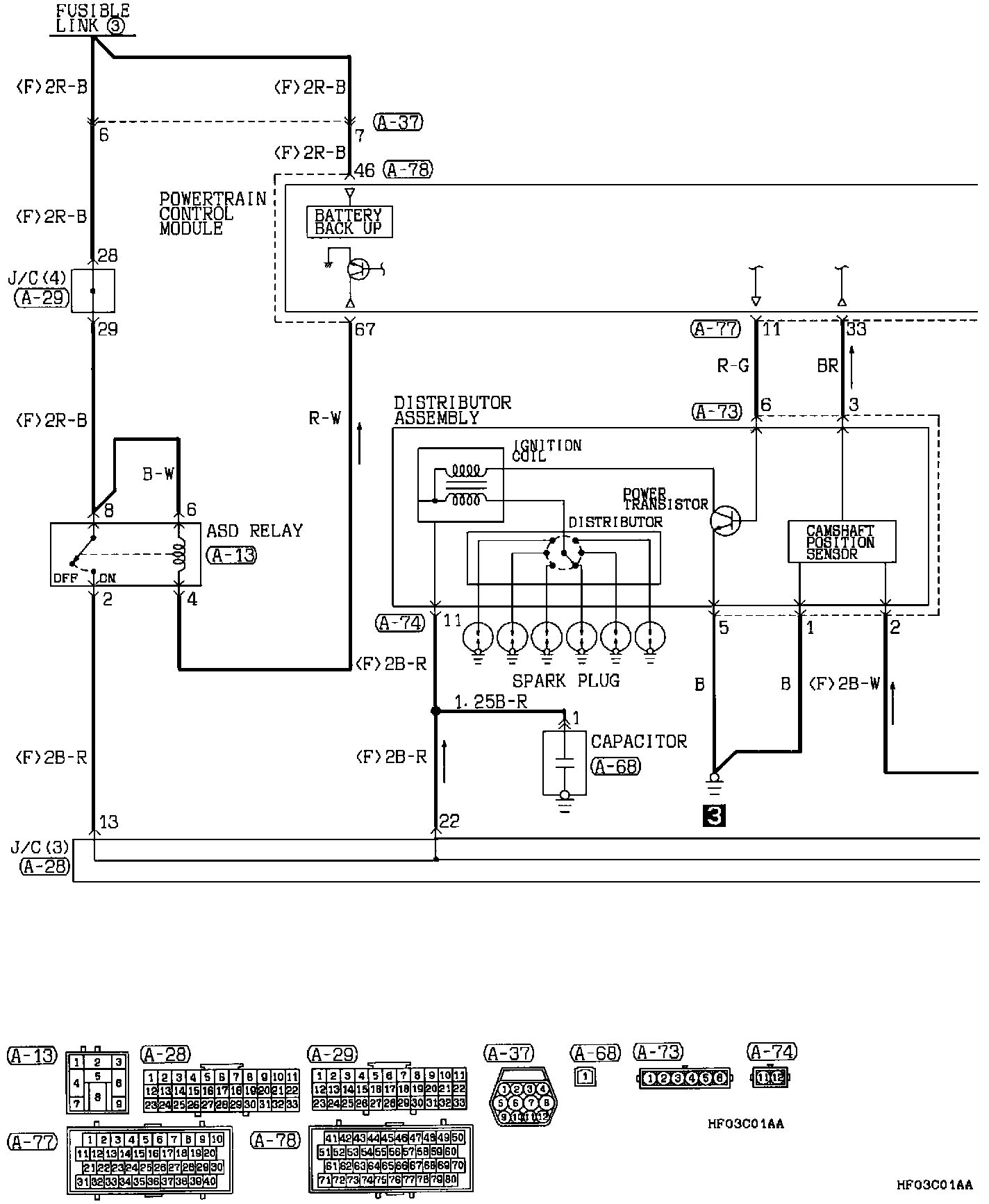

Ignition System Circuit Diagrams (Part 1 Of 2):



Ignition System Circuit Diagrams (Part 2 Of 2):
