Cooling System
>>
System Diagram
System Diagram

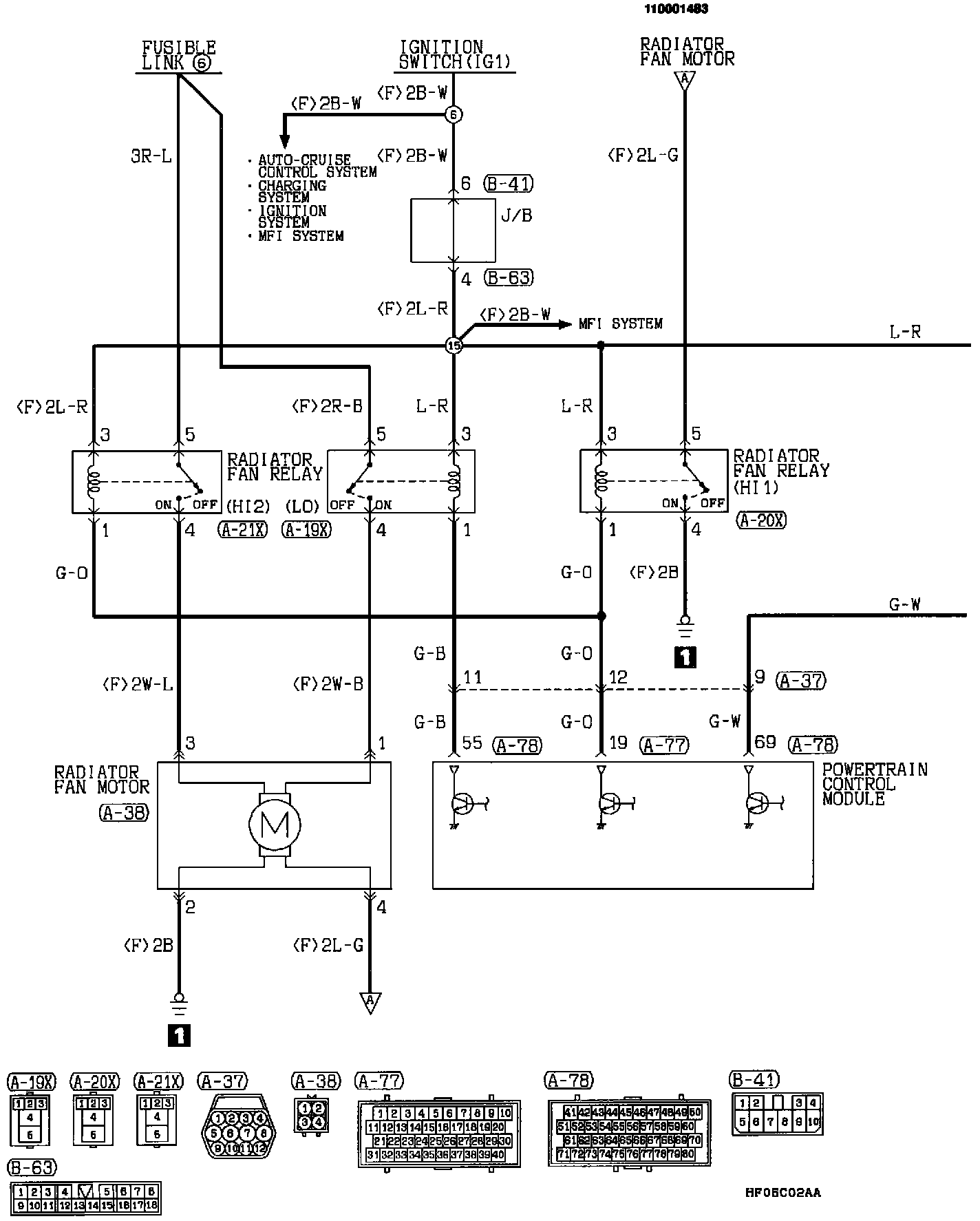

Cooling System Part 1 Of 3:

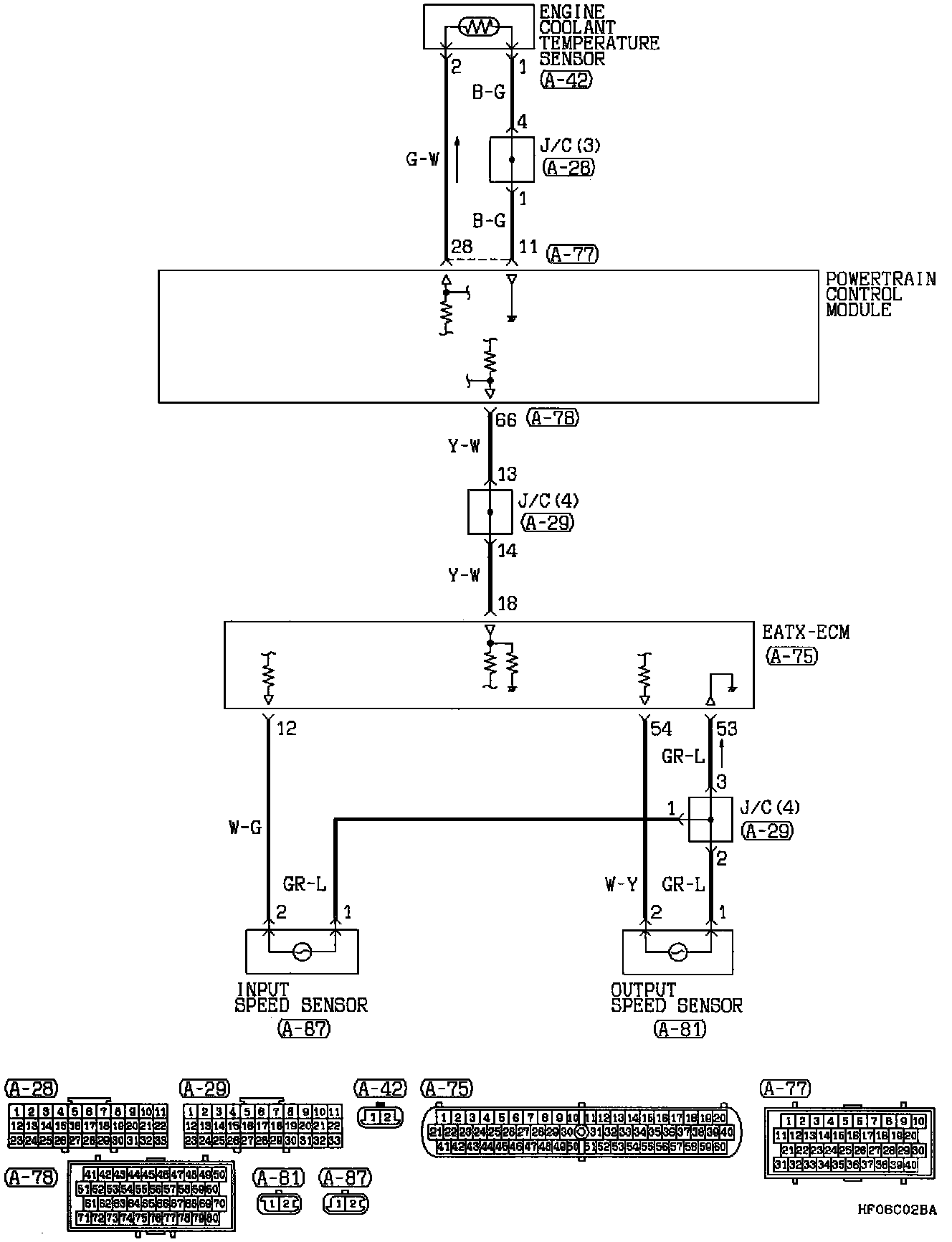

Cooling Fan Part 2 Of 3:

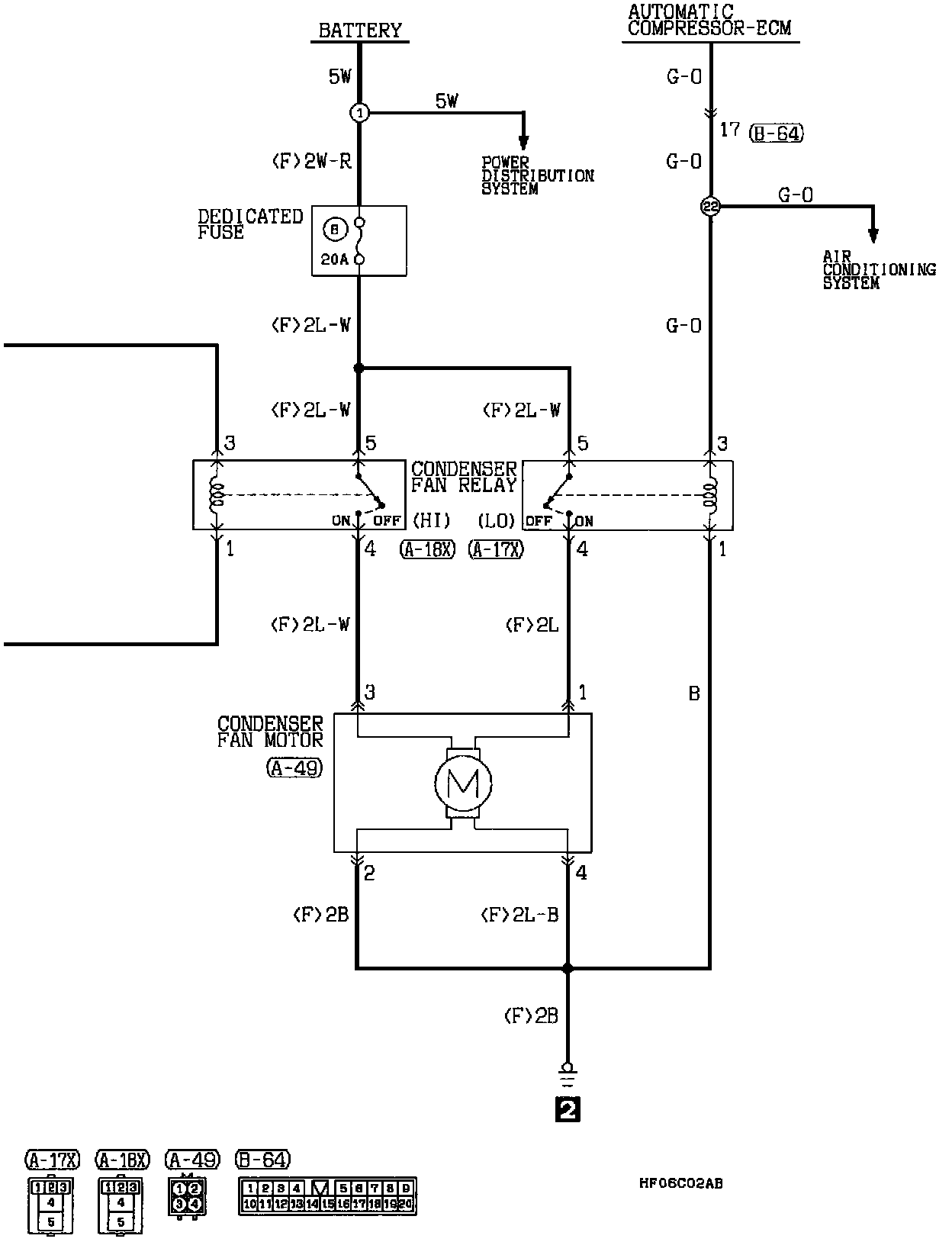

Cooling System Part 3 Of 3:
