Home
>>
Chrysler
>>
1995
>>
Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Fuel Injector
>>
Injector #2
Injector #2

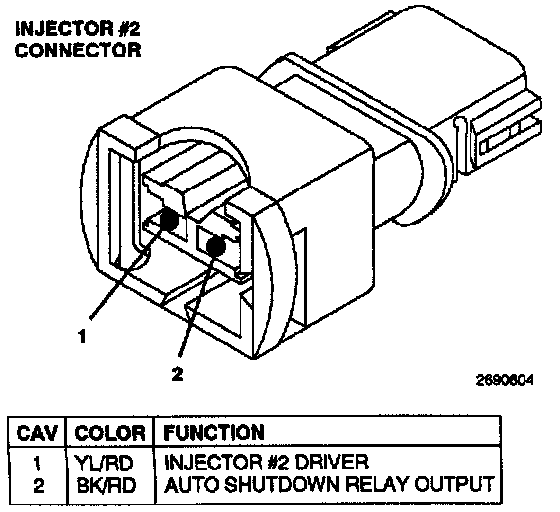

Fuel Injector #2 Connector:
