Home
>>
Chrysler
>>
1995
>>
Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relay Locations
>>
Centralized Relay
>>
Relay Box In Engine Compartment
Relay Box In Engine Compartment

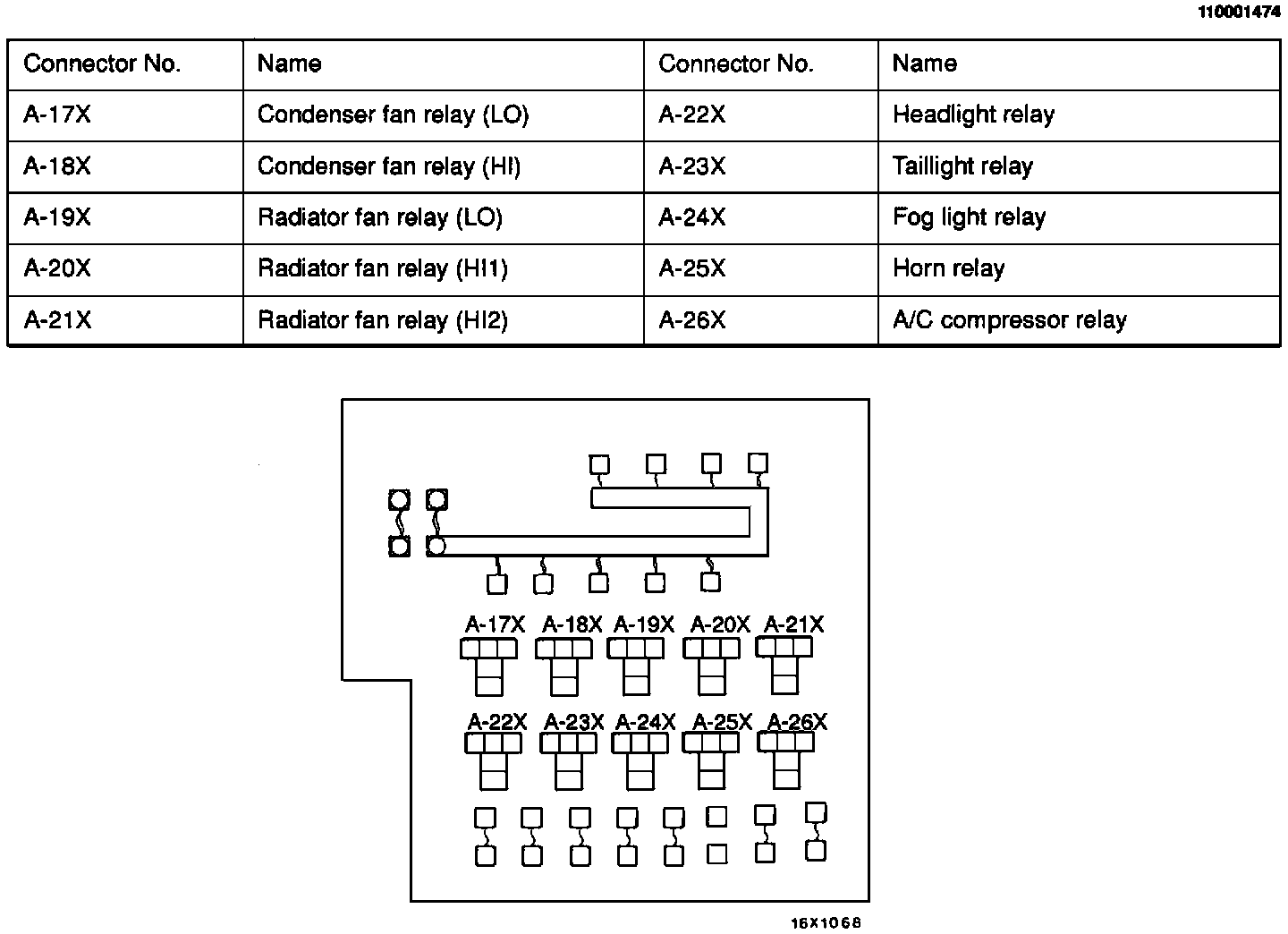

Centralized Relay (Relay Box In Engine Compartment):
