Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1995
>>
Sebring V6-2.5L VIN N
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
>>
Schematic Diagrams
Schematic Diagrams

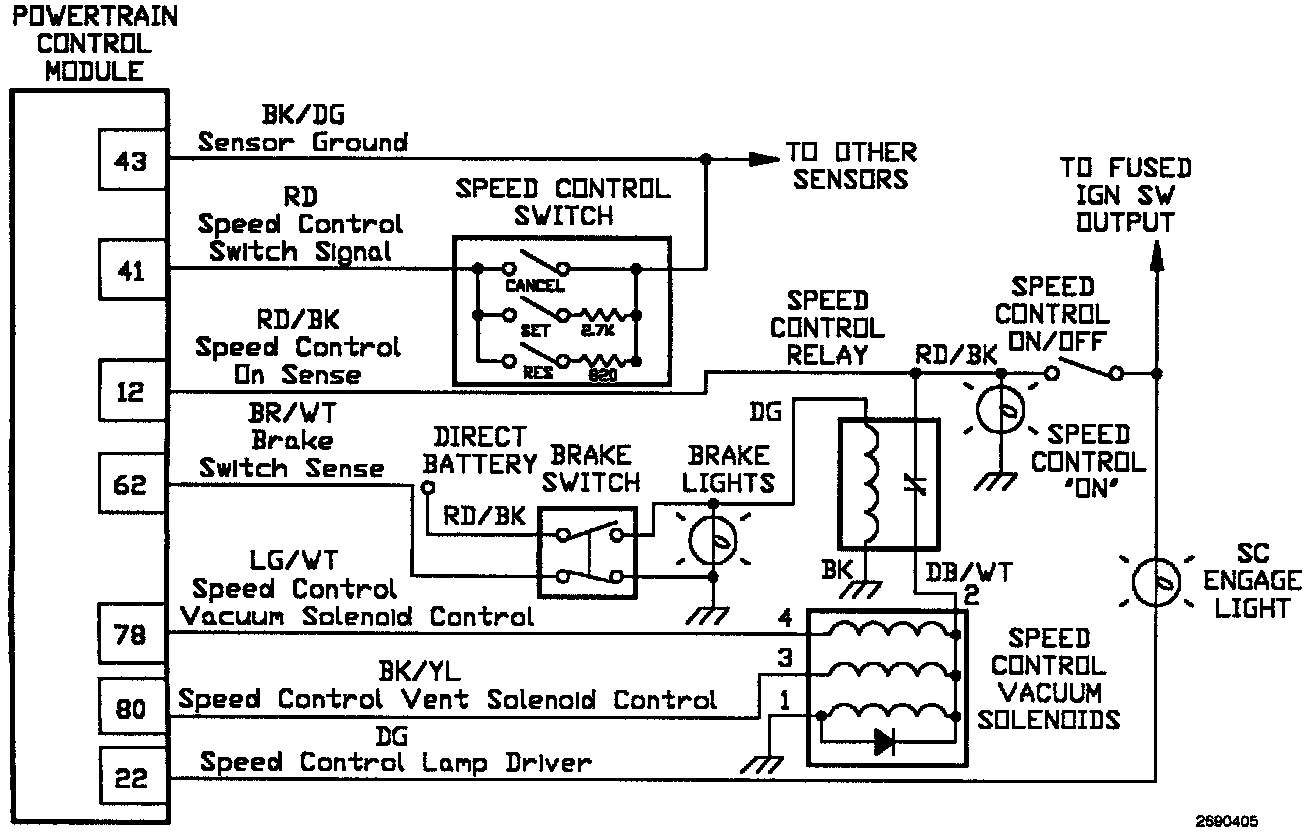

Speed Control Circuit:
