Antenna: Service and Repair

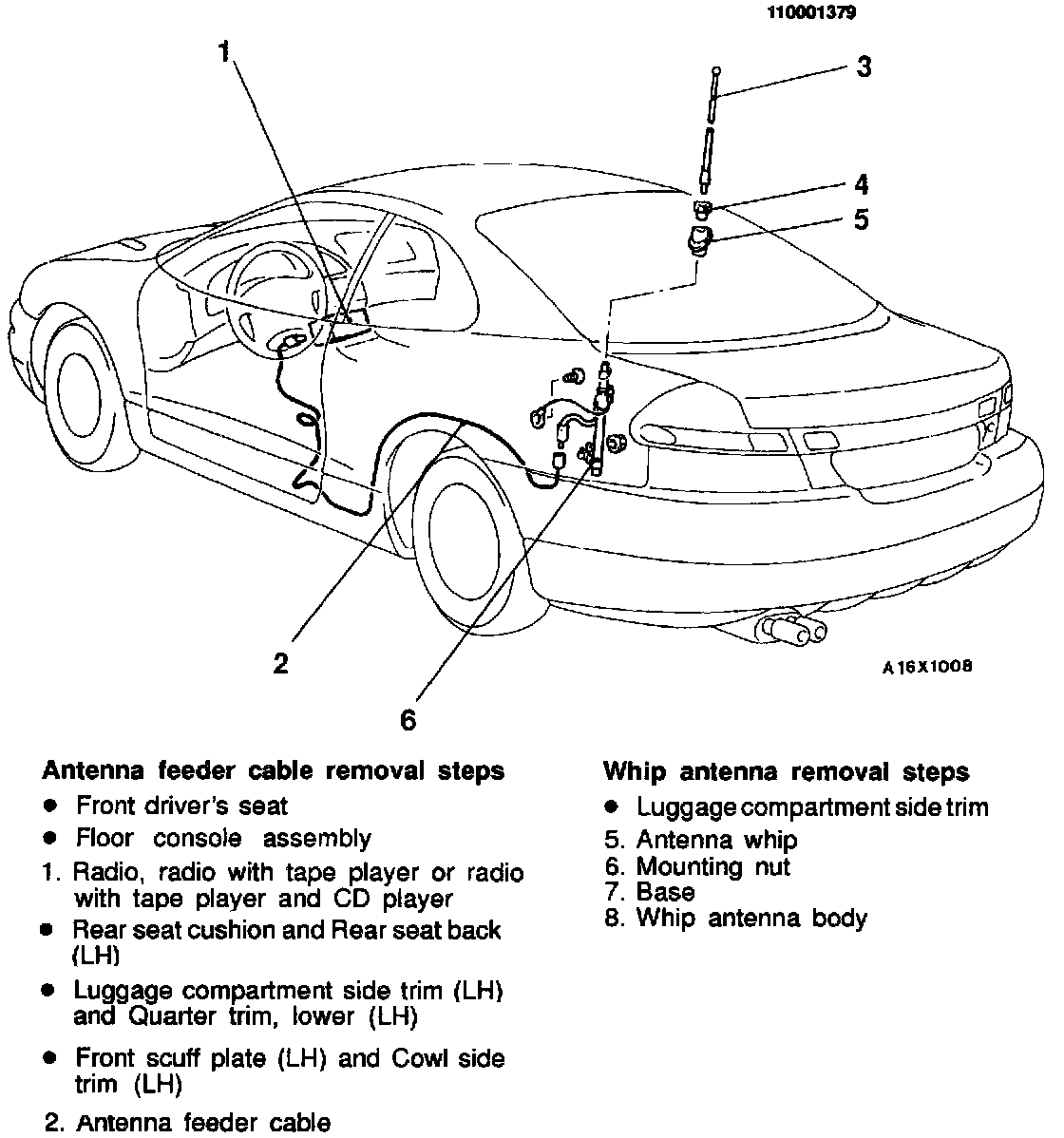

Antenna - Removal And Installation:

REMOVE
Antenna Feeder Cable
1. Front driver's seat
2. Floor console assembly
3. Radio, radio with tape player or radio with tape player and CD player
4. Rear seat cushion and Rear seat back LH)
5. Luggage compartment side trim (LH) and Quarter trim, lower (LH)
6. Front scuff plate (LH) and Cowl side trim (LH)
7. Antenna feeder cable

Whip Antenna
1. Luggage compartment side trim
2. Antenna whip
3. Mounting nut
4. Base
5. Whip antenna body

INSTALL
Antenna Feeder Cable
1. Antenna feeder cable
2. Front scuff plate (LH) and Cowl side trim (LH)
3. Luggage compartment side trim (LH) and Quarter trim, lower (LH)
4. Rear seat cushion and Rear seat back LH)
5. Radio, radio with tape player or radio with tape player and CD player
6. Floor console assembly
7. Front driver's seat

Whip Antenna
1. Whip antenna body
2. Base
3. Mounting nut
4. Antenna whip
5. Luggage compartment side trim
