Fuel Pressure Regulator: Locations

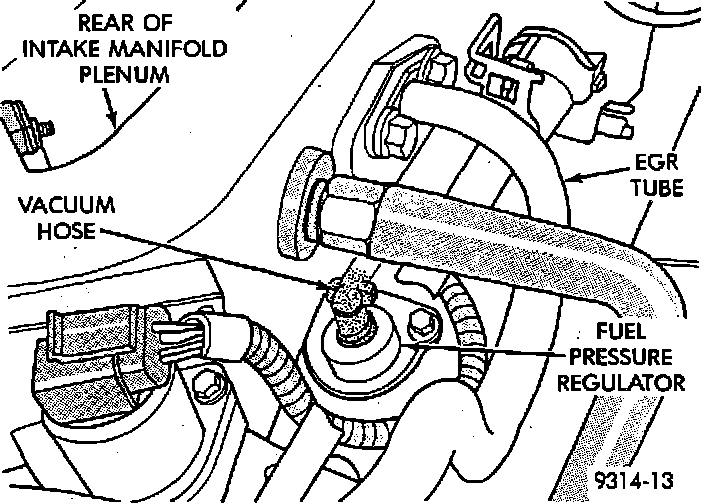

Fuel Pressure Regulator 3.5L:

The fuel pressure regulator is mounted on the fuel rail, near the right rear corner of the intake manifold.
