Home >> Chrysler >> 1995 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Daytime Running Lamp Control Unit >> Diagrams

Daytime Running Lamp Control Unit: Diagrams

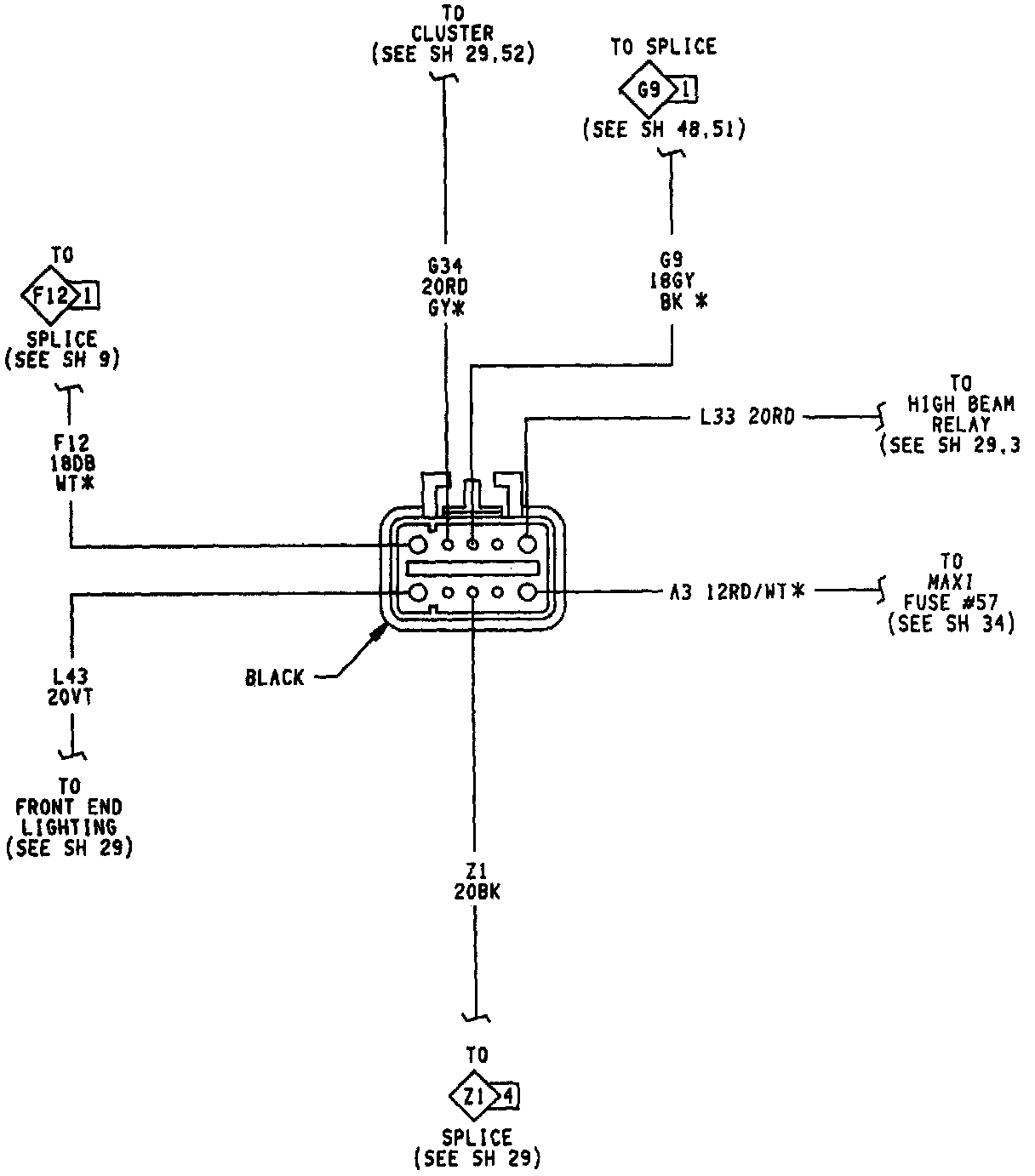

Daytime Running Lamps Module Connector:
