Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Data Link Connector
>>
Body Control Module Diagnostic Connector
Body Control Module Diagnostic Connector

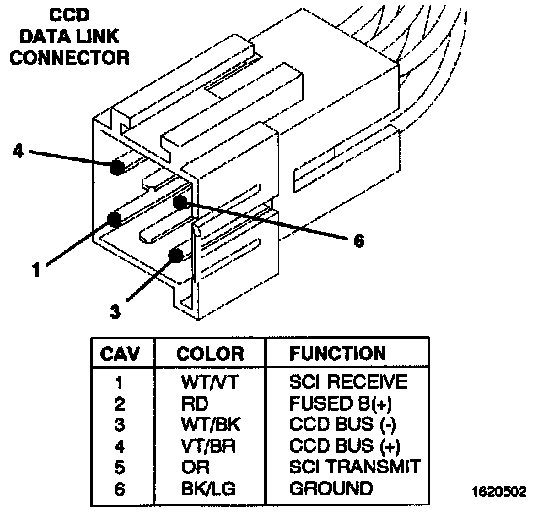

CCD Data Link Connector:
