Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Entry Module
>>
Black Connector
Black Connector

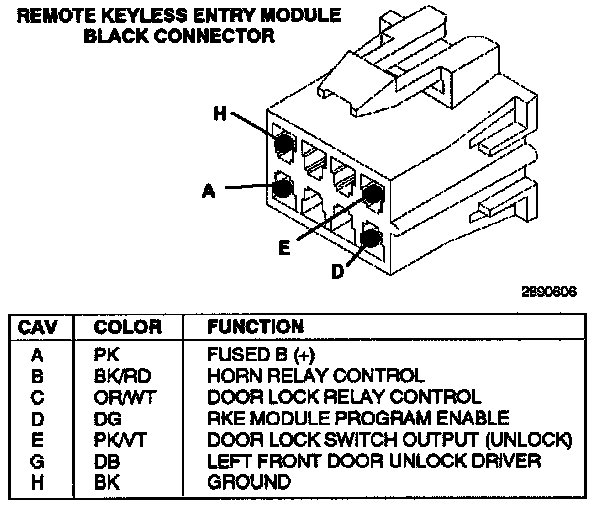

Remote Keyless Entry Module Black Connector:
