Home
>>
Chrysler
>>
1995
>>
Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>

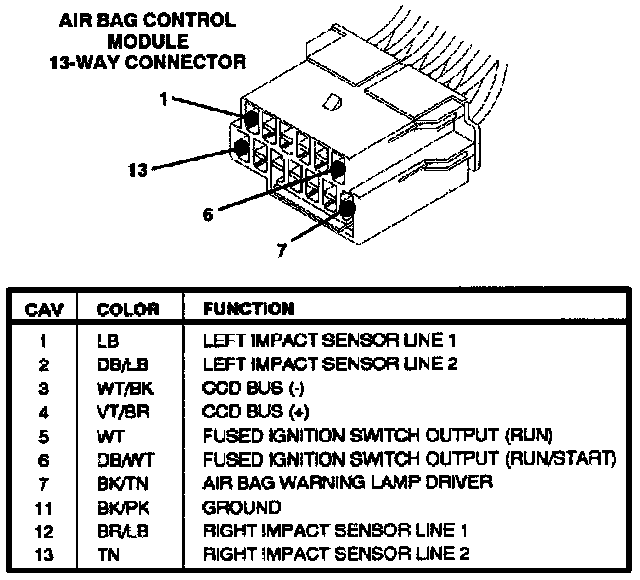

Air Bag Control Module 13 Way Connector
Air Bag Control Module 13 Way Connector
Air Bag Control Module:
