Chrysler
>>
1995
>>
Cirrus V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>

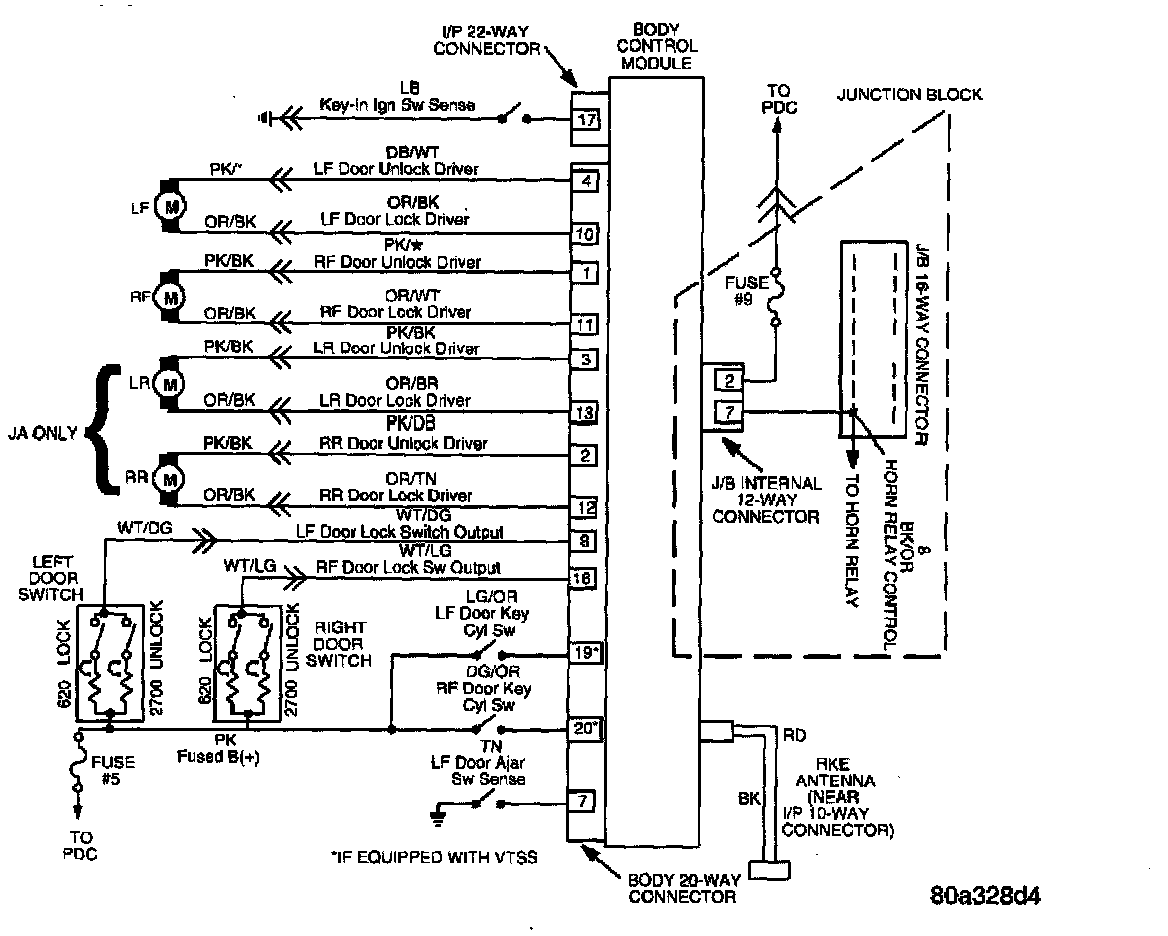

Schematic
>>
With Remote Keyless Entry
With Remote Keyless Entry
