Home
>>
Chrysler
>>
1995
>>
Cirrus V6-2.5L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Complete Body and Chassis Connector Views
>>
Sheet 8W-80-42
Sheet 8W-80-42

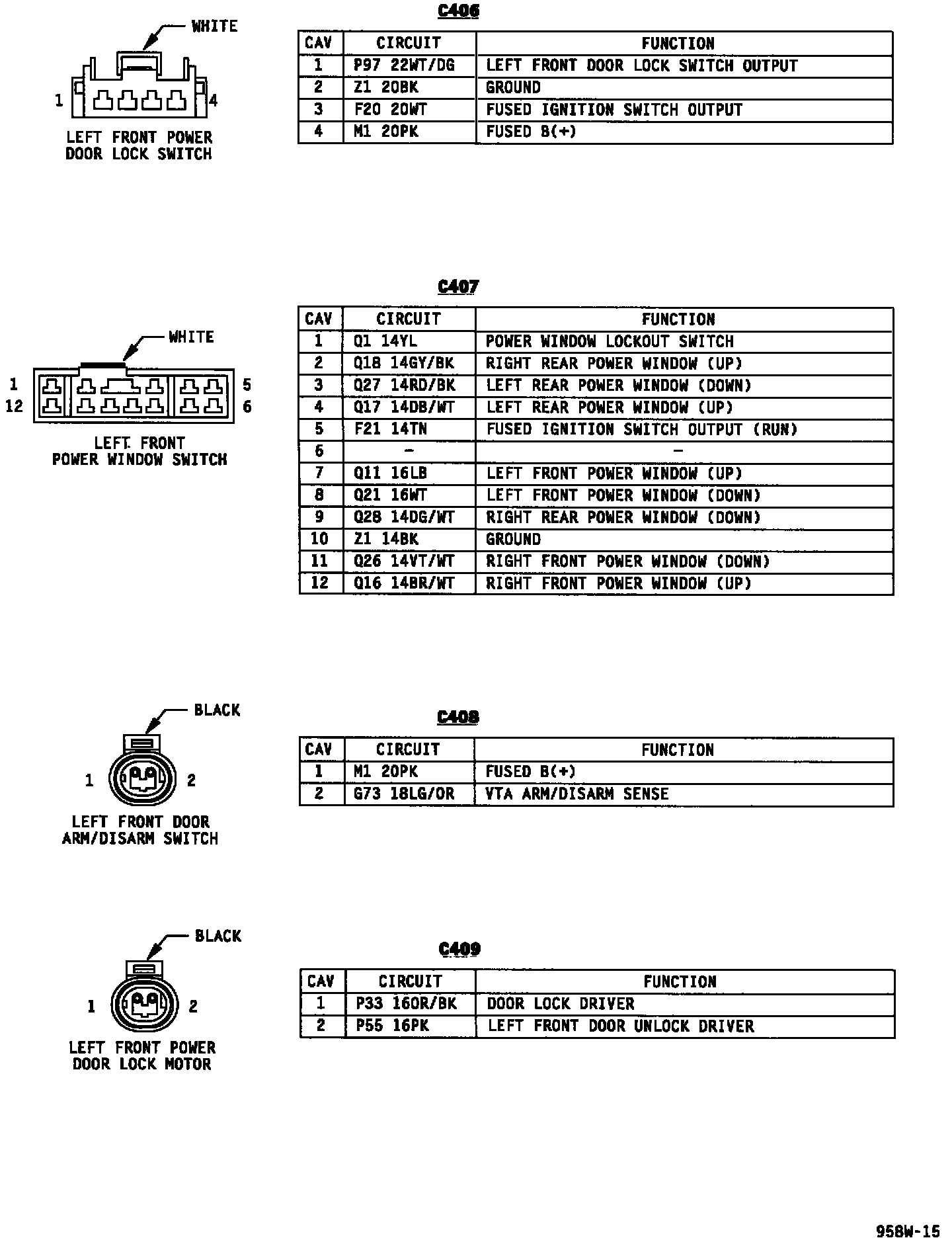

Connector Pin Outs (Part 40 Of 44):
