Connector Views
>>
Complete Body and Chassis Connector Views
>>
Sheet 8W-80-25
Sheet 8W-80-25

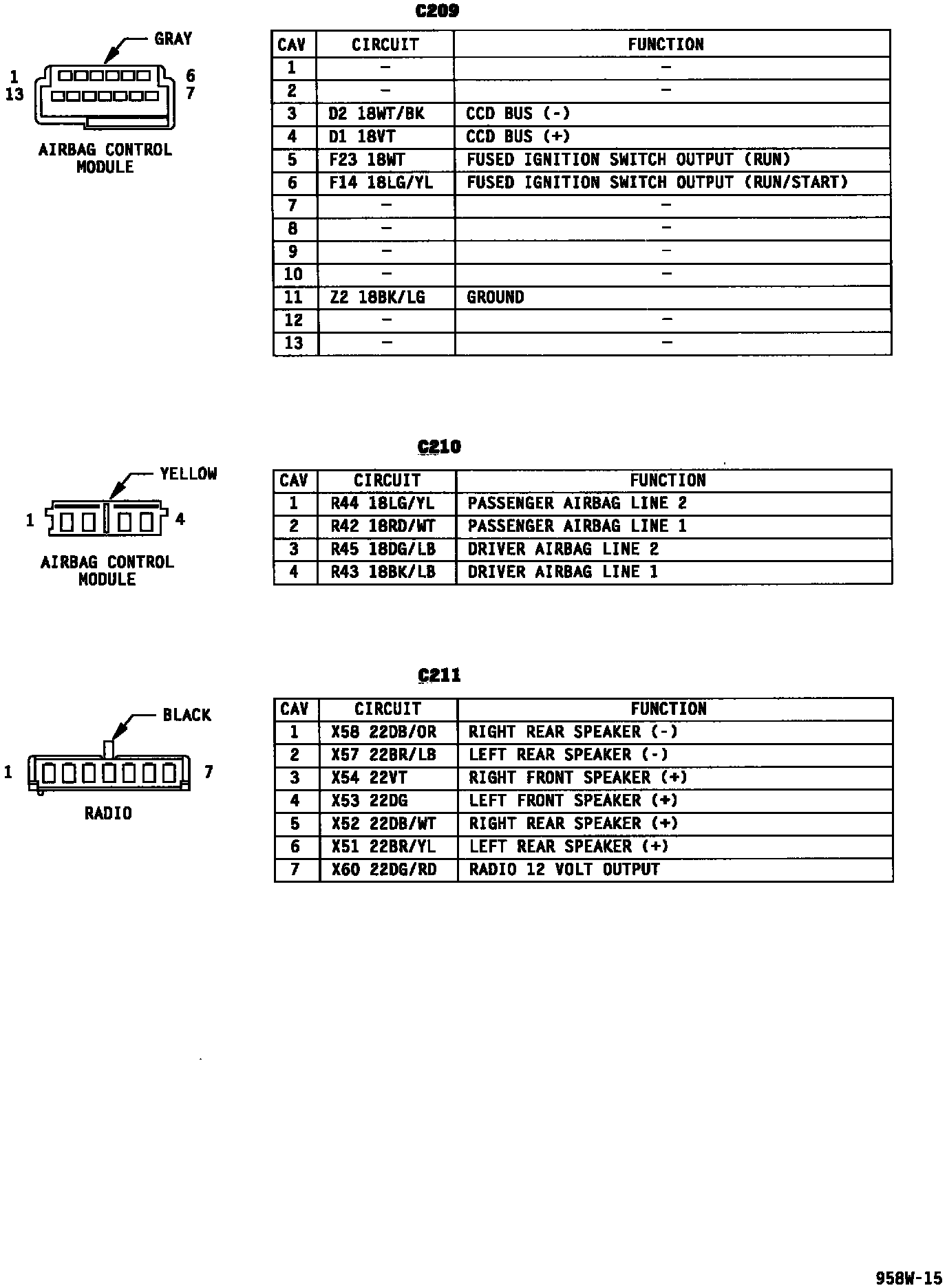

Connector Pin Outs (Part 23 Of 44):
