Chrysler
>>
1991
>>
New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Connector Views
>>

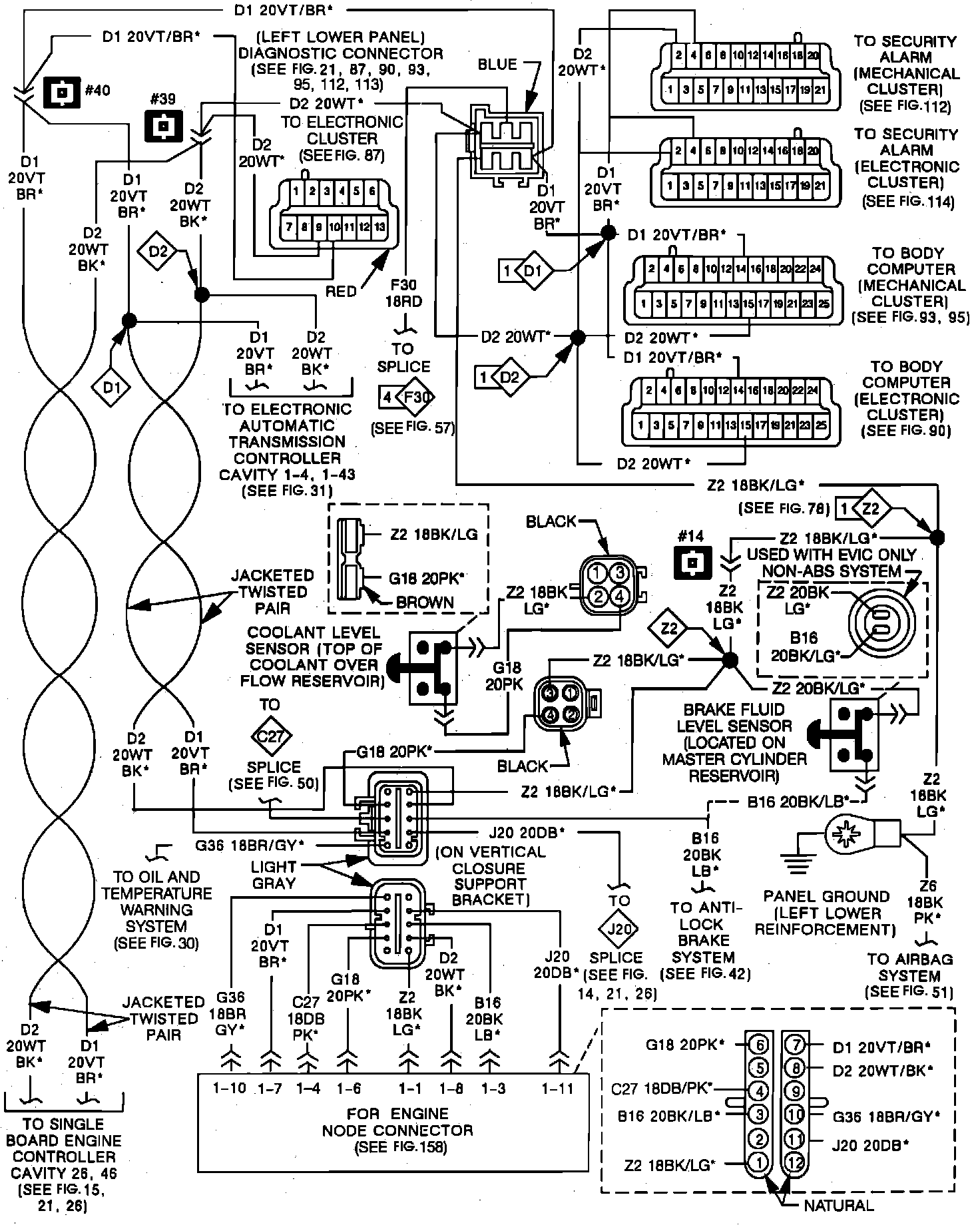

Engine Compartment Sensor Connectors
Engine Compartment Sensor Connectors
Electric Vehicle Information Center & Engine Compartment Sensors:
