Engine Control Module
Engine Control Module

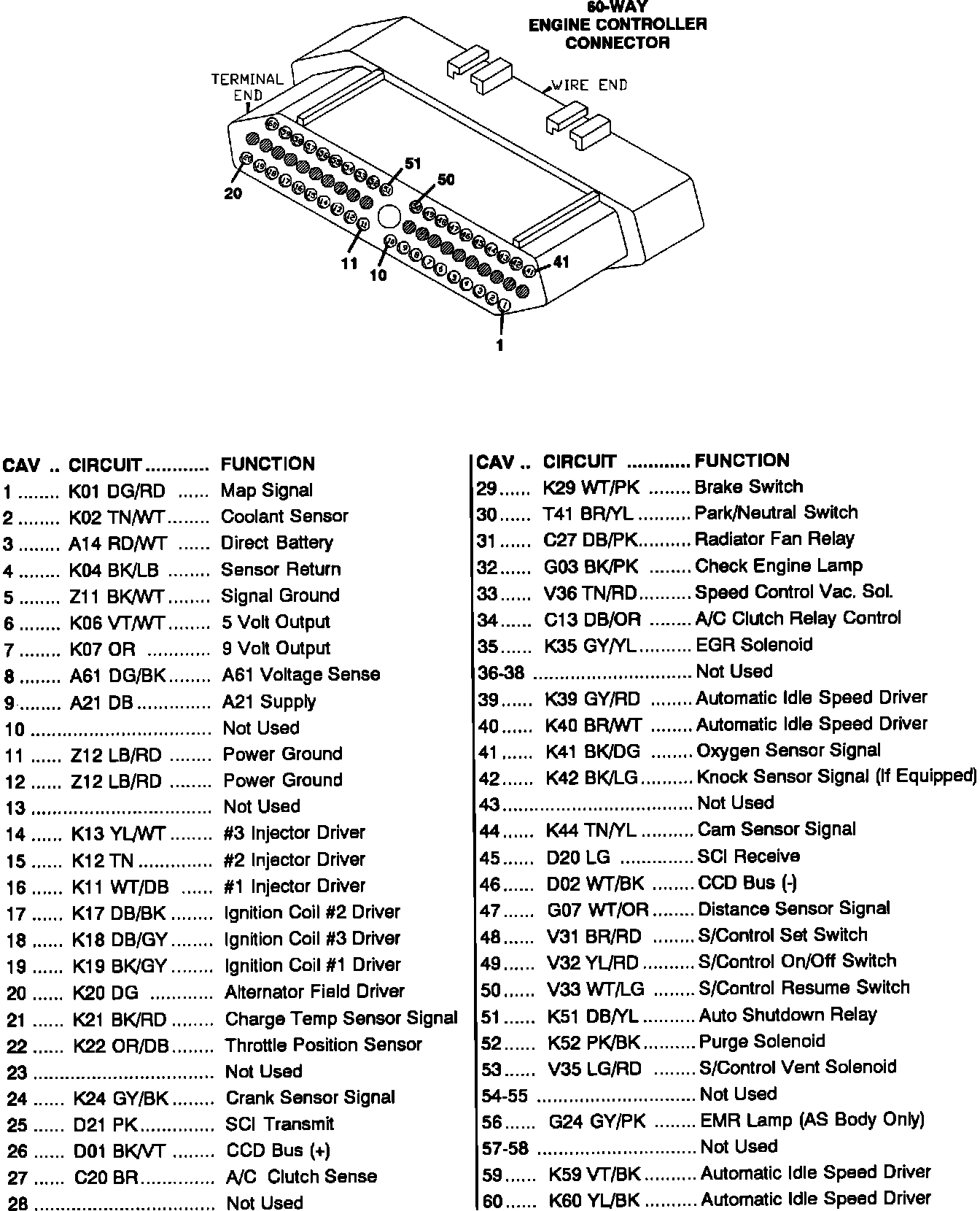

60-Way Connector Pinout Identification:
Single Board Engine Controller Connector:
