Connector Views

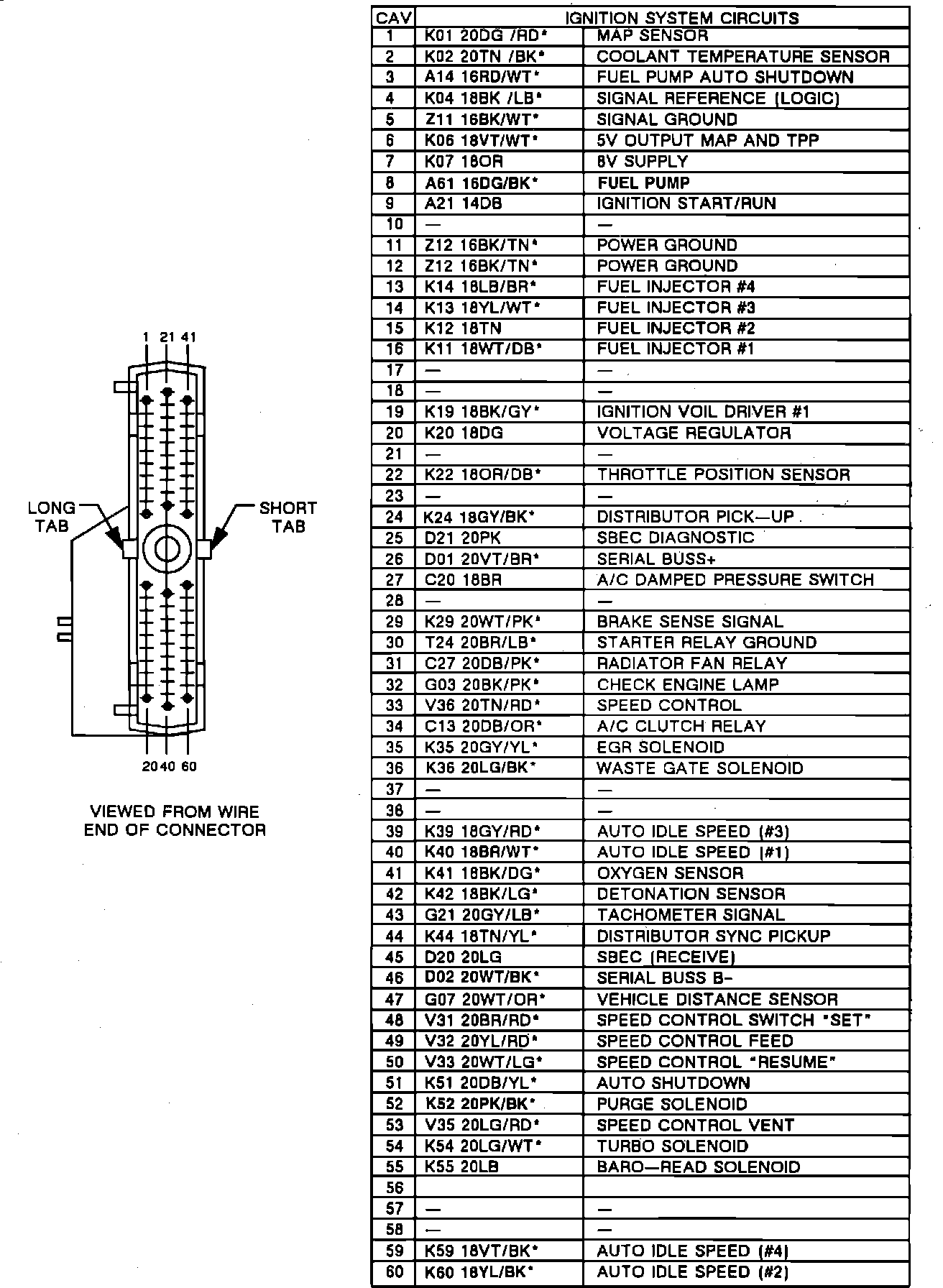

60-Way Connector Pinout Identification:



Turbocharged Electronic Fuel Injection Single Board Engine Controller:
