Chrysler
>>
1991
>>
Lebaron Convertible L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Connector Views
>>
Instrument Panel
>>
Part 2 of 4
Part 2 of 4

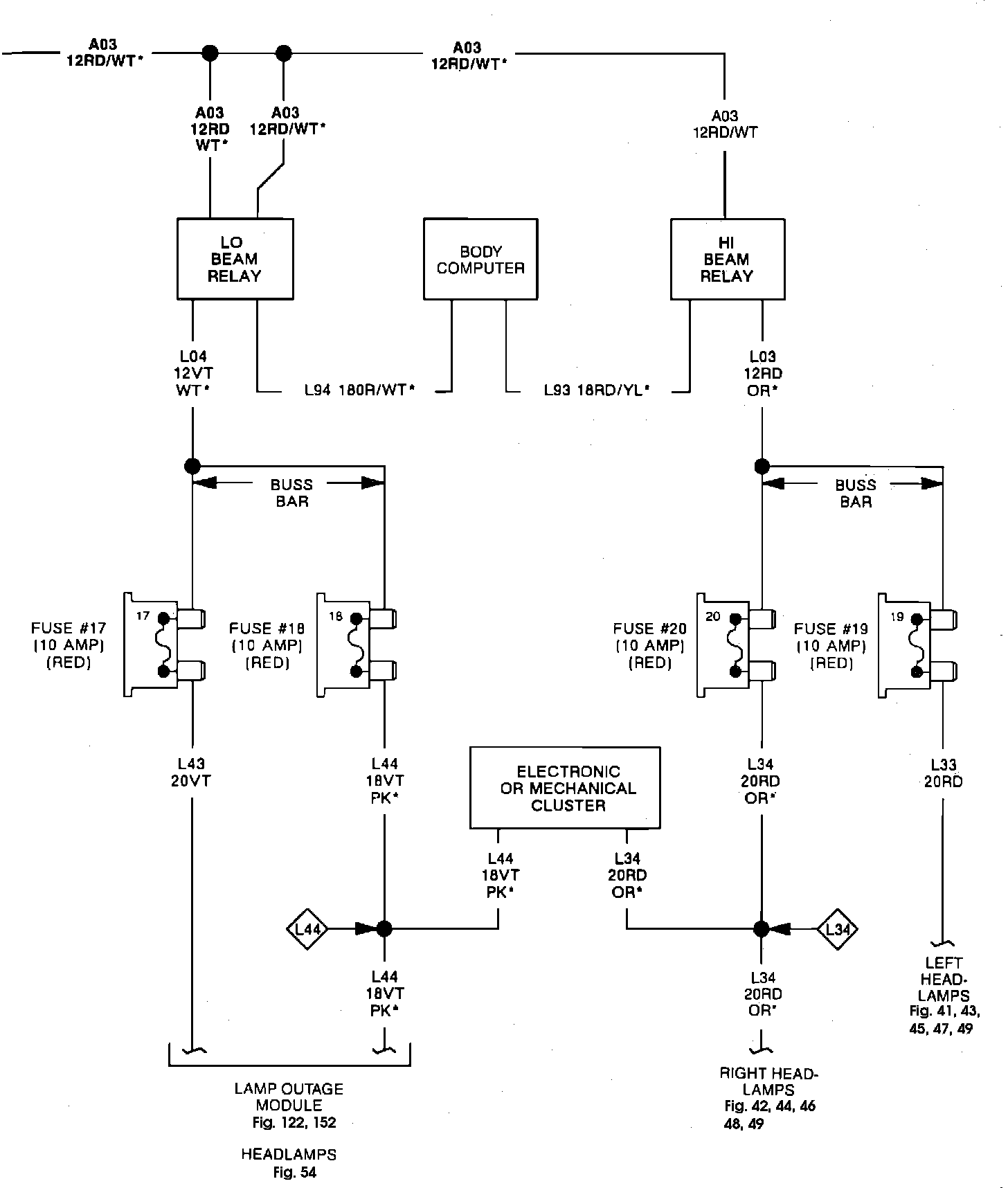

Instrument Panel Fuse Application Chart:
