Lebaron Convertible L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
Seats

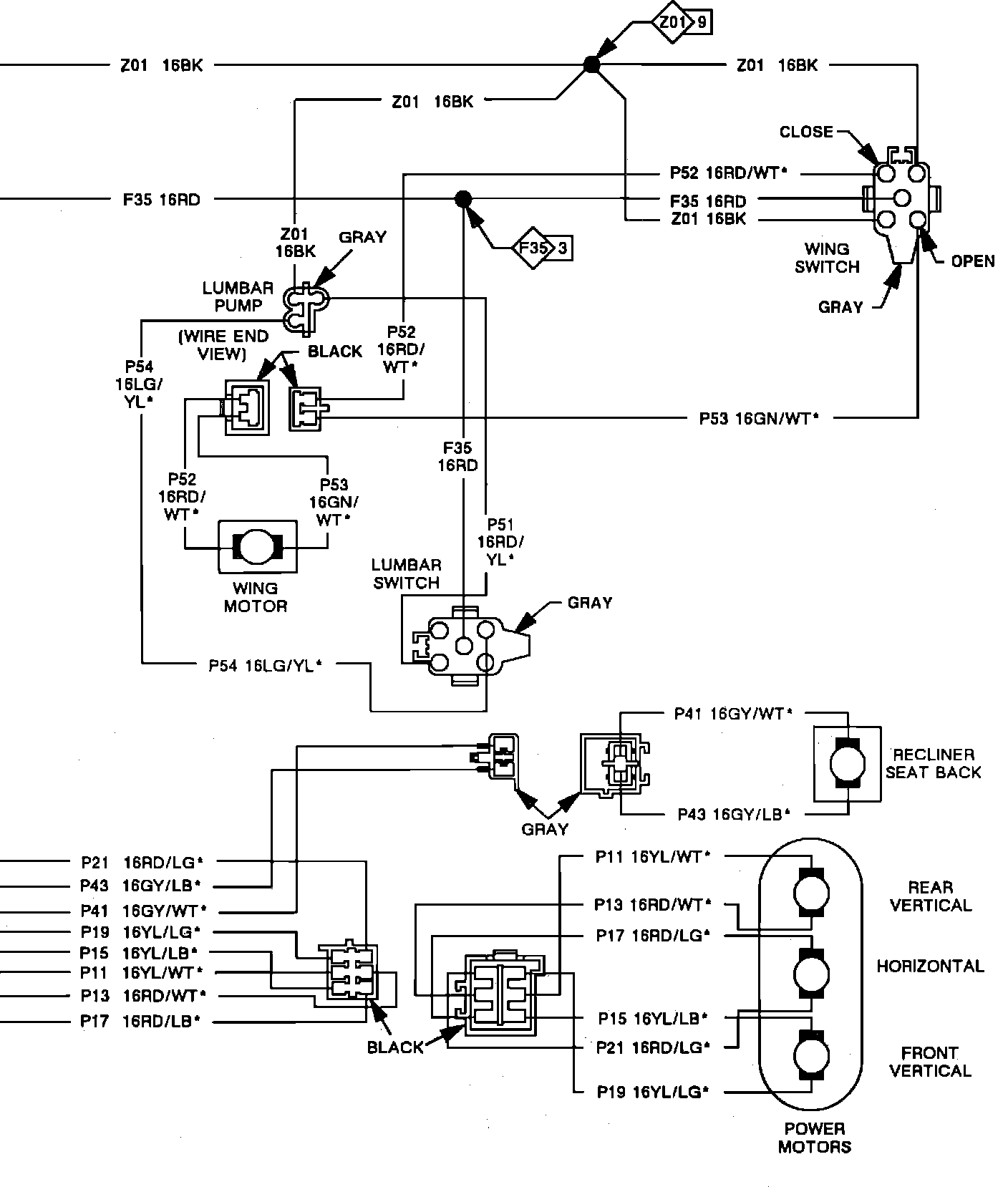

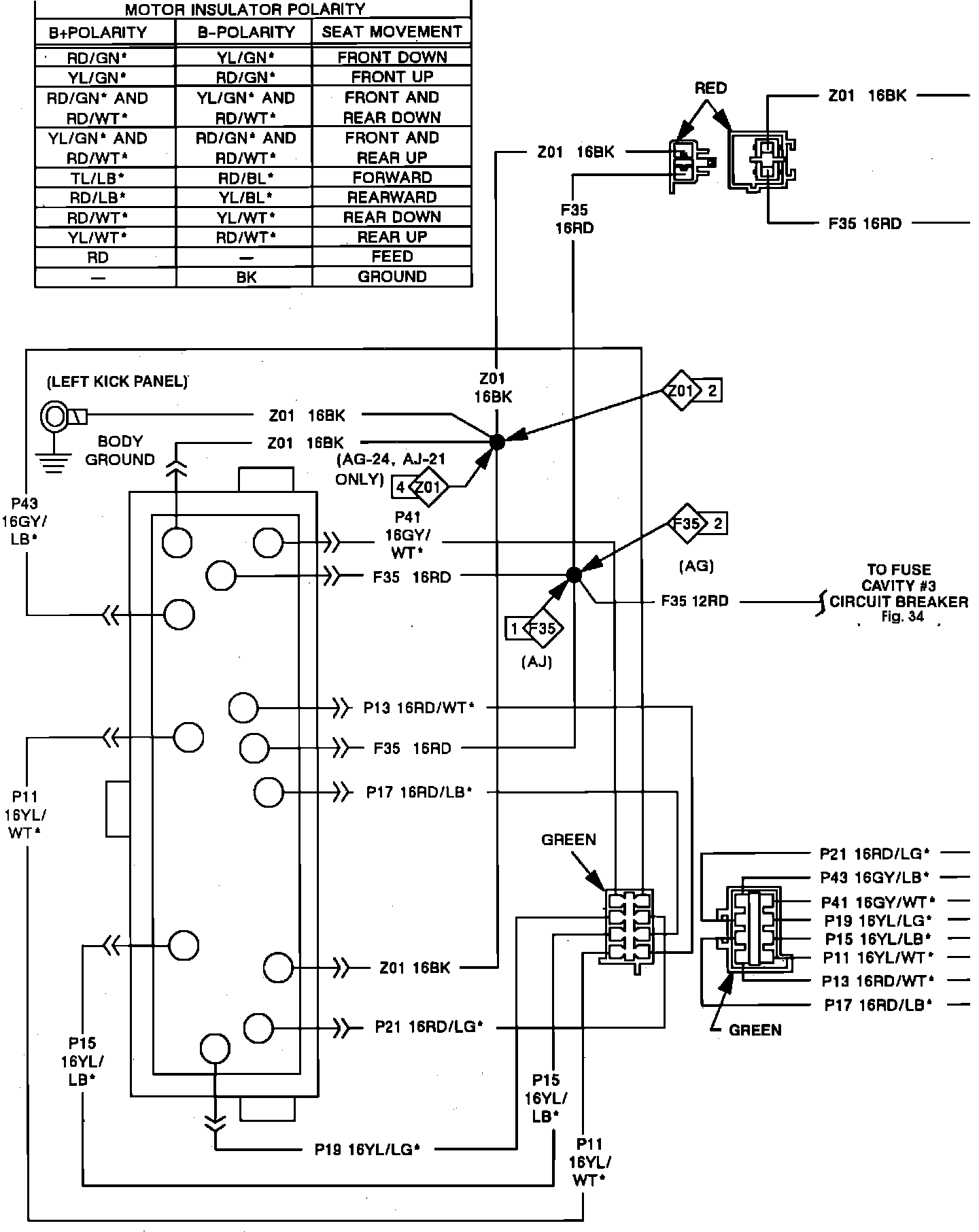

Left Bucket Power Seat:
Enthusiast Seat Jumper:
