Rear Door Window Regulator

Rear Door:

REMOVAL
1. Remove rear door trim panel.
2. Remove silencer pad and water shield.

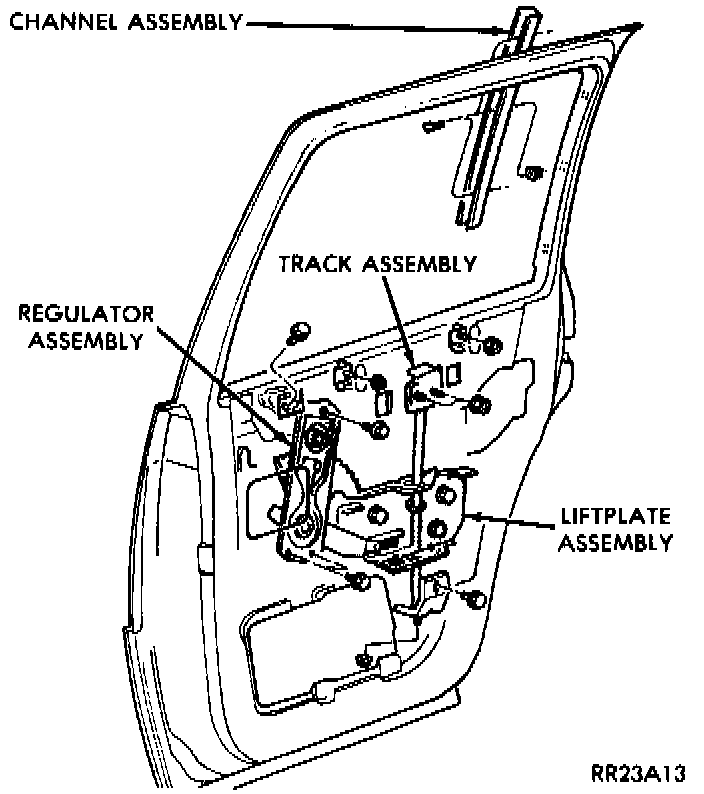

3. Remove bolts holding regulator to inner door panel.
4. Slide regulator lift arm roller from lift plate channel.
5. Separate regulator from door.

INSTALLATION
Reverse removal procedure to install.
