Imperial V6-231 3.8L VIN L FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

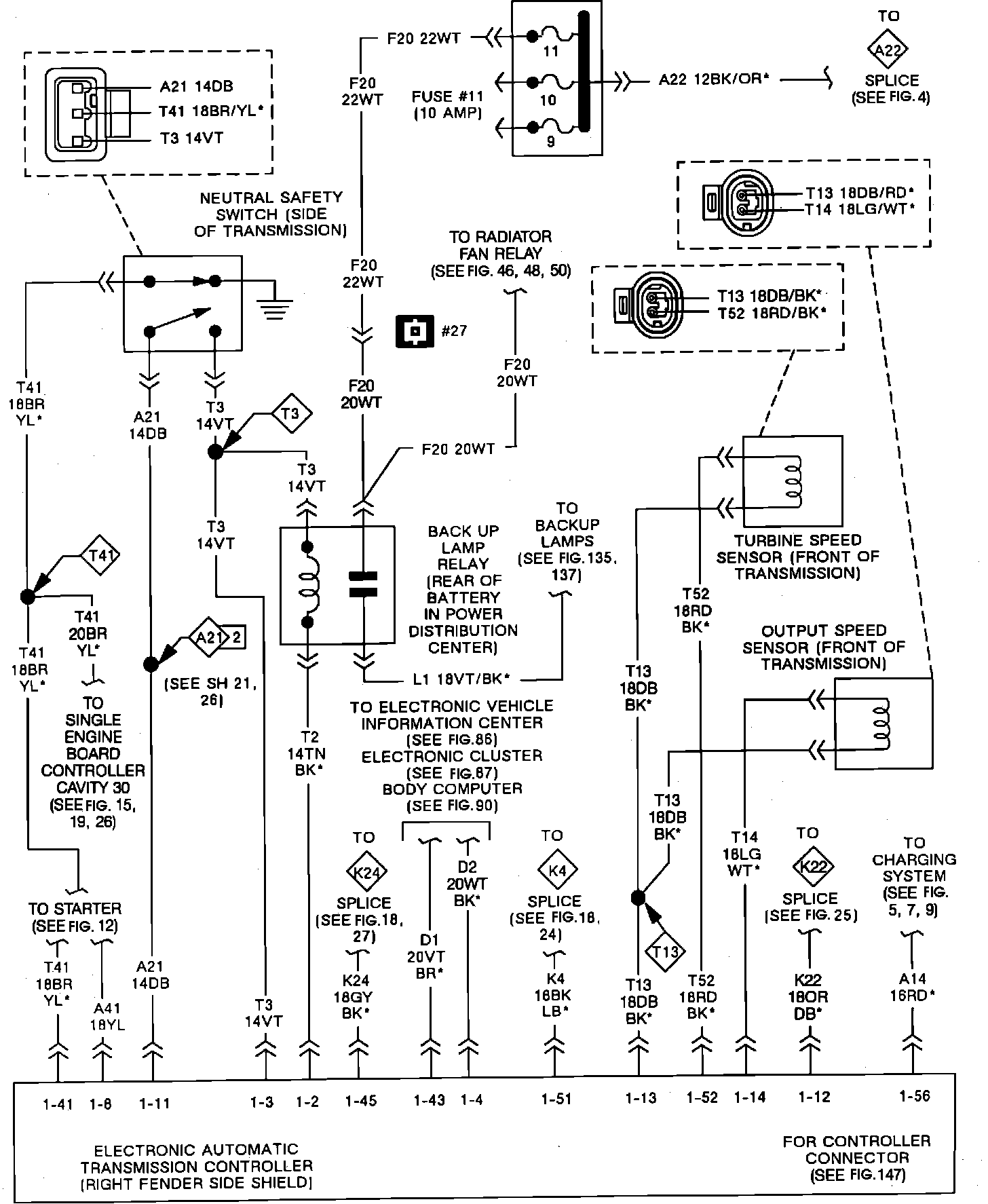

Electronic Automatic Transmission System:
Electronic Automatic Transmission System:
