Home
>>
Chrysler
>>
1991
>>
Imperial V6-231 3.8L VIN L FI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Instrument Panel Ground System
Instrument Panel Ground System

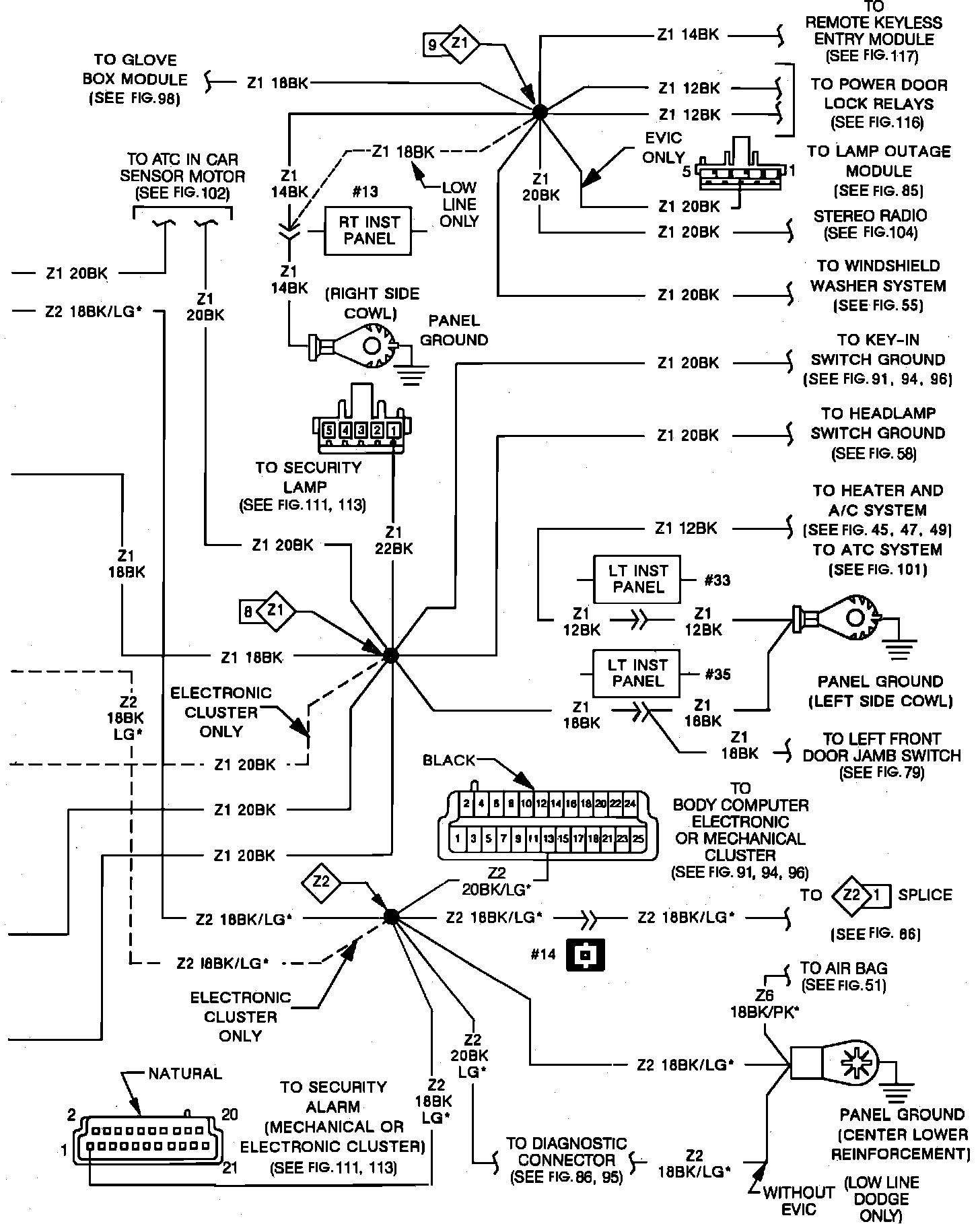

Instrument Panel Ground System:
