Home
>>
Chrysler
>>
1991
>>
Imperial V6-231 3.8L VIN L FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Suspension Control ( Automatic - Electronic )
>>
Air Load Leveling System
Air Load Leveling System

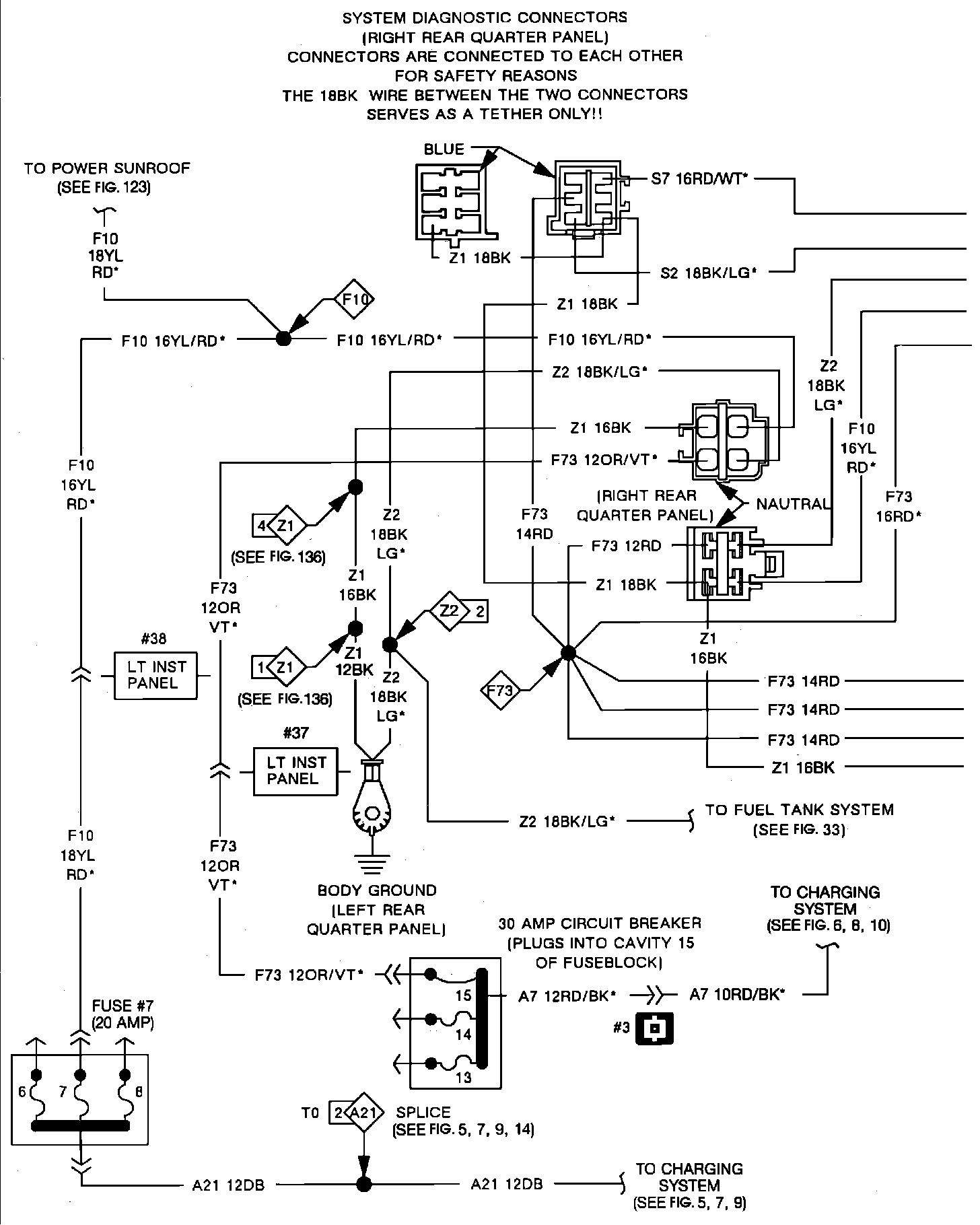

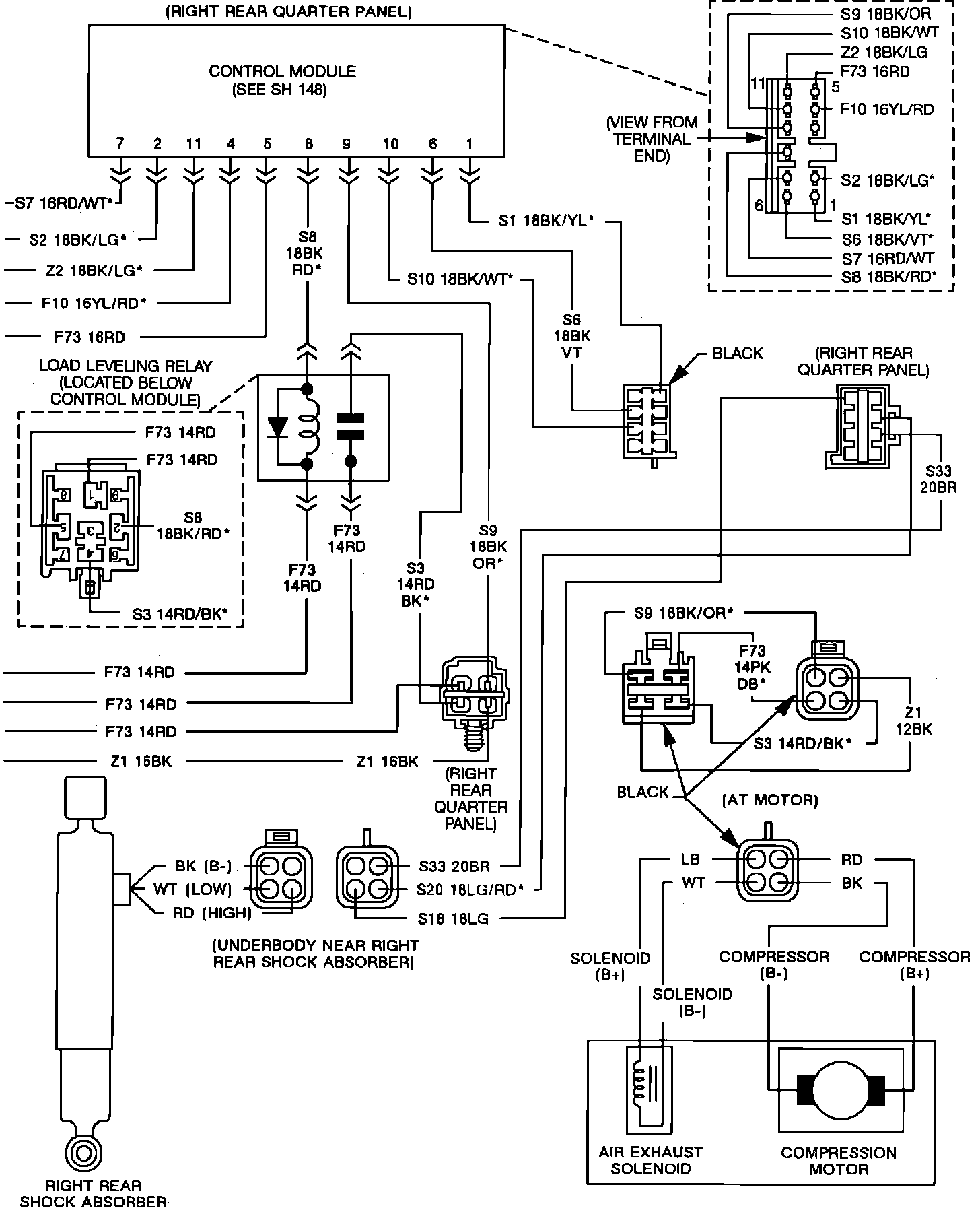

Automatic Air Load Leveling System:
Automatic Air Load Leveling System:
