Home
>>
Chrysler
>>
1991
>>
Imperial V6-231 3.8L VIN L FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
With Power Recliner
With Power Recliner

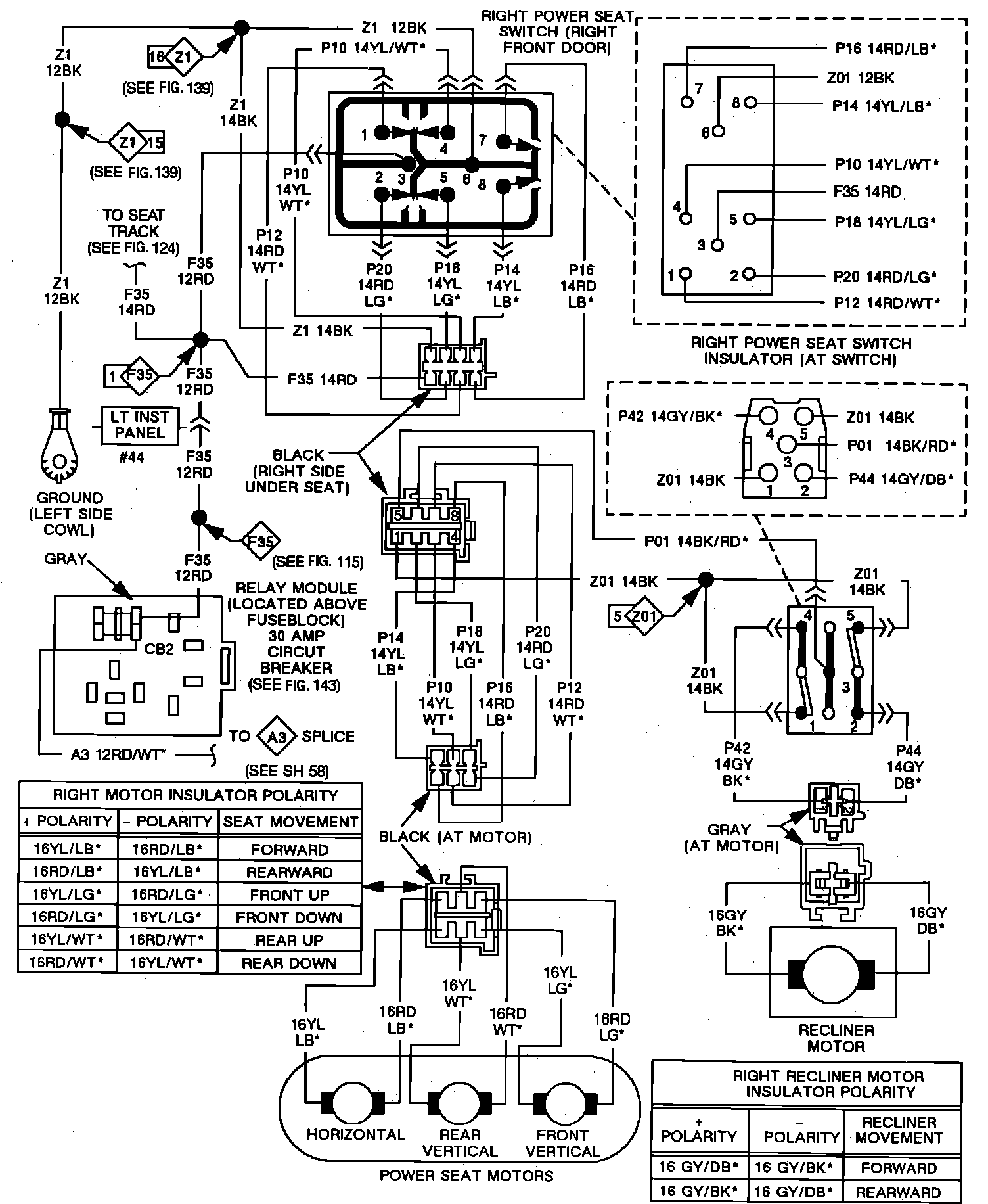

Right Power Seat With Power Recliner:
