Imperial V6-231 3.8L VIN L FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>

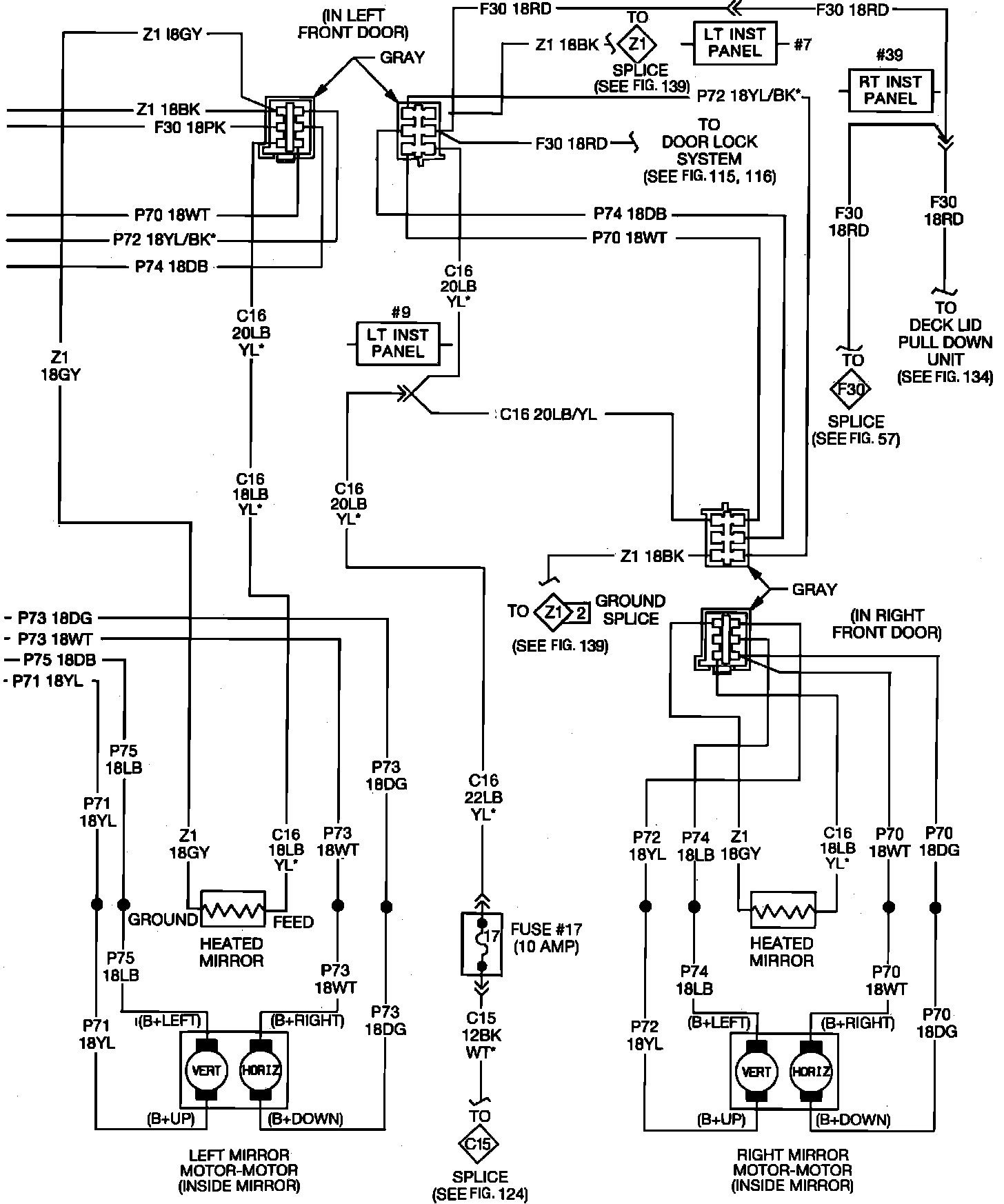

Power Mirror Wiring Circuit
>>
Less Memory
Less Memory
Power Heated Mirrors:
Power Heated Mirrors:
