Imperial V6-231 3.8L VIN L FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Front End Lighting
>>
US
US

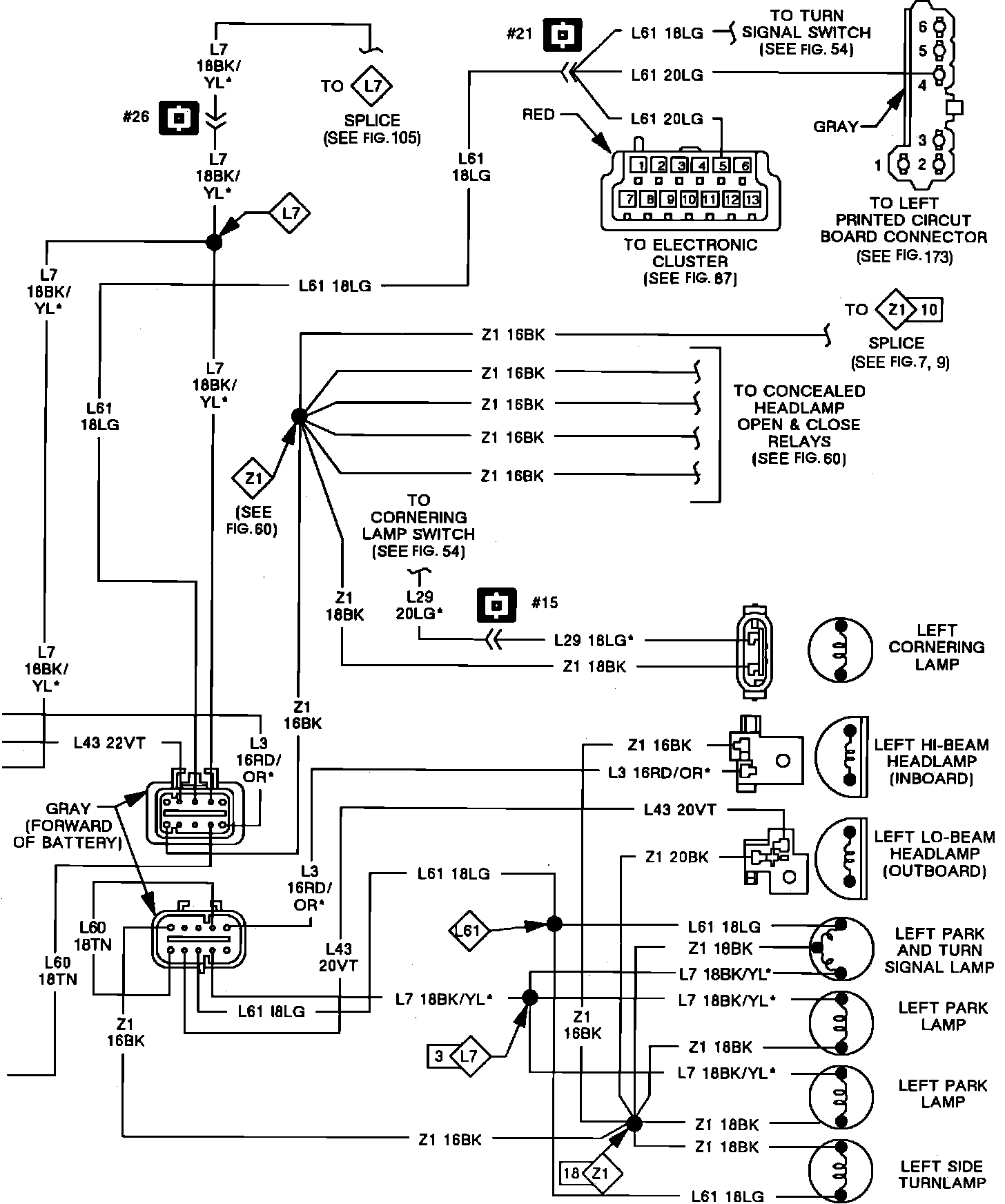

Front End Lighting. Concealed Headlamps:

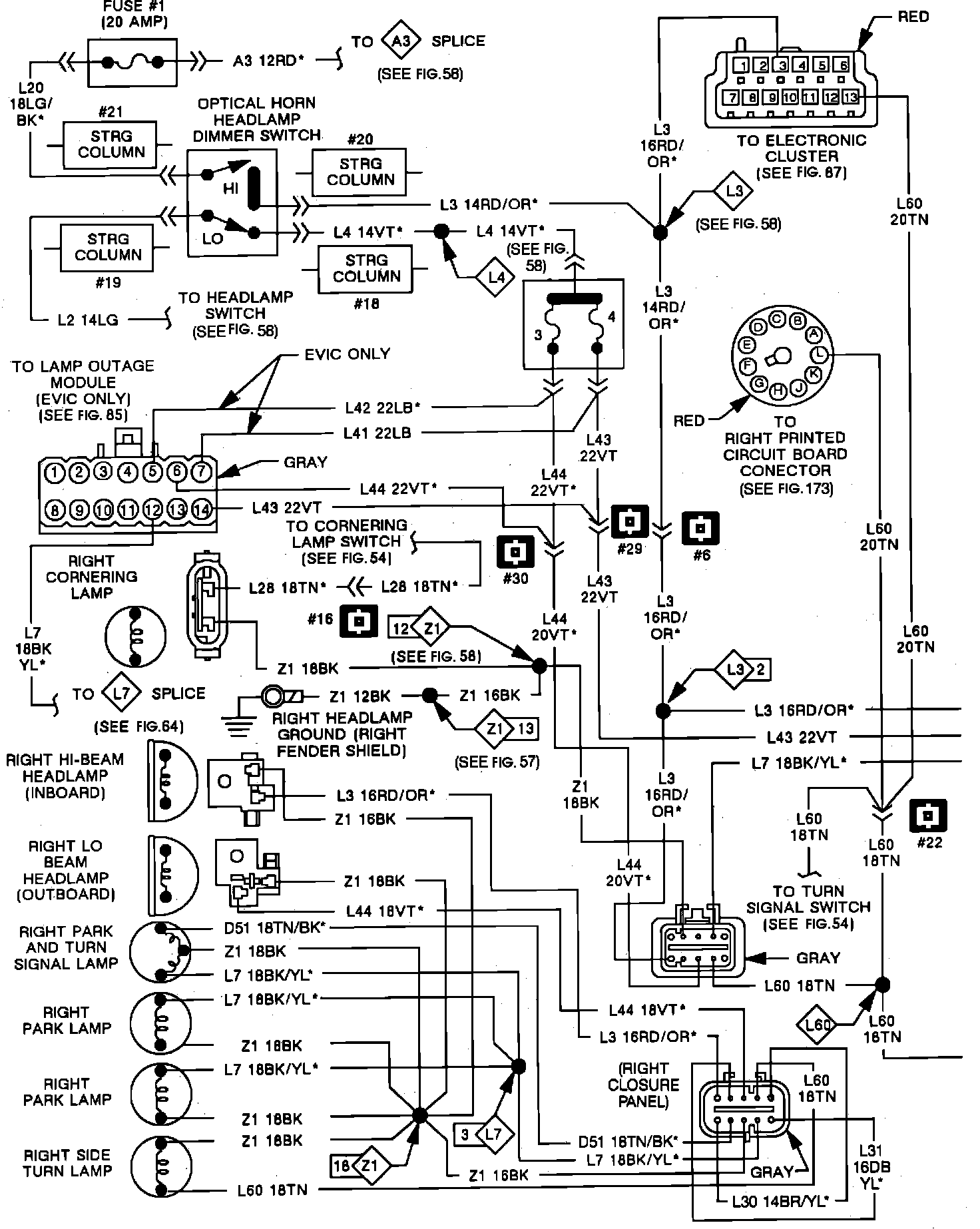

Front End Lighting. Concealed Headlamps:
