Chrysler
>>
1991
>>
Imperial V6-231 3.8L VIN L FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
System Diagram
>>
Left Side
Left Side

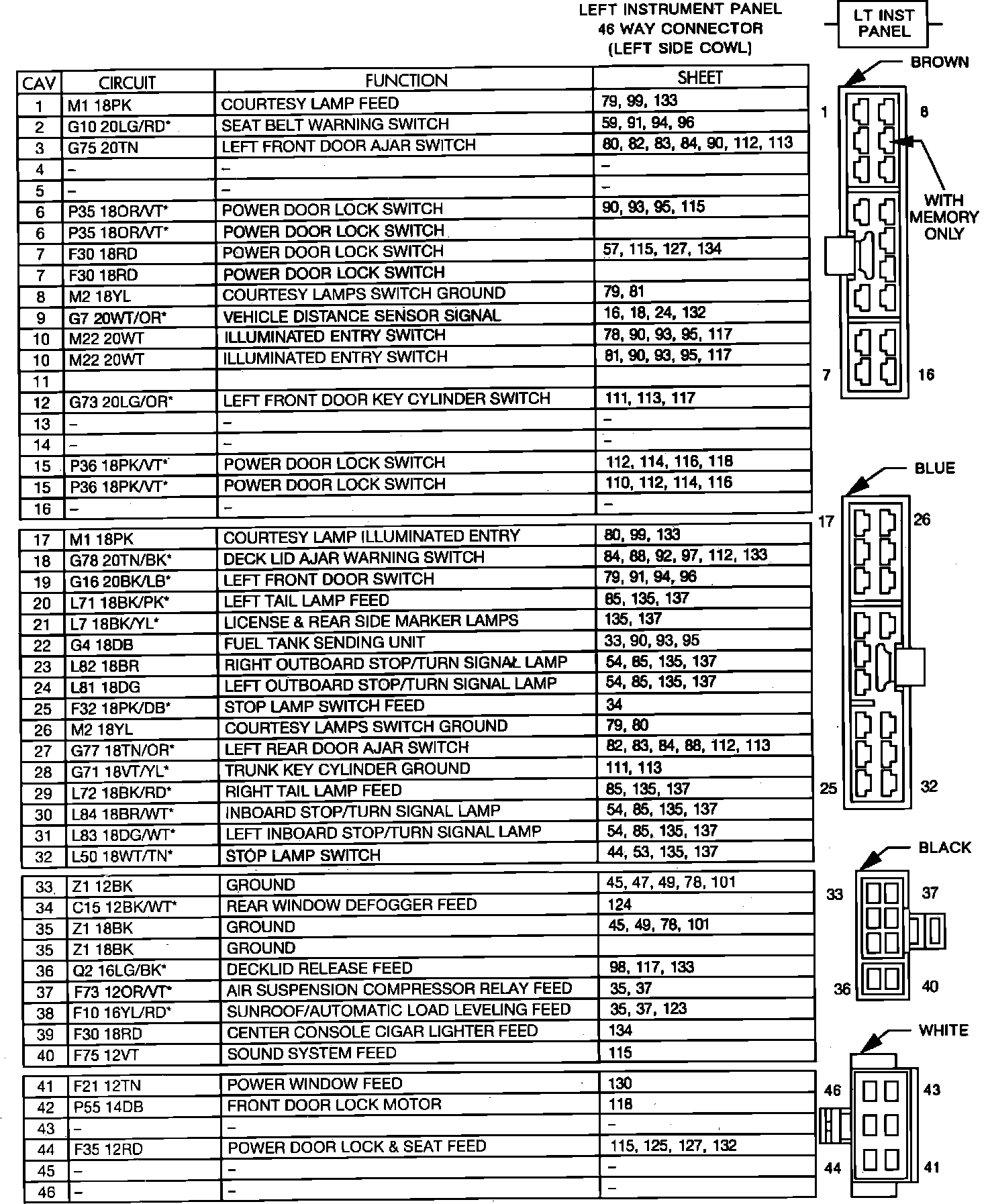

Left Body To Instrument Panel Wiring:
