Primary Pressure Transducer Connector

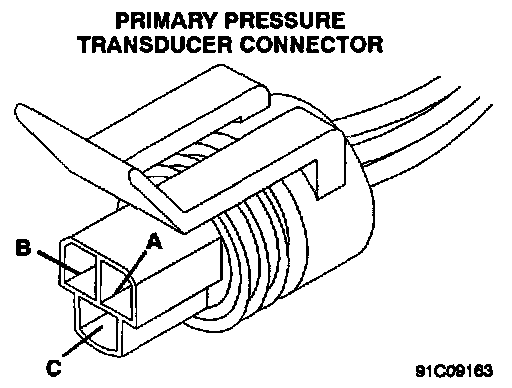

PRIMARY PRESSURE TRANSDUCER CONNECTOR
CAV CIRCUIT....... FUNCTION
A..... B10 RD/Bk..... Transducer Ground
B..... B58 GY/LB..... Transducer +5V
C..... LG............ Transducer Return
PRIMARY PRESSURE TRANSDUCER CONNECTOR
CAV CIRCUIT....... FUNCTION
A..... B10 RD/Bk..... Transducer Ground
B..... B58 GY/LB..... Transducer +5V
C..... LG............ Transducer Return
