Alarm Module, (Vehicle Antitheft)
>>
With Mechanical Cluster
With Mechanical Cluster

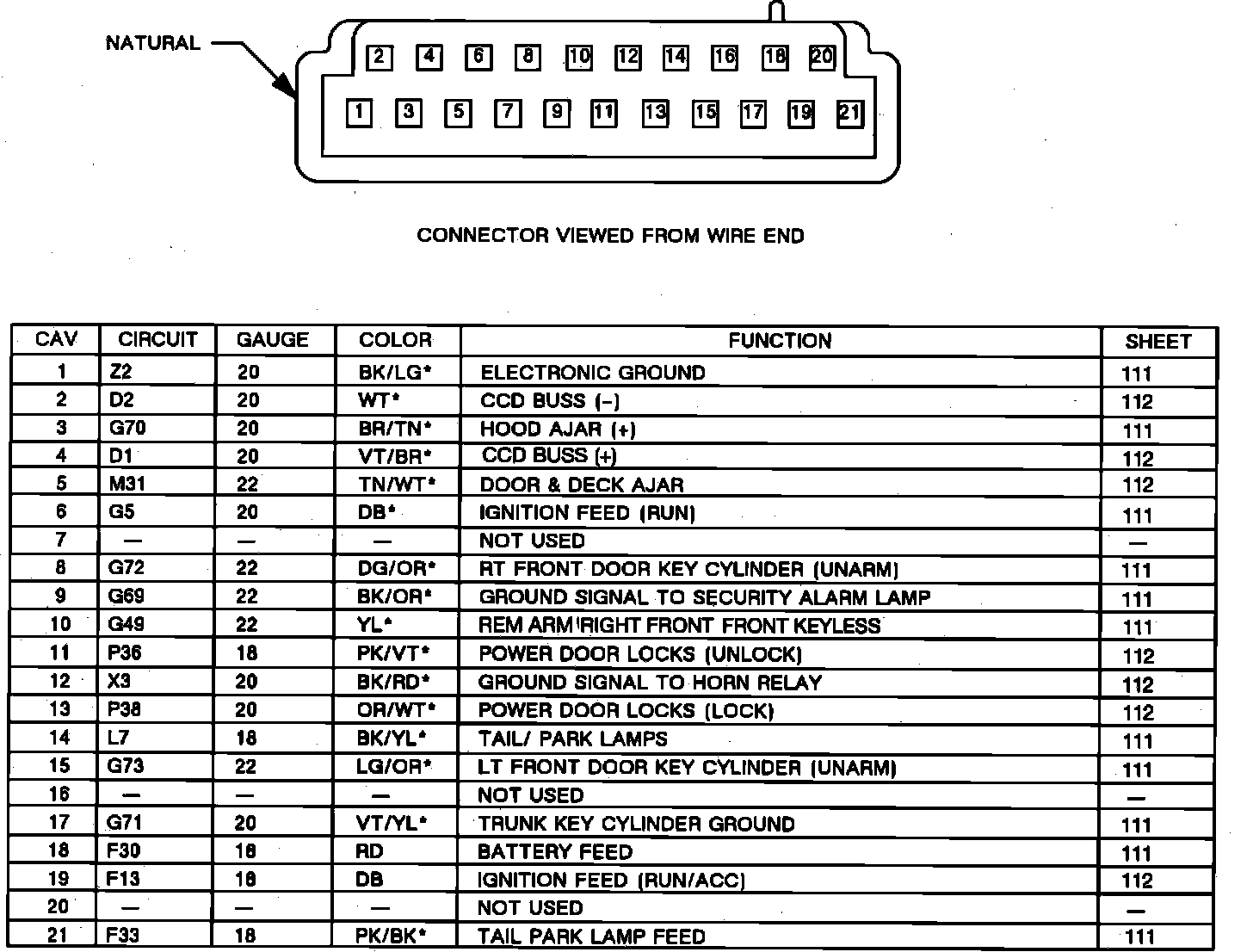

Security Alarm Module Connector (mechanical Cluster):
