Control Module: Locations
LOCATION

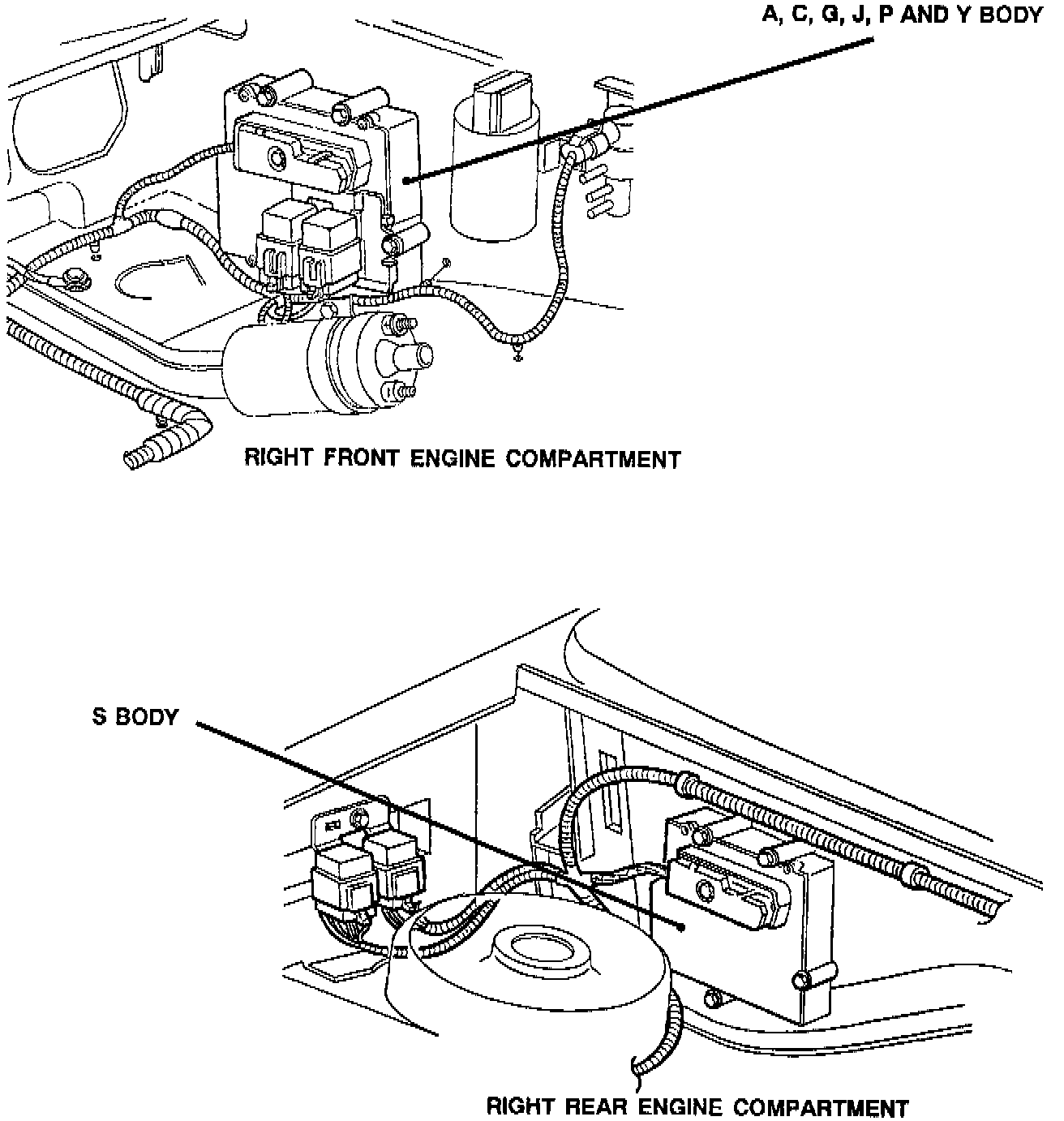

The A-604 Controller is located in the right front of the engine compartment on A, C, G, J, P and Y bodies. The S body's Controller is mounted to the dash panel near the right strut tower.
LOCATION
The A-604 Controller is located in the right front of the engine compartment on A, C, G, J, P and Y bodies. The S body's Controller is mounted to the dash panel near the right strut tower.
