Data Link Connector, A/T: Locations

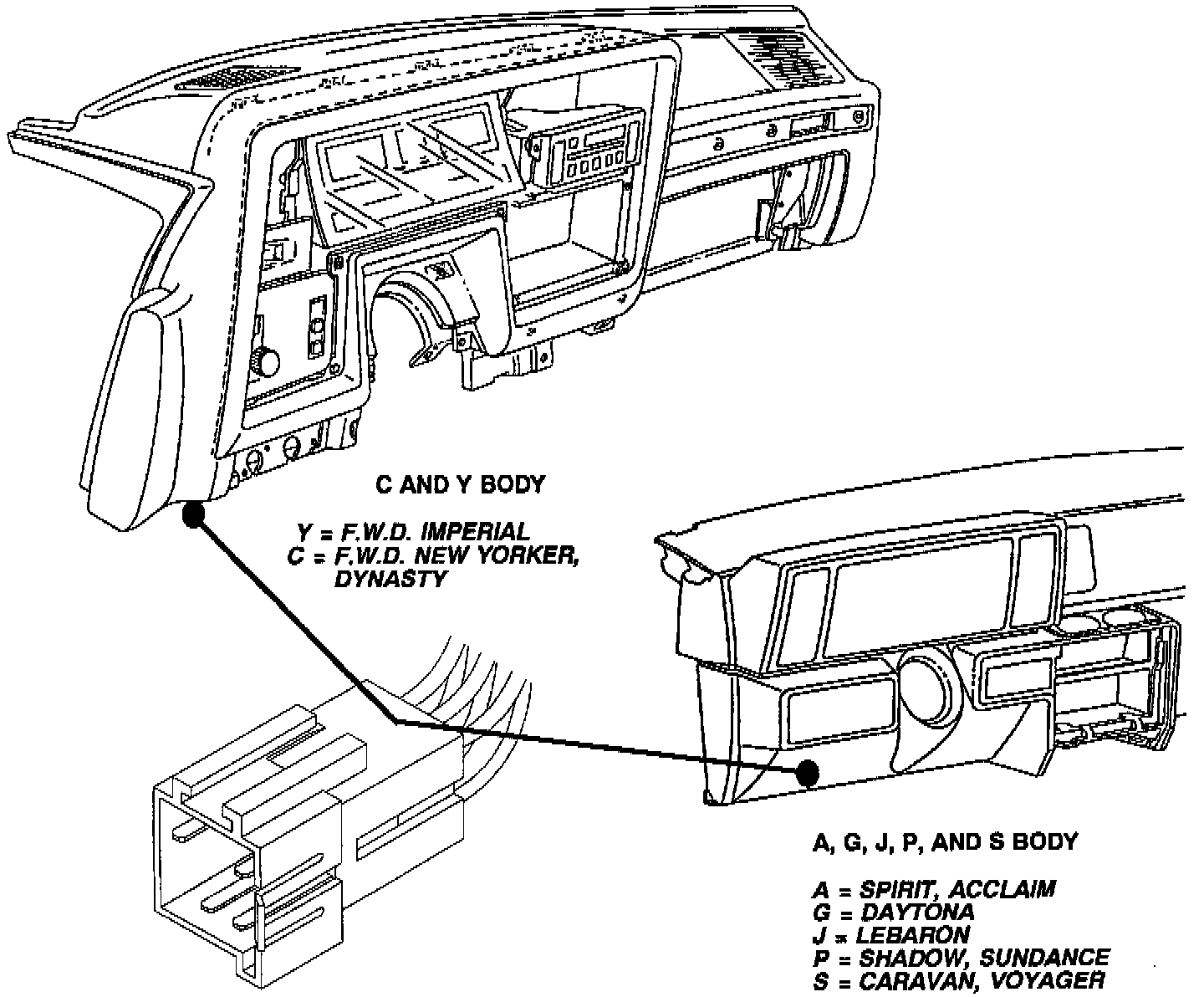

LOCATION

On the C body, this connector is located inside the vehicle, under the dash, just to the right of the steering column.

On the Y body, this connector is located inside the vehicle, under the dash, to the left of the steering column.

On the A, G, J, P and S bodies, the connector is located inside the vehicle, under the dash, on the extreme left, behind the fuse access panel.
