Quick Check

ABS-Quick Check Chart

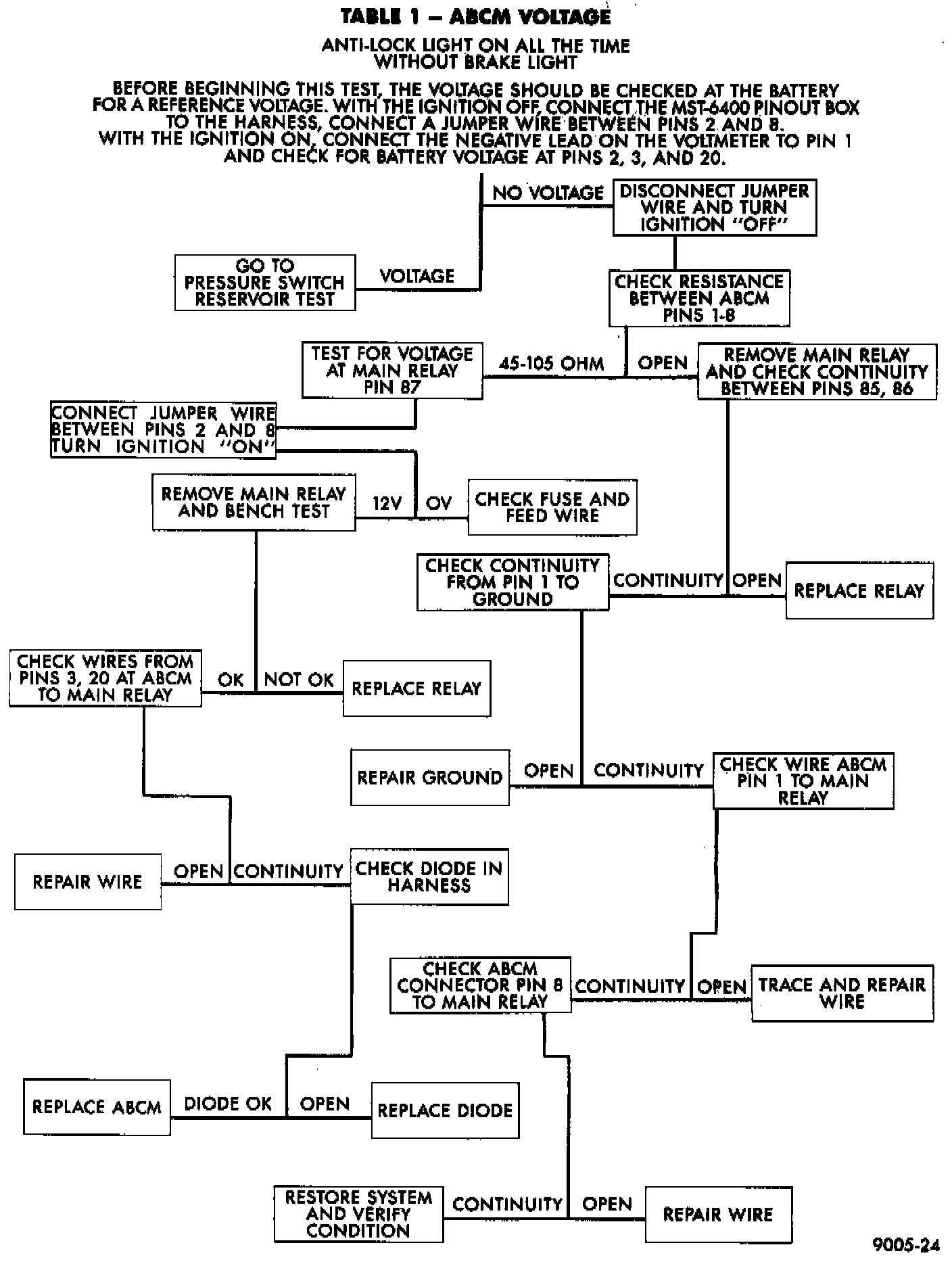

Table 1 - ABCM Voltage

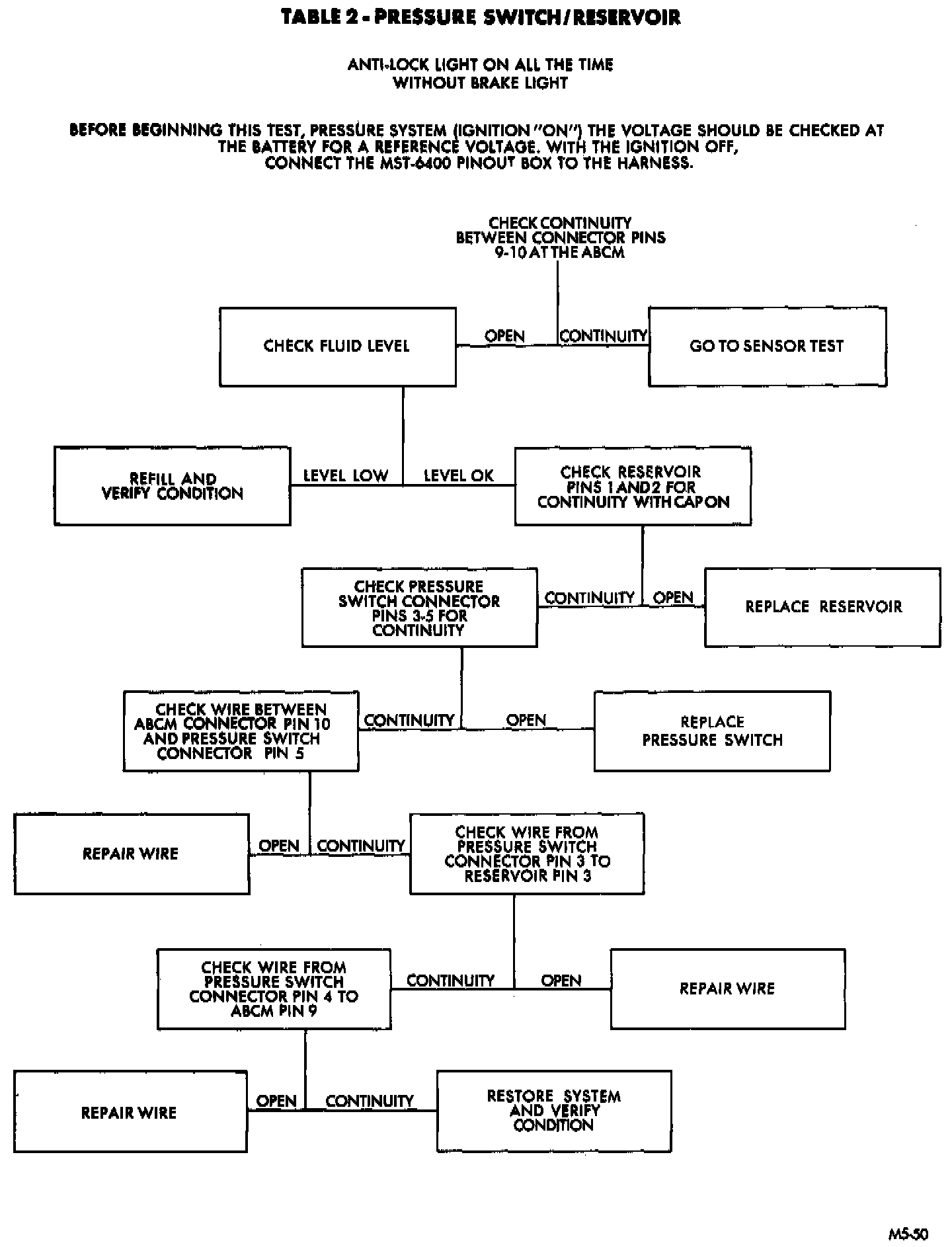

Table 2 - Pressure Switch/Reservoir

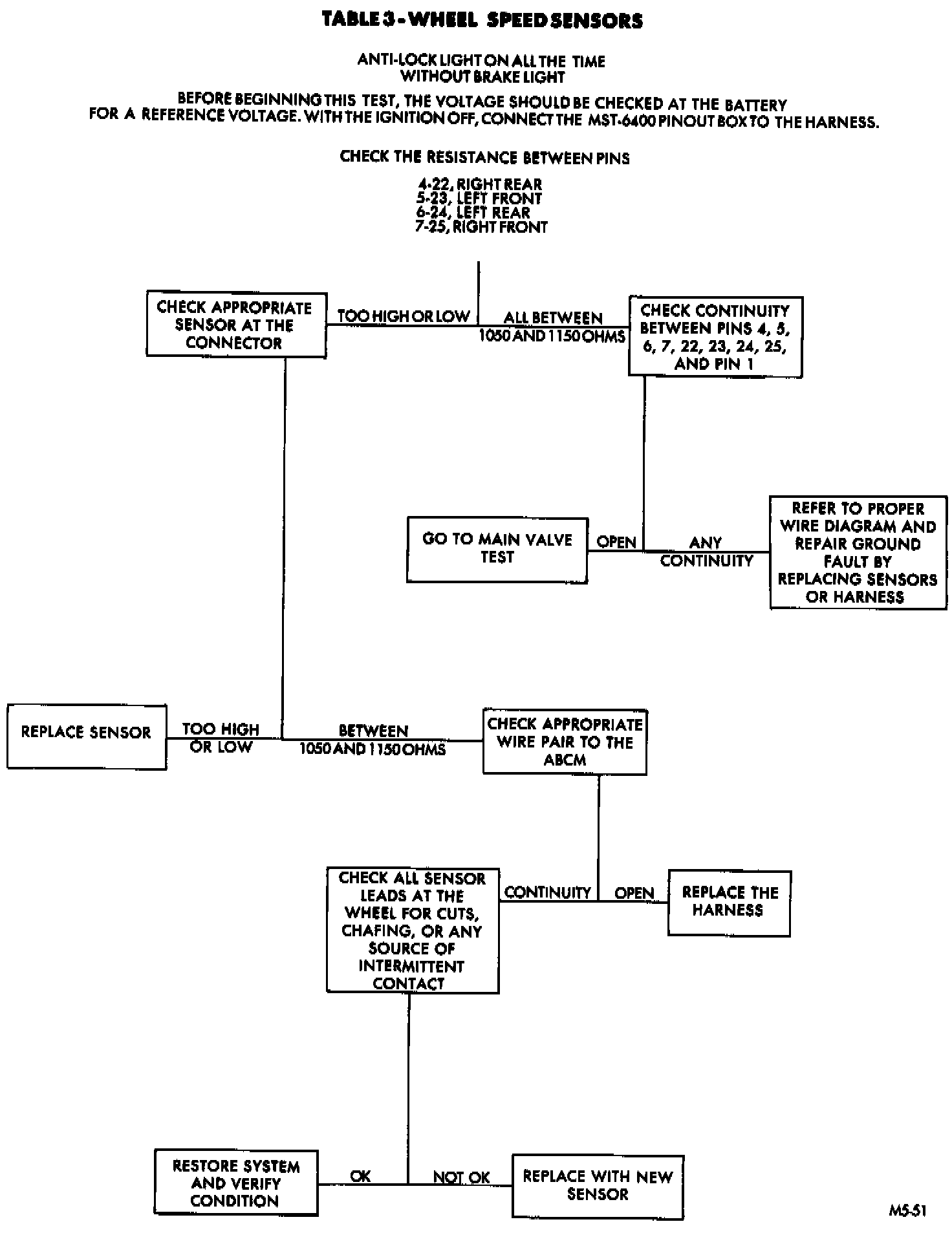

Table 3 - Wheel Speed Sensors

Table 4 - Main Valve

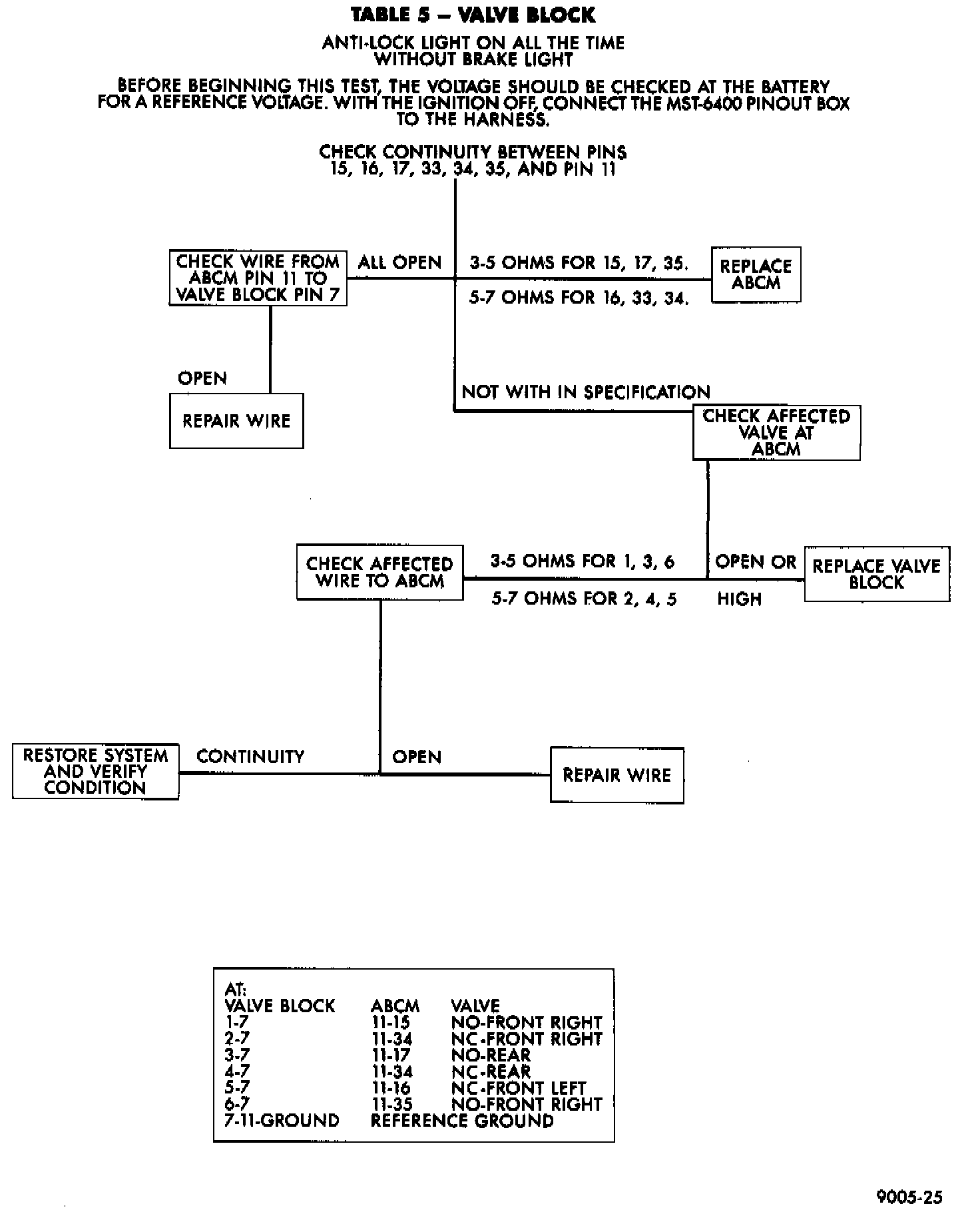

Table 5 - Valve Block

Table 6 - Pump Runs Longer Than 60 Seconds

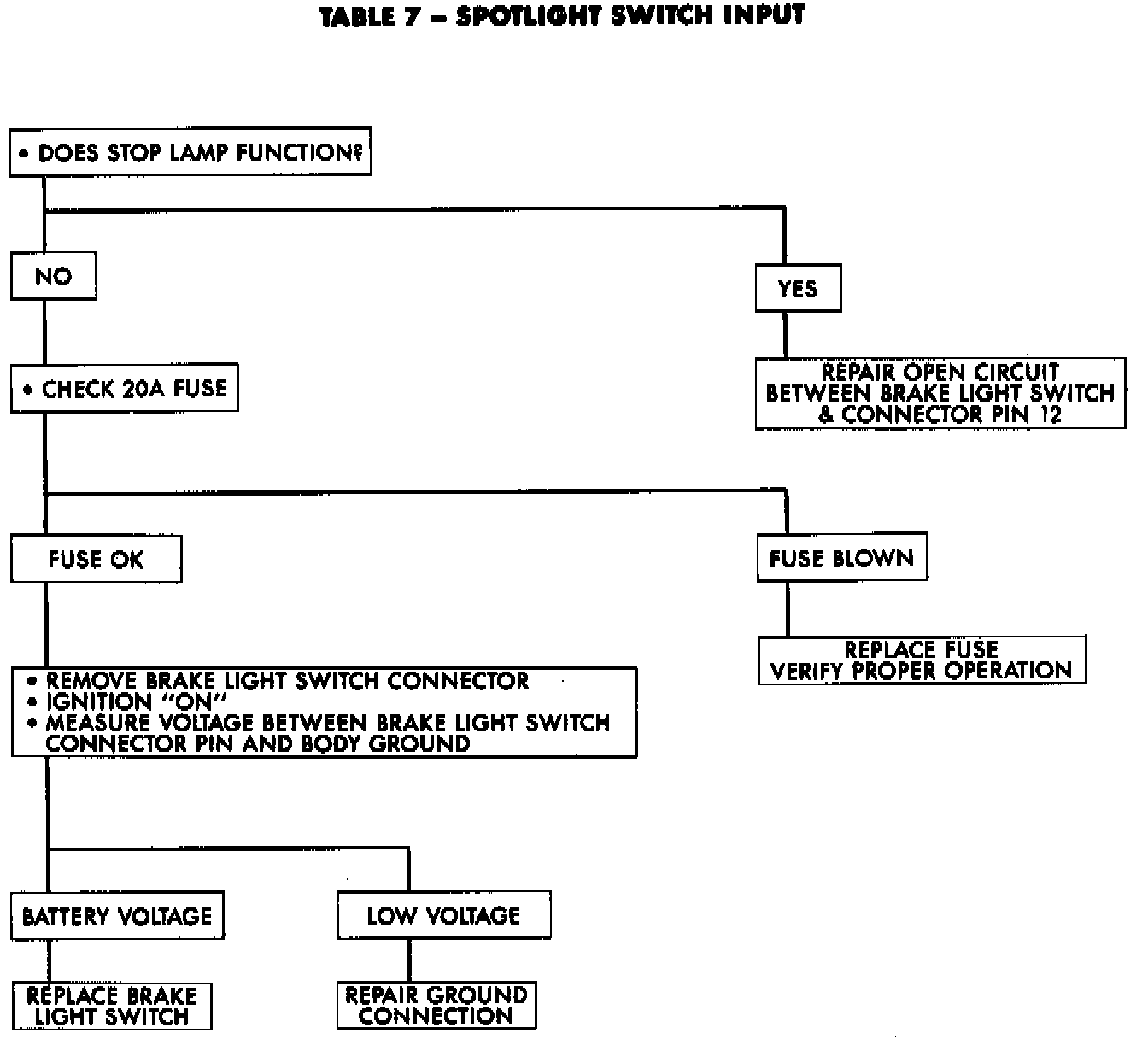

Table 7 - Spotlight Switch Input
