Home >> Chrysler >> 1990 >> New Yorker V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations >> Component Locations

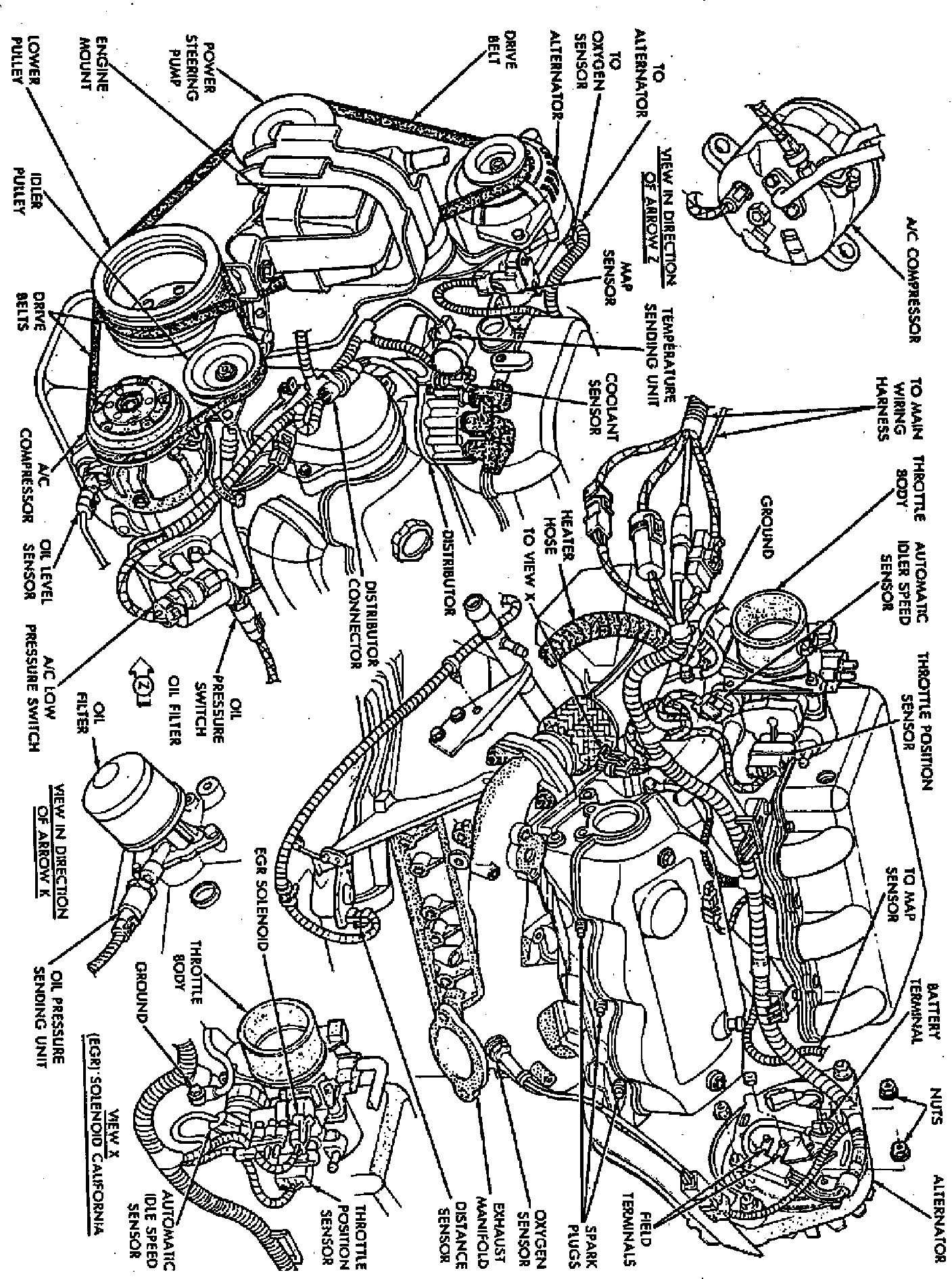

Component Locations

Engine Components.:




On RH Side Of Engine

Applicable to: V6-181/3.0L
