Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control ( Automatic - Electronic )
>>
Suspension Control Module
>>
Automatic Load Leveling
Automatic Load Leveling

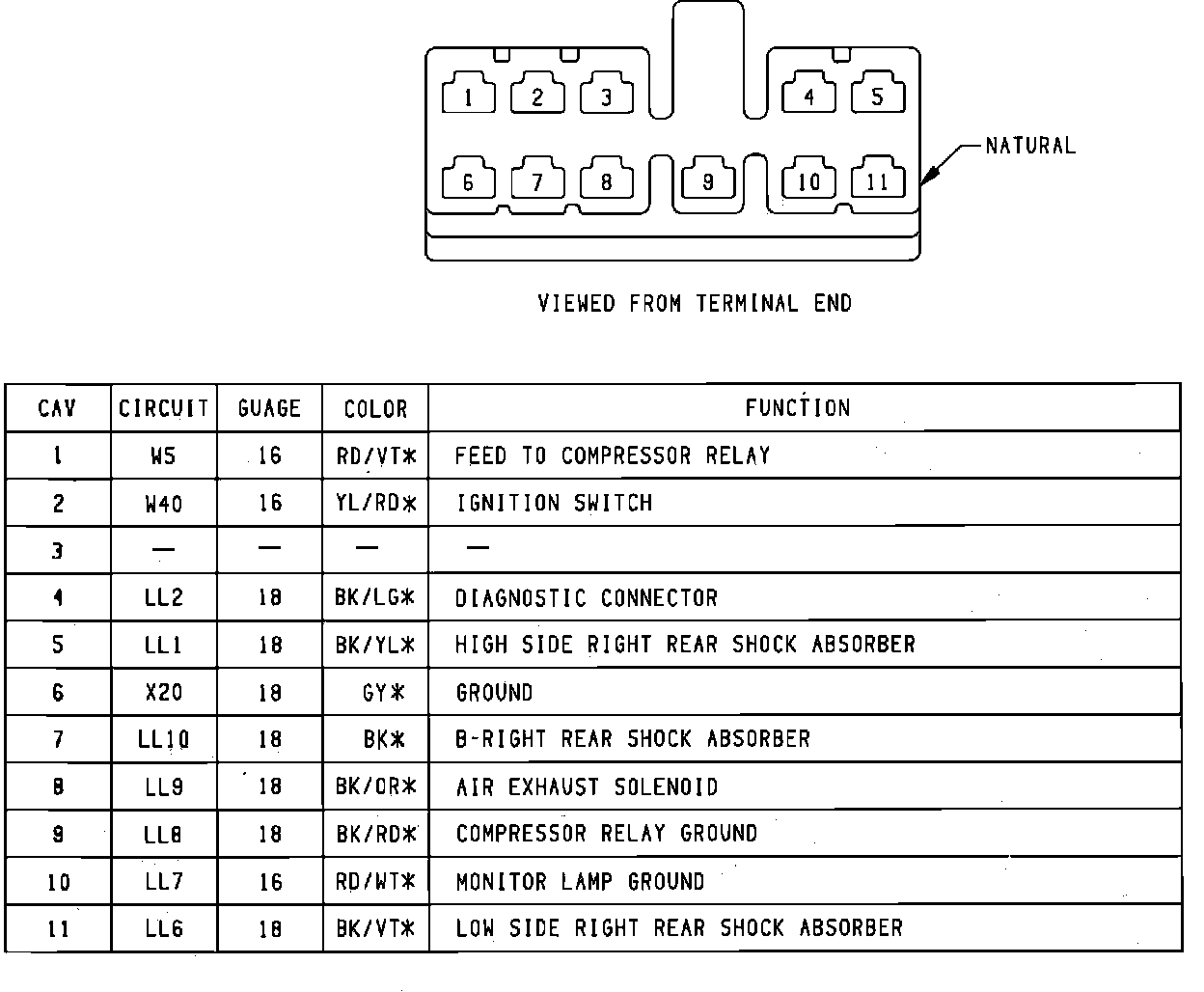

Automatic Load Leveling Connector:
