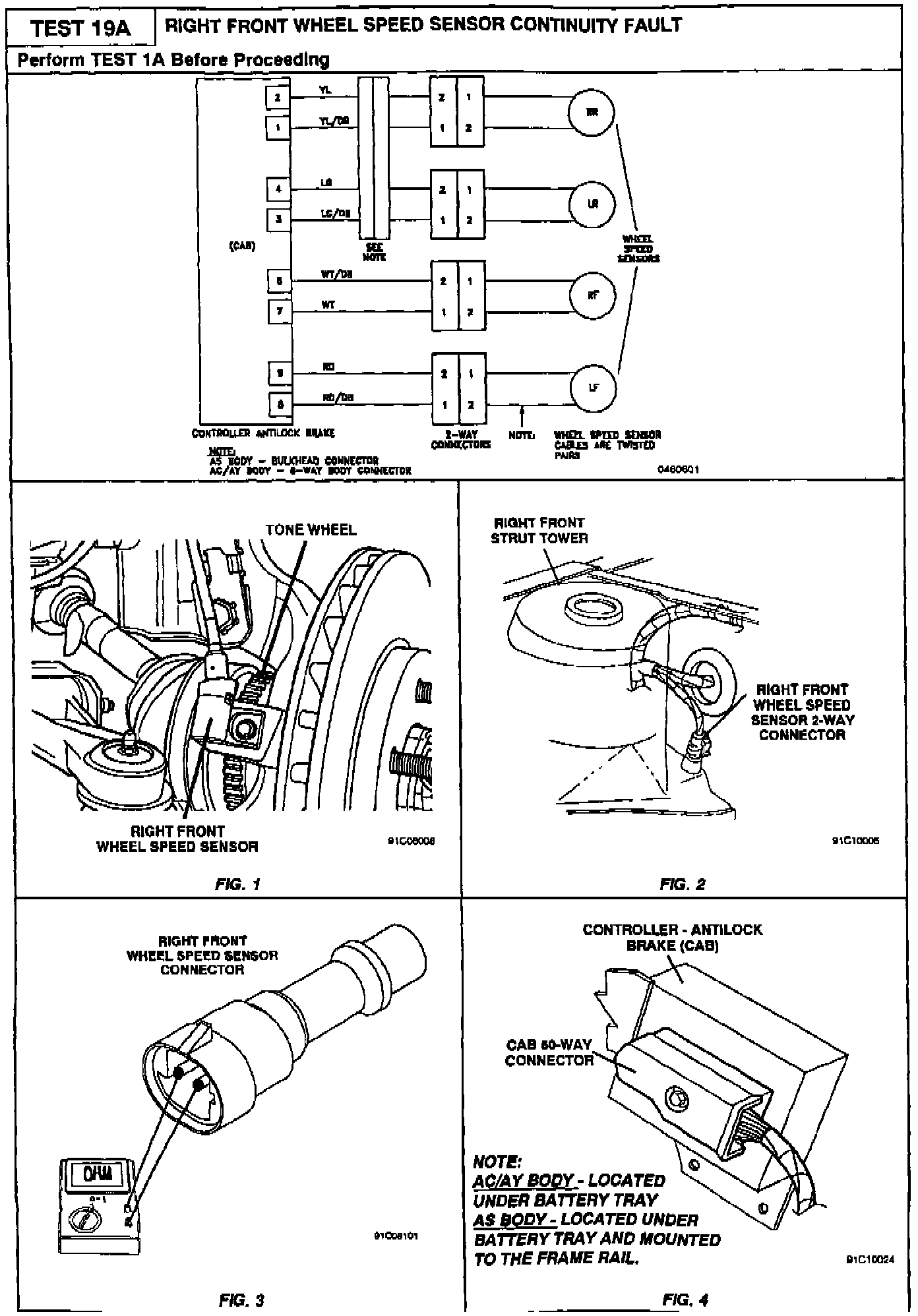

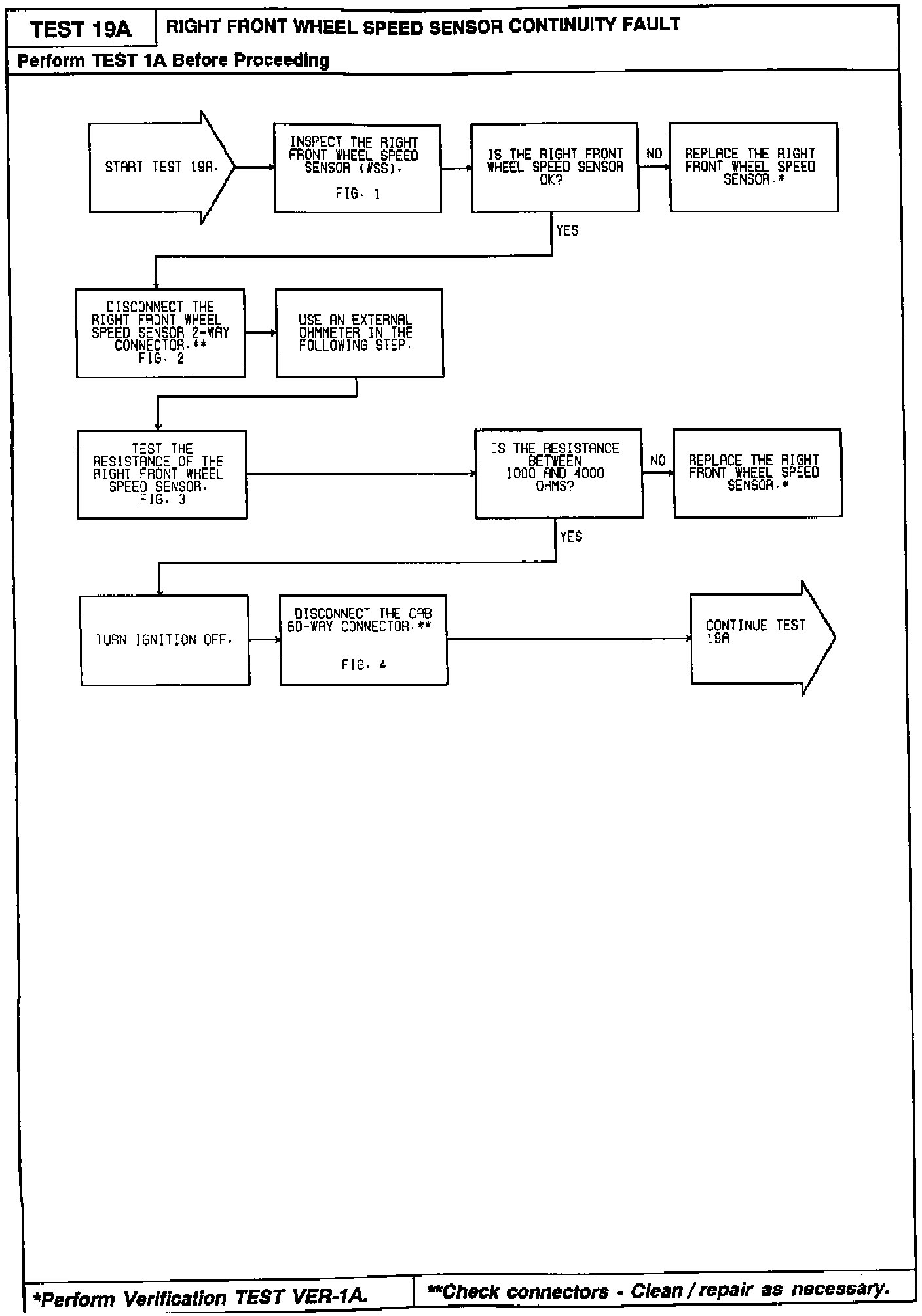

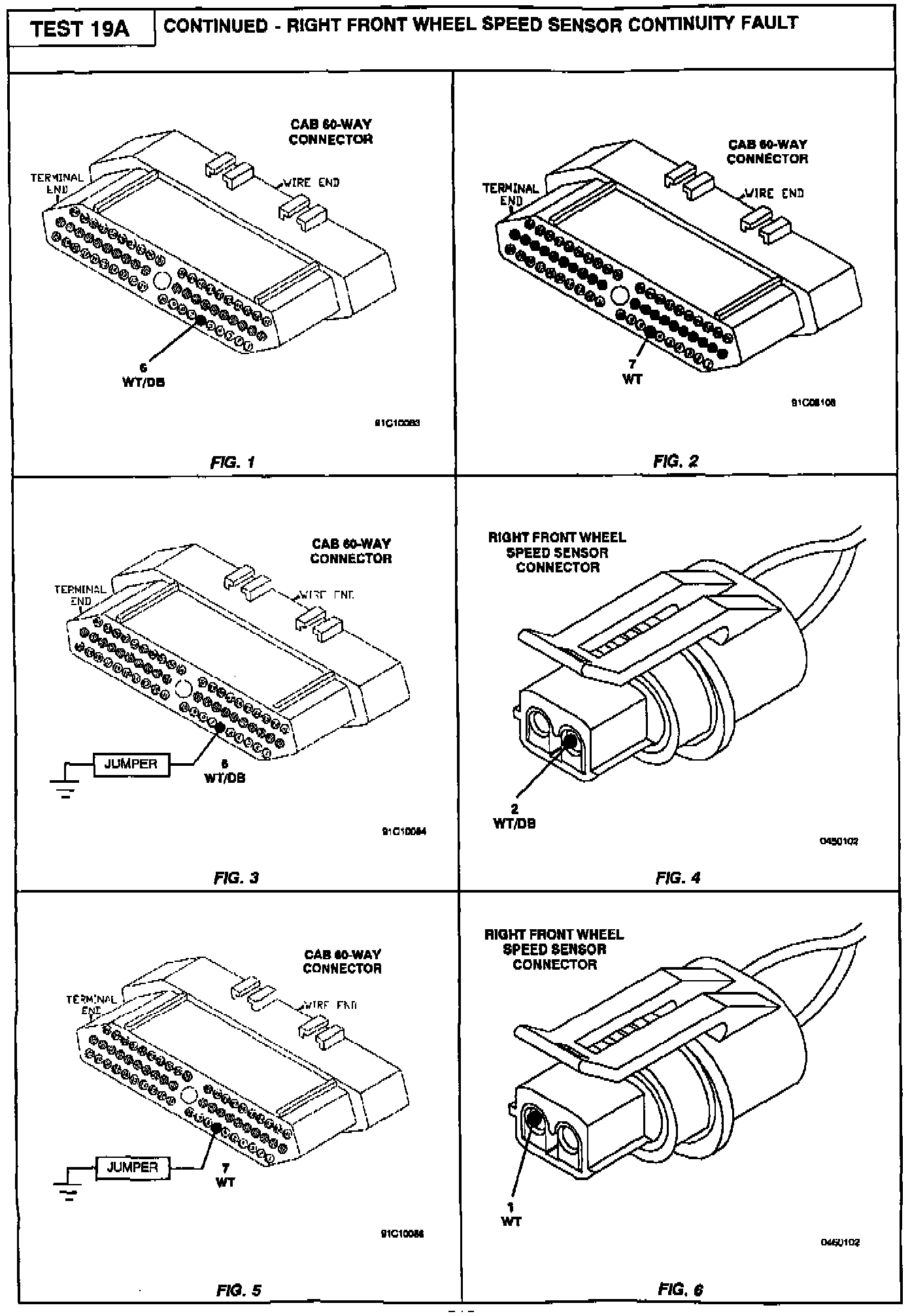

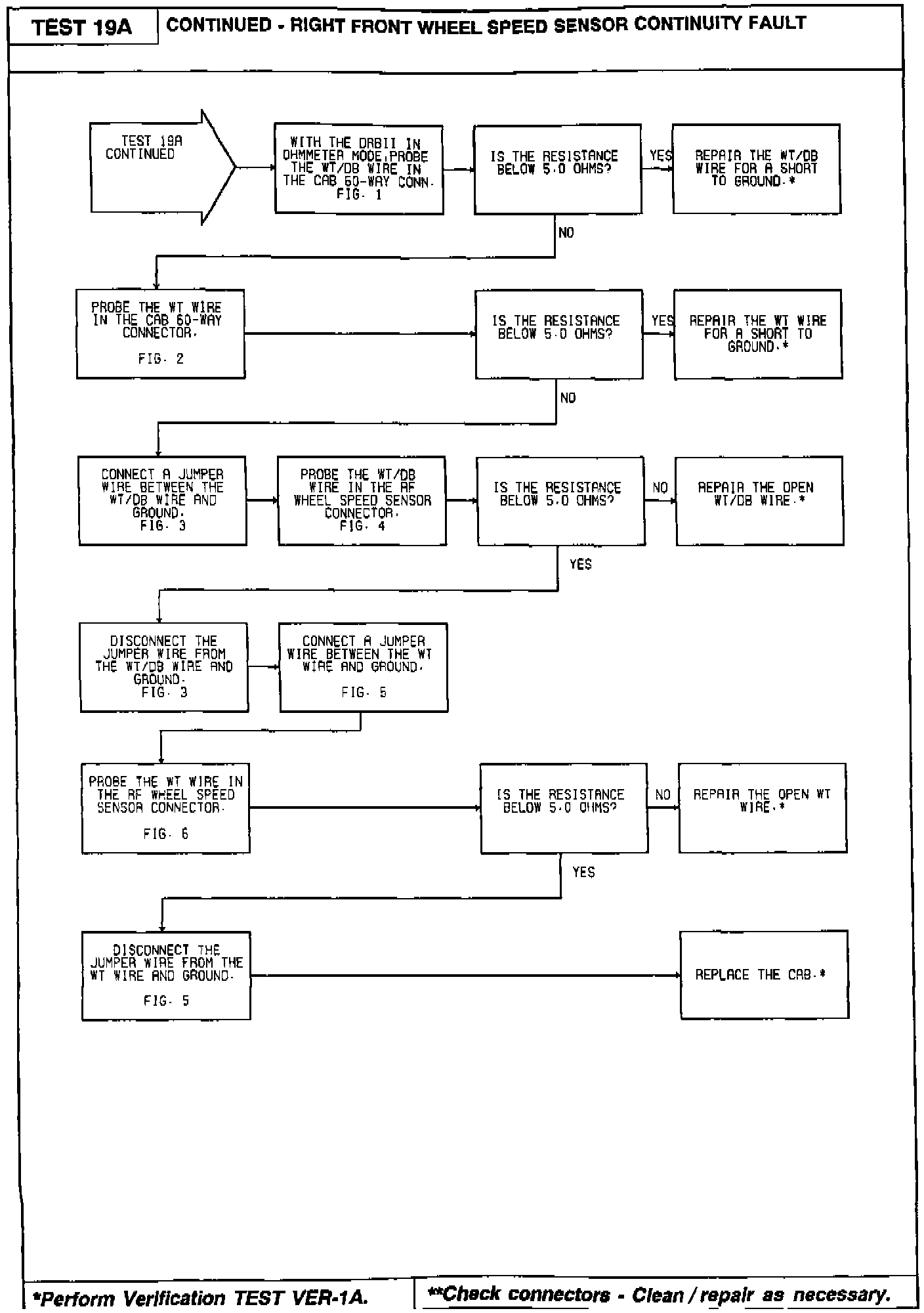

Test 19A - Right Front Wheel Speed Sensor Continuity Fault
Test 19A - Right Front Wheel Speed Sensor Continuity Fault
Image:
Chart:
Image:
Chart:
