New Yorker V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>
Body Control Module
>>
Diagrams
>>
Connector Views
>>
With Electronic Cluster
With Electronic Cluster

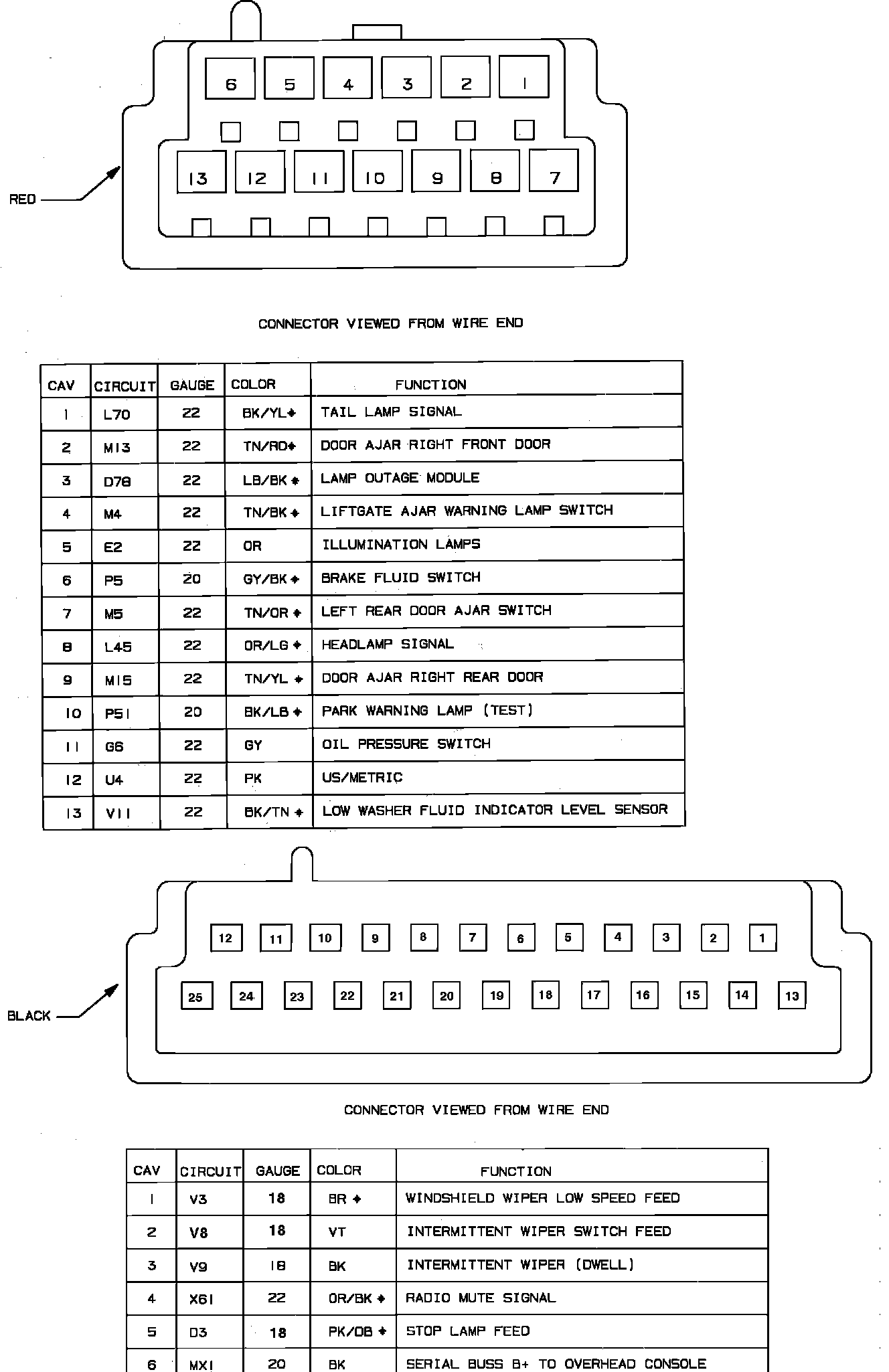

���BCM Red Connector W/Electronic Cluster:
