Home >> Chrysler >> 1988 >> Lebaron Sedan L4-135 2.2L SOHC VIN D TBI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Active Check Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

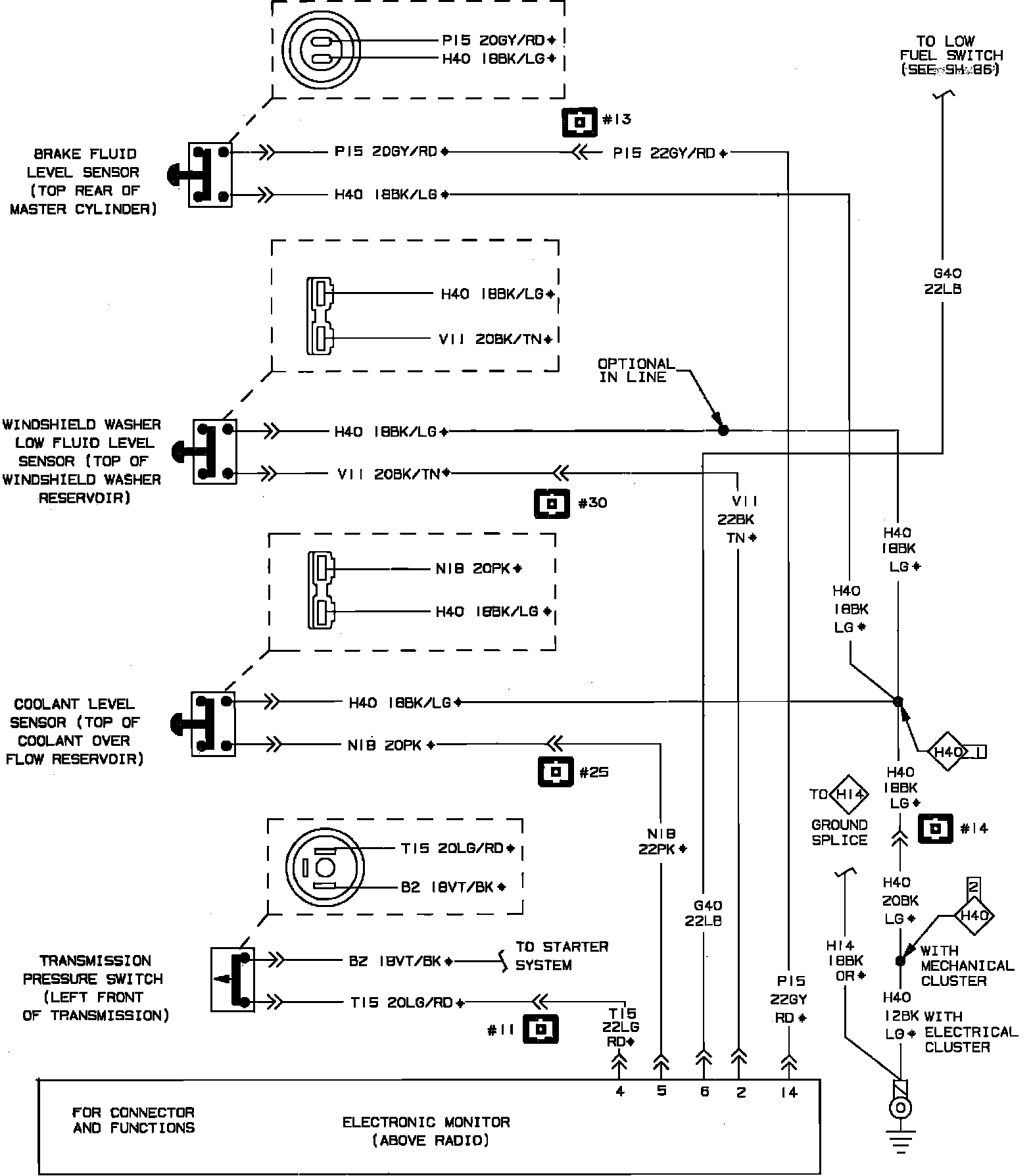

Electronic Monitor Wiring Circuit (Part 1 Of 2):



Fig. 29 Electronic Monitoring Wiring Circuit (Part 2 of 2):
