Home
>>
Chrysler
>>
1988
>>
Lebaron Convertible L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
Windows

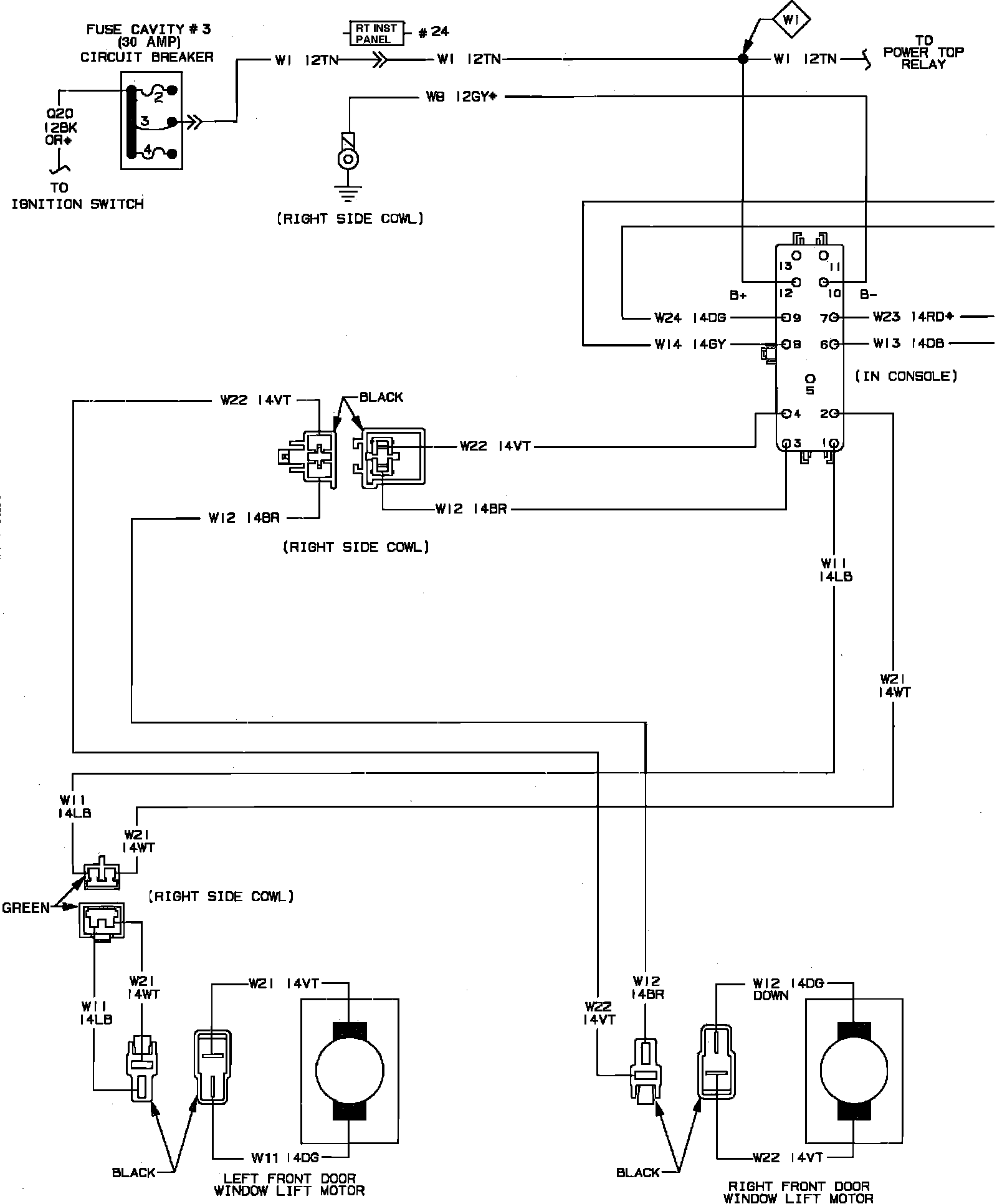

Power Window Wiring Circuit. 2 Door:

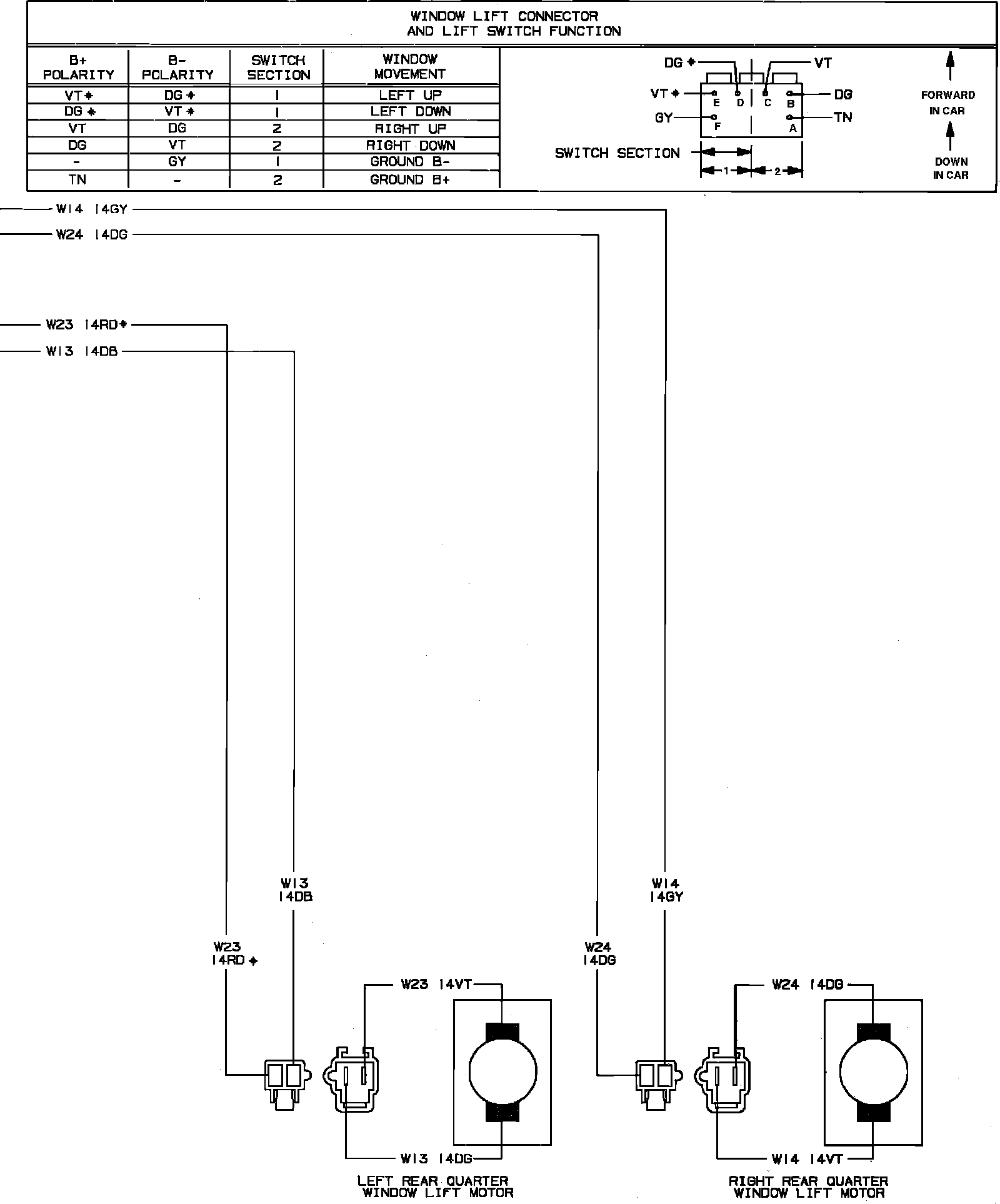

Power Window 4 Door (Part 1 Of 2):
Power Window 4 Door (Part 2 Of 2):
