Fuse Application Charts

Fig. 33 Fuse Application Chart (Part 1 of 2):

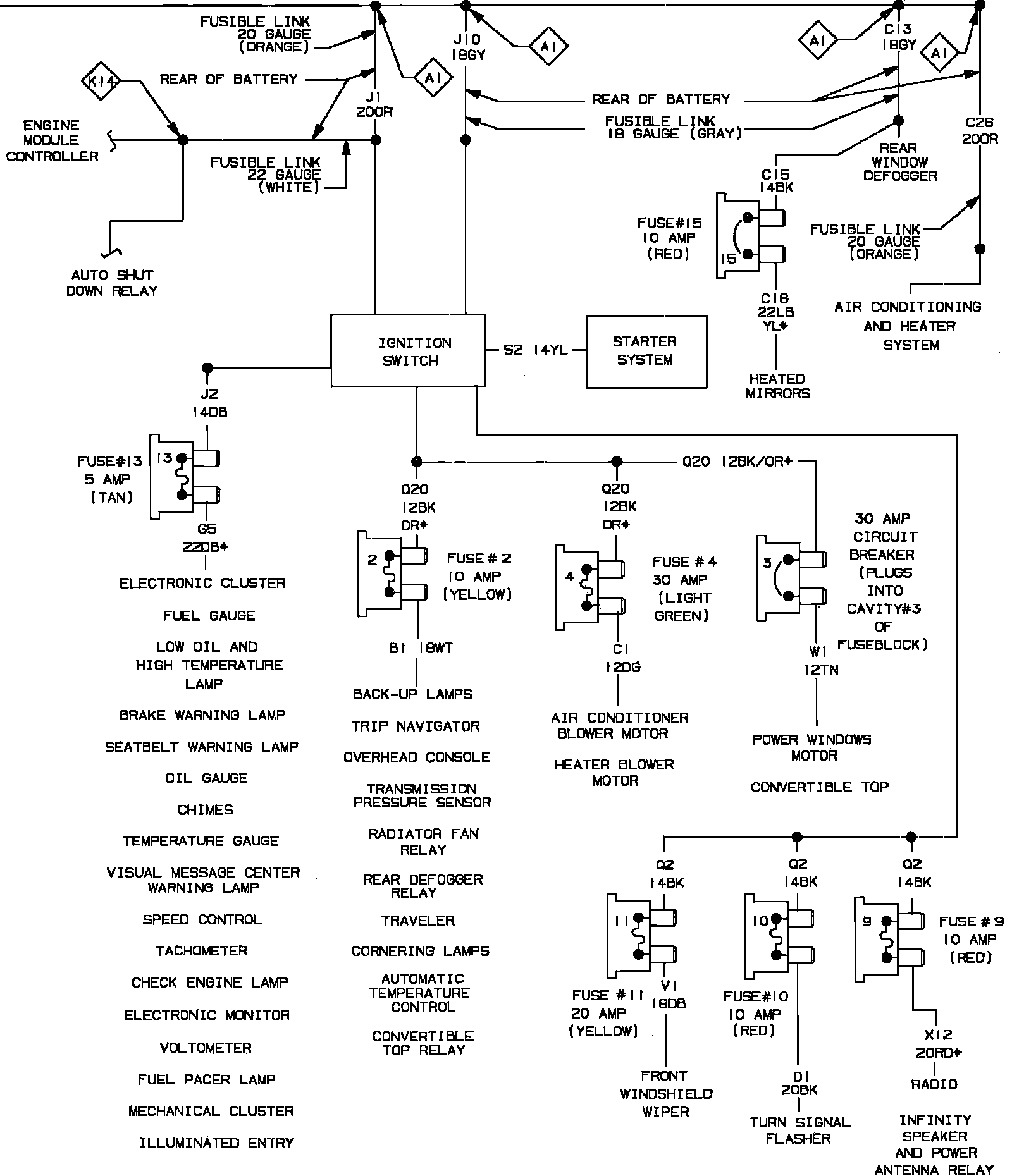

Fuse Application Chart (Part 1 of 2):

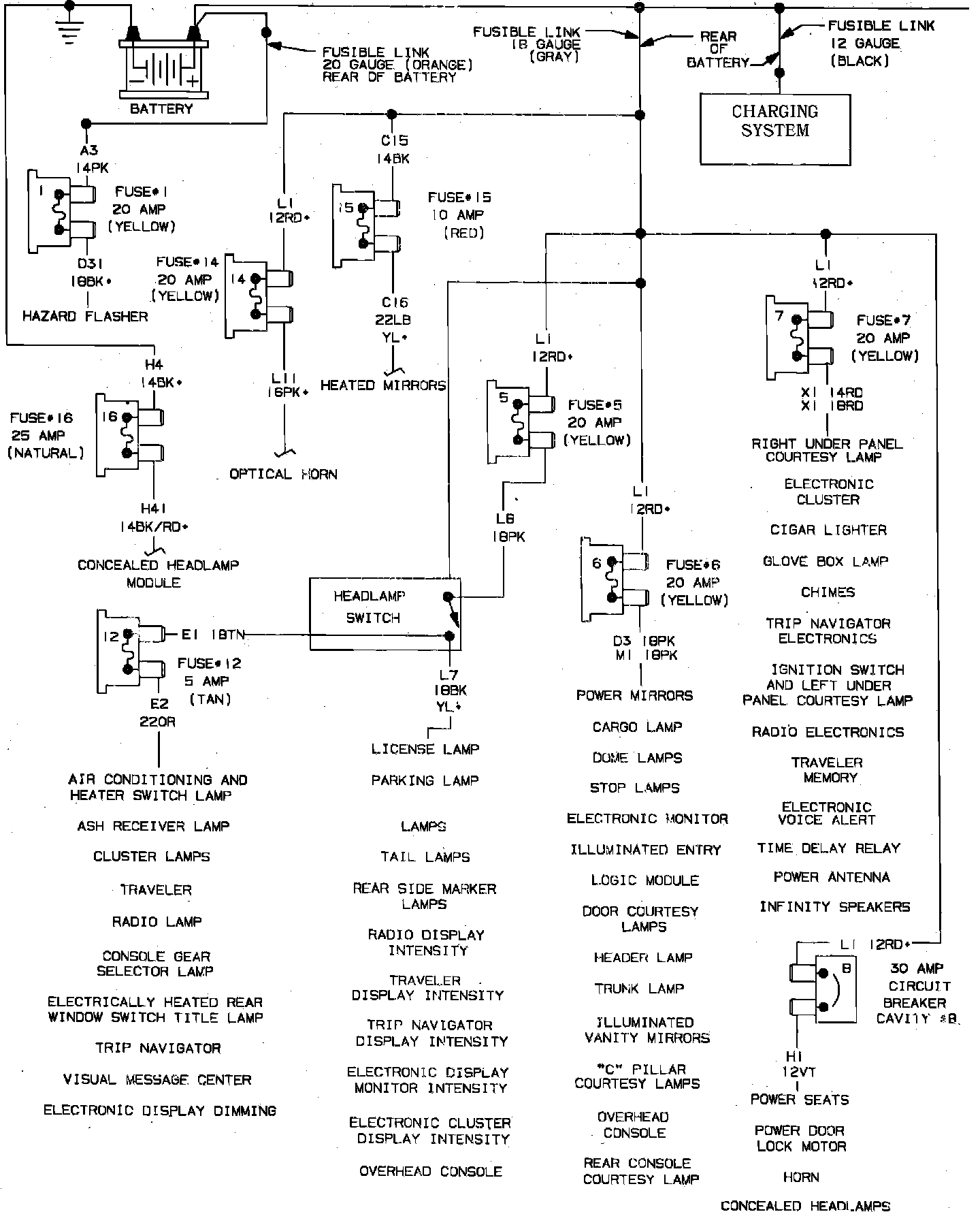

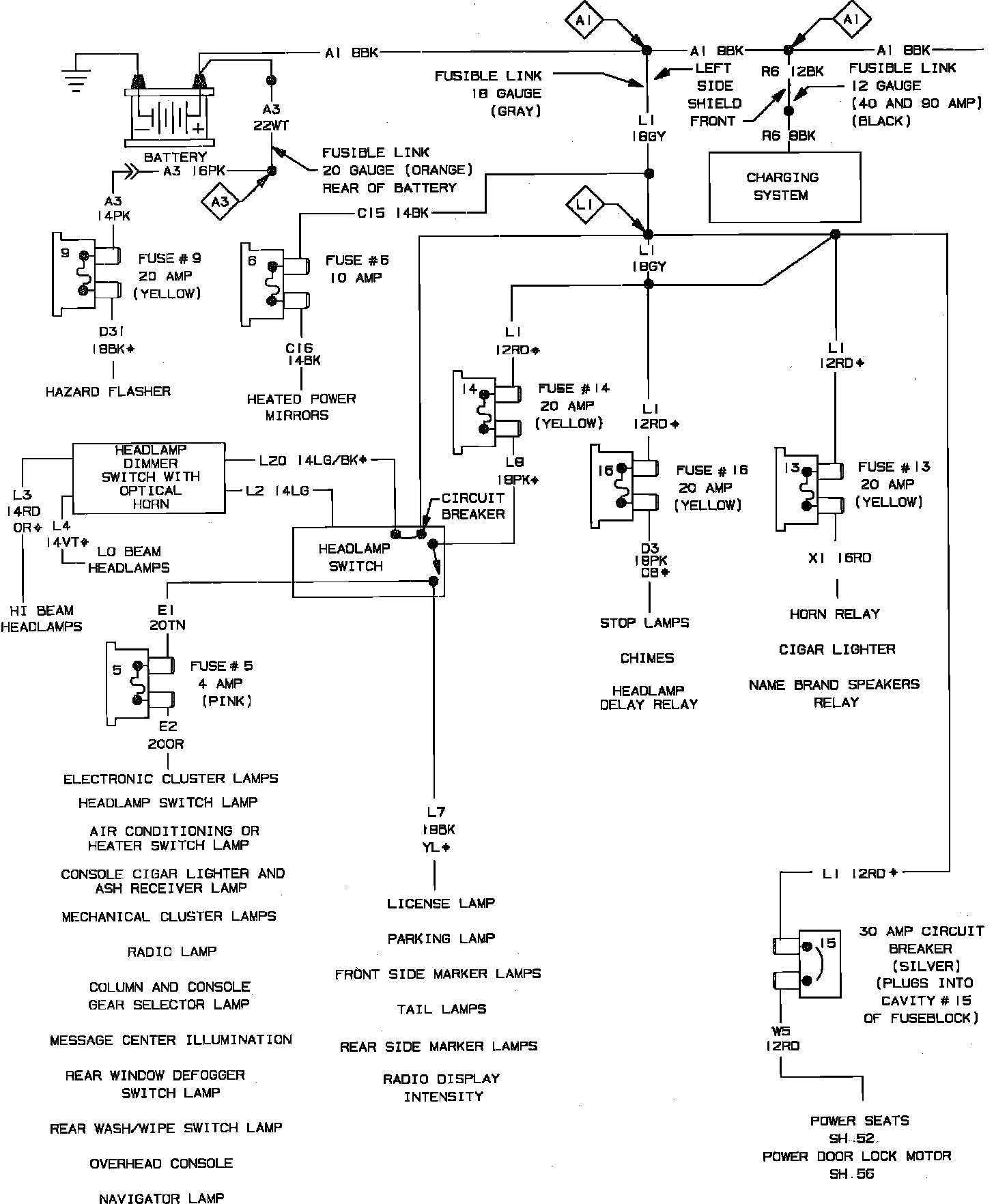

Fuse Application Chart:



Fuse Application Chart:

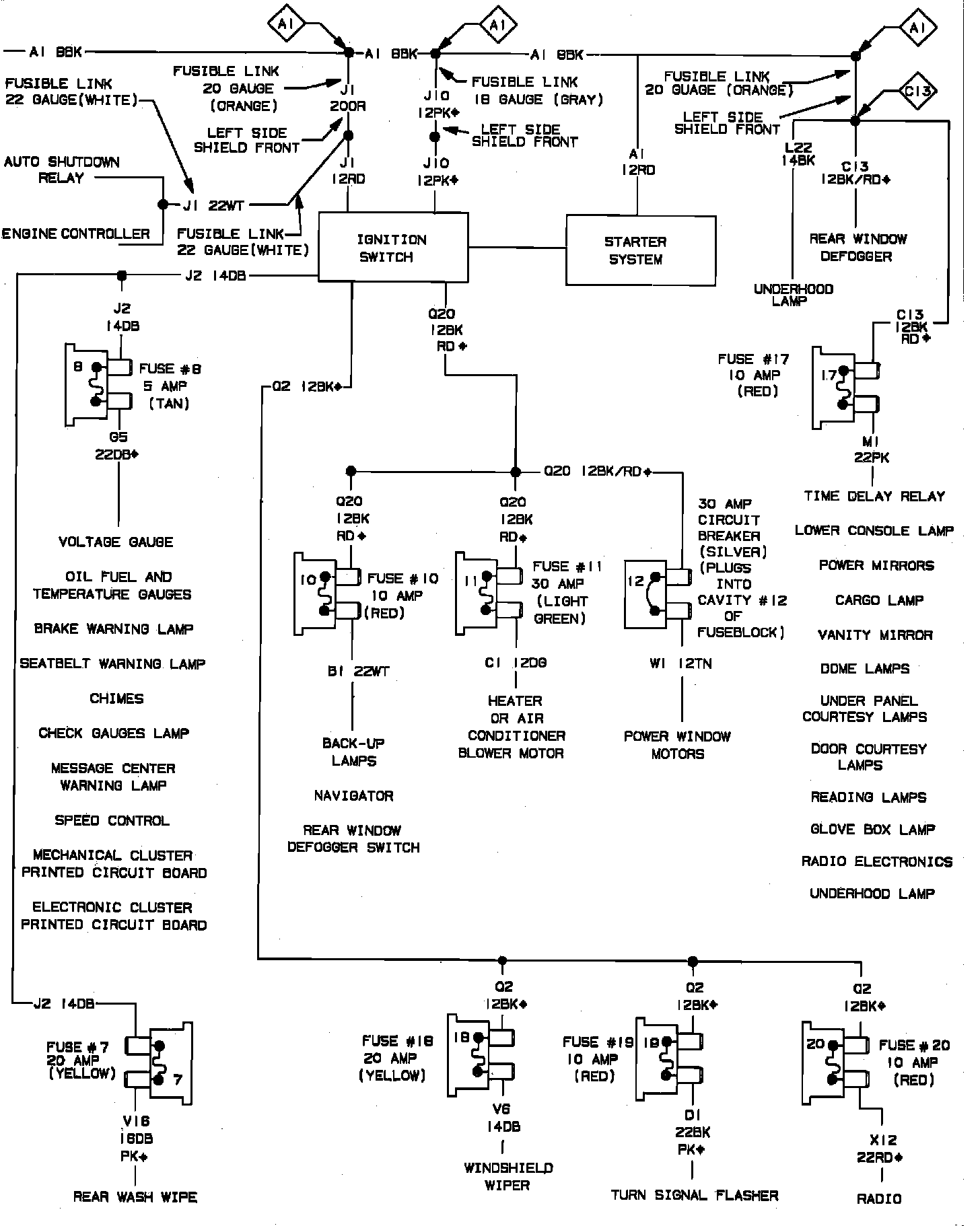

Fuse Application Chart (Part 2 of 2):



Fuse Application Chart:
