Chrysler
>>
1988
>>
Lebaron Convertible L4-153 2.5L SOHC VIN K TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Console
>>
Console Lighting
Console Lighting

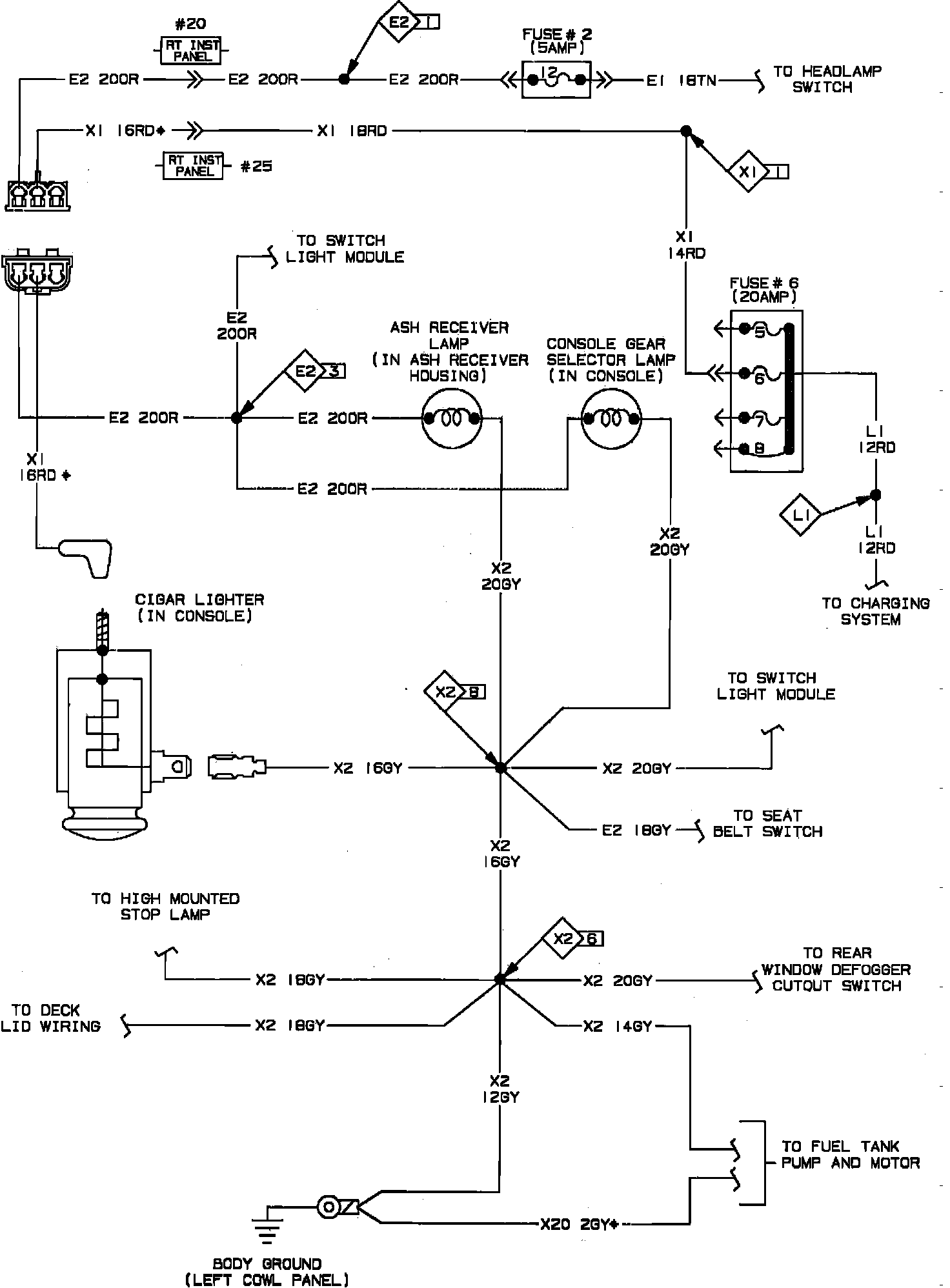

Console Lighting Wiring Circuit. Convertible:
