Steering Column

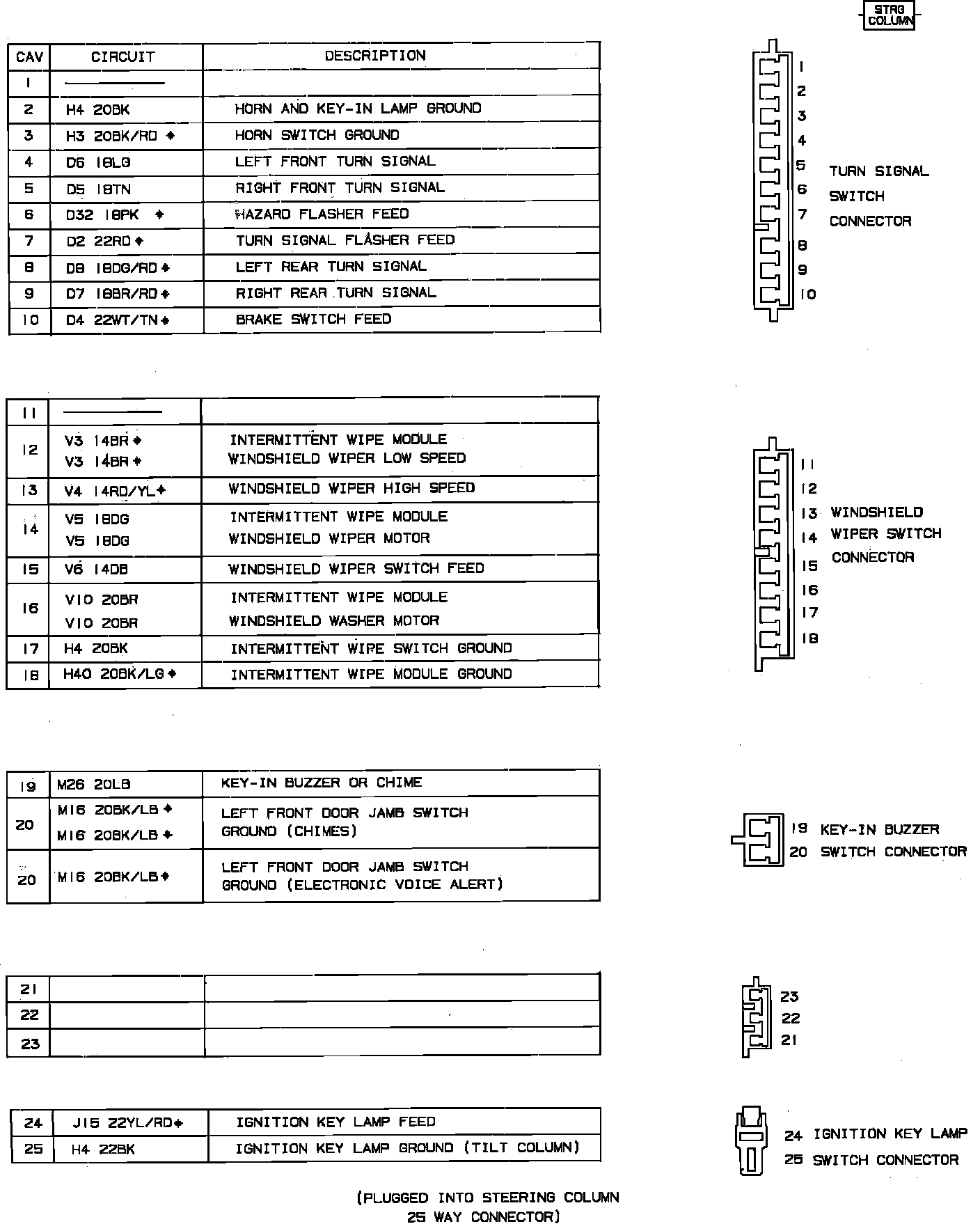

Fig. 12 Instrument Panel To Steering Column Connectors (Part 1 of 2):

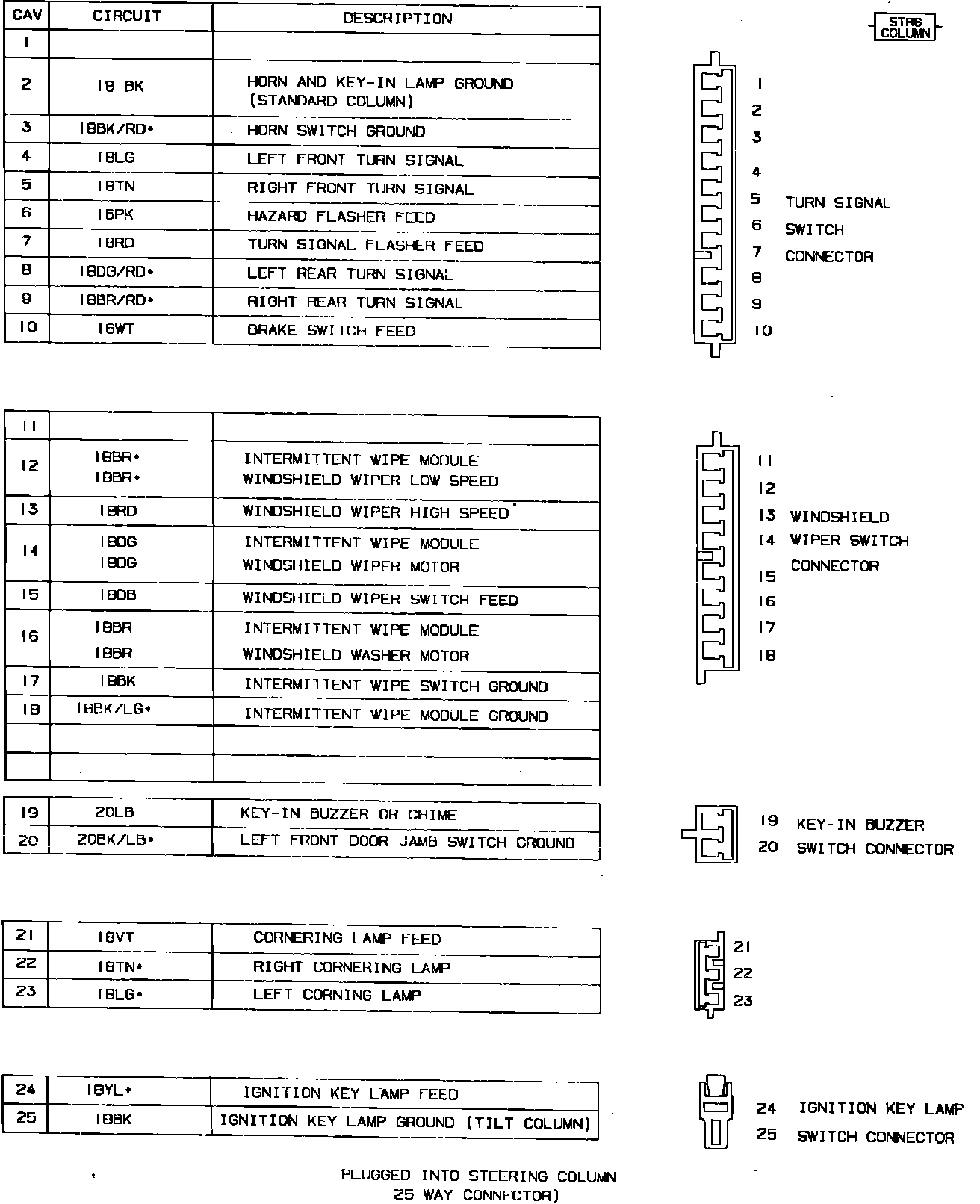

Fig. 12 Instrument Panel To Steering Column Connectors (Part 2 of 2):



Instrument Panel To Steering Column Connectors (Part 1 of 2):



Instrument Panel To Steering Column Connectors (Part 2 of 2):

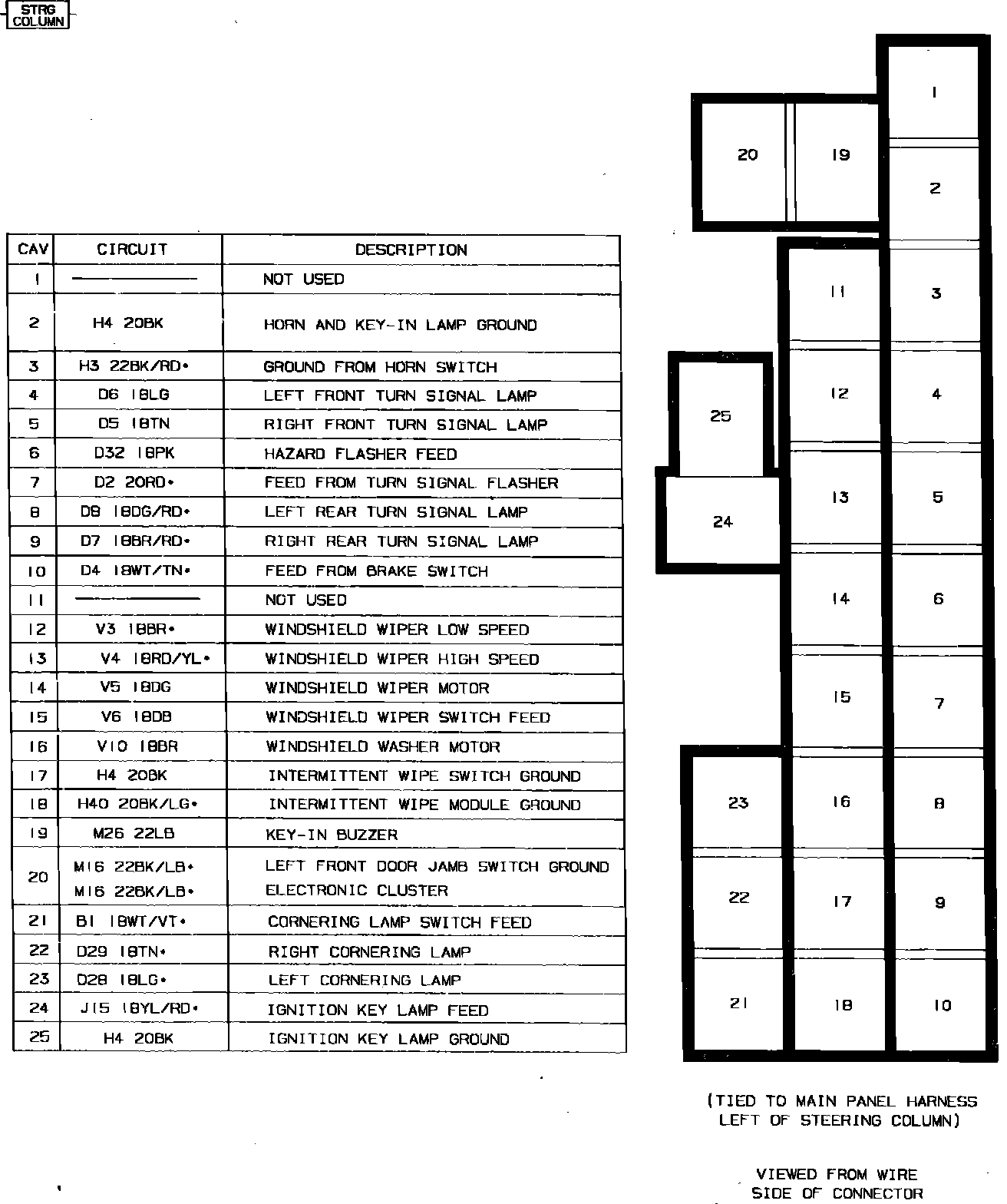

Instrument Panel To Steering Column Connectors:



Instrument Panel To Steering Column Connectors:
