Home >> Chrysler >> 1988 >> Lebaron Convertible L4-153 2.5L SOHC VIN K TBI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Cluster / Carrier >> System Diagram >> Left Side

Left Side

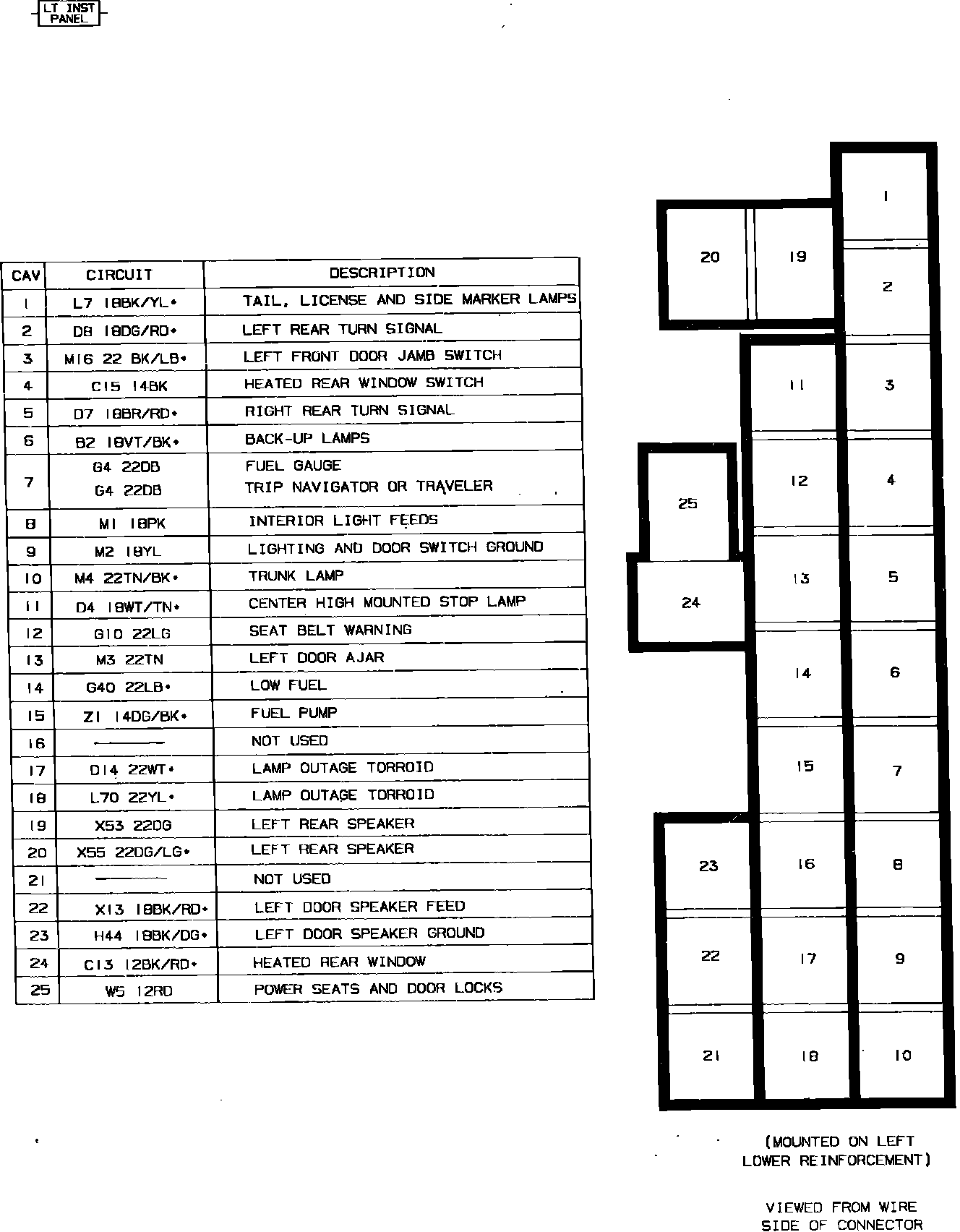

Fig. 7 Body To Instrument Panel Connector. Left Side (Part 1 of 2):

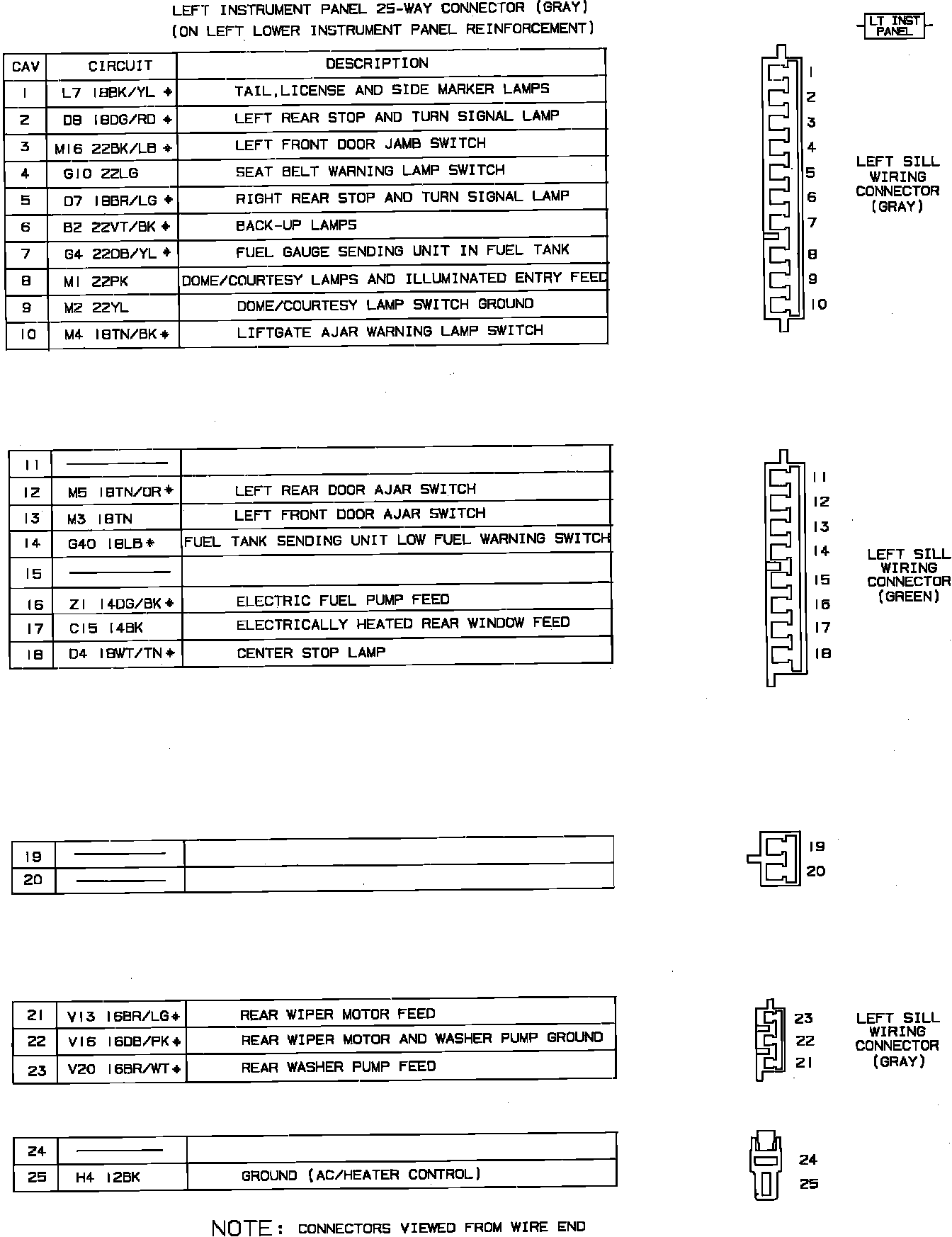

Fig. 7 Body To Instrument Panel Connector. Left Side (Part 2 of 2):

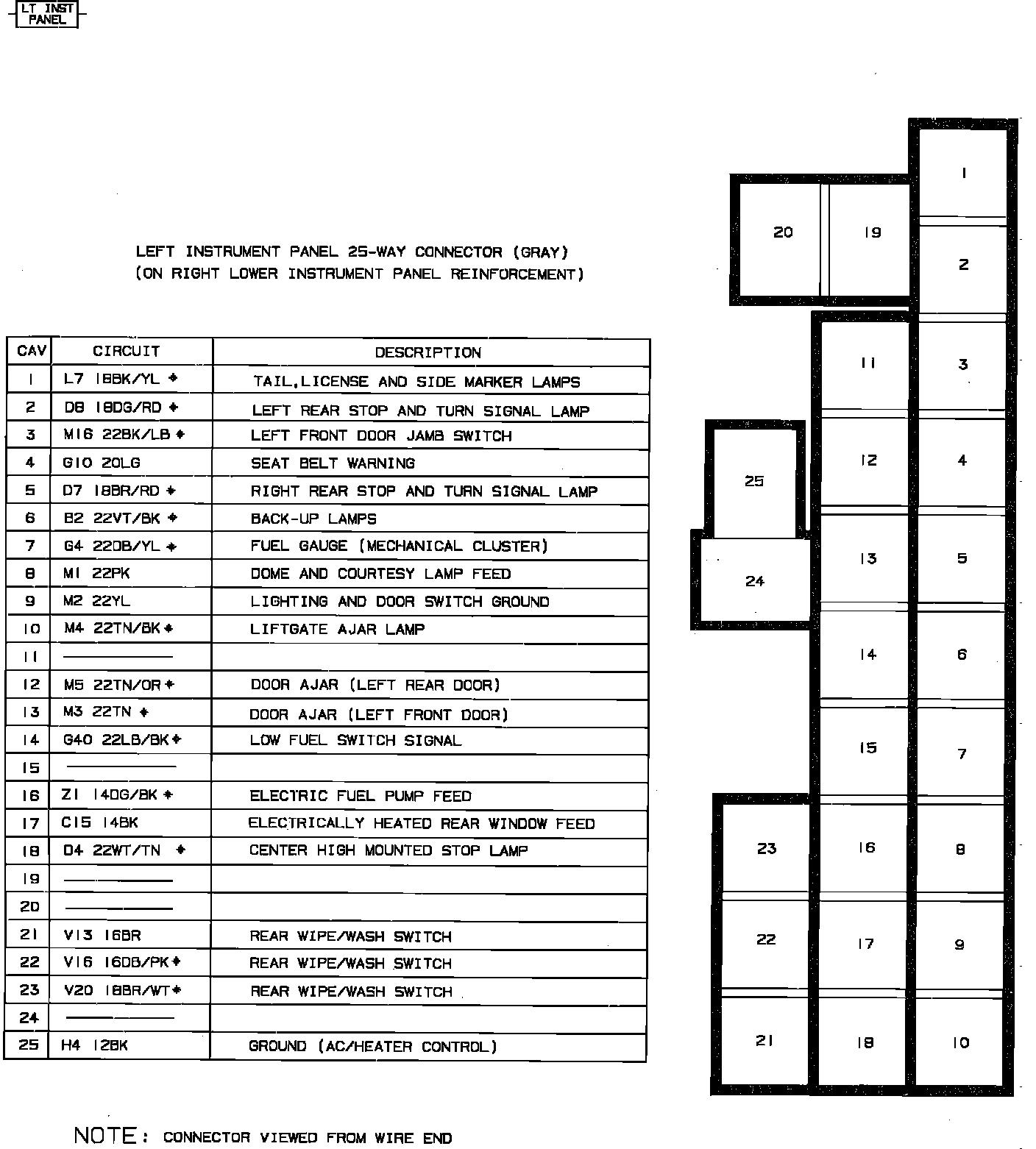

Body To Instrument Panel Connectors. Left Side:



Body To Instrument Panel Connectors. Left Side:

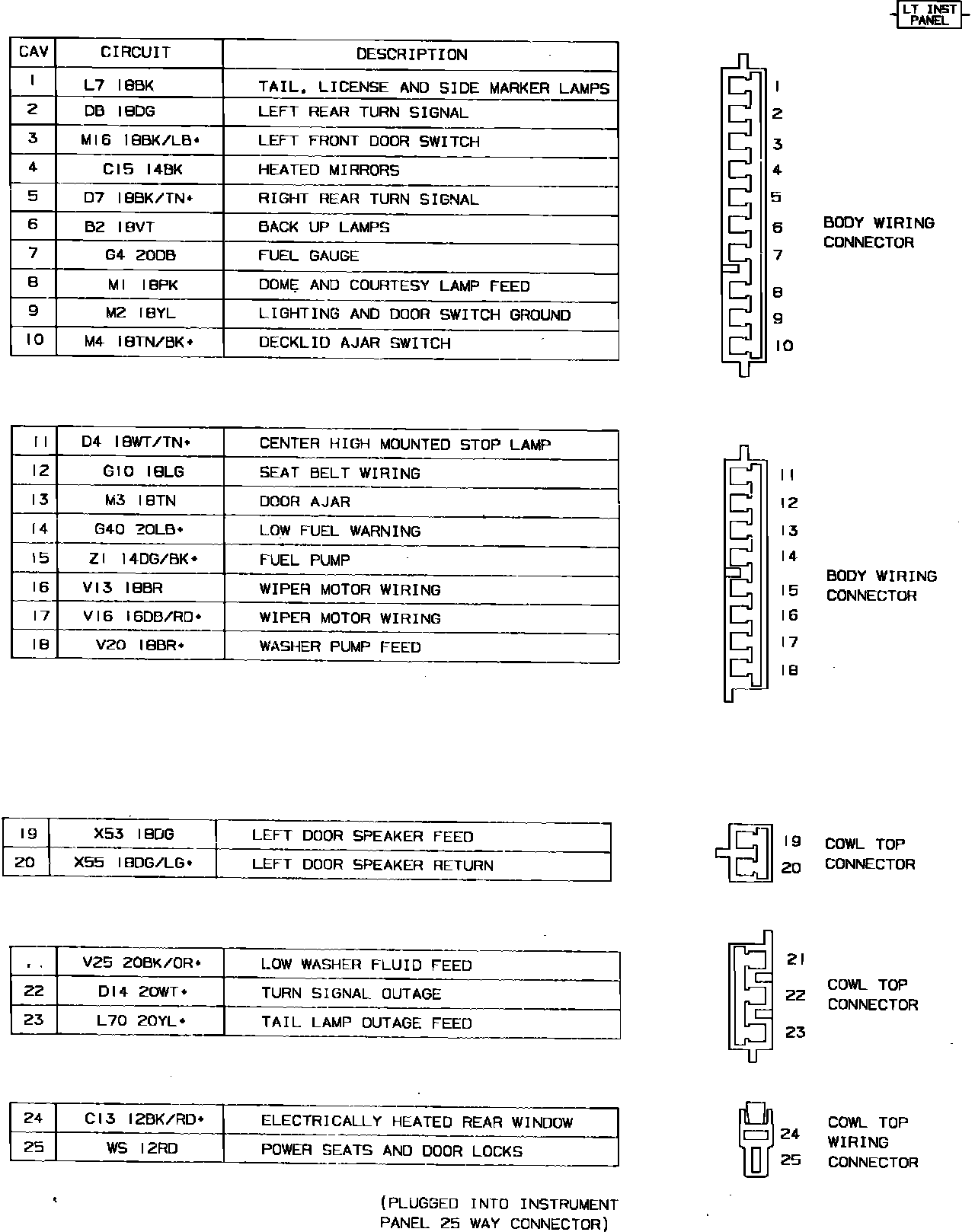

Body To Instrument Panel Connectors, Left Side (Part 1 of 2):



Body To Instrument Panel Connectors, Left Side (Part 2 of 2):
