Conquest TSI L4-2555cc 2.6L Turbo VIN N FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Air Conditioning System
Air Conditioning System

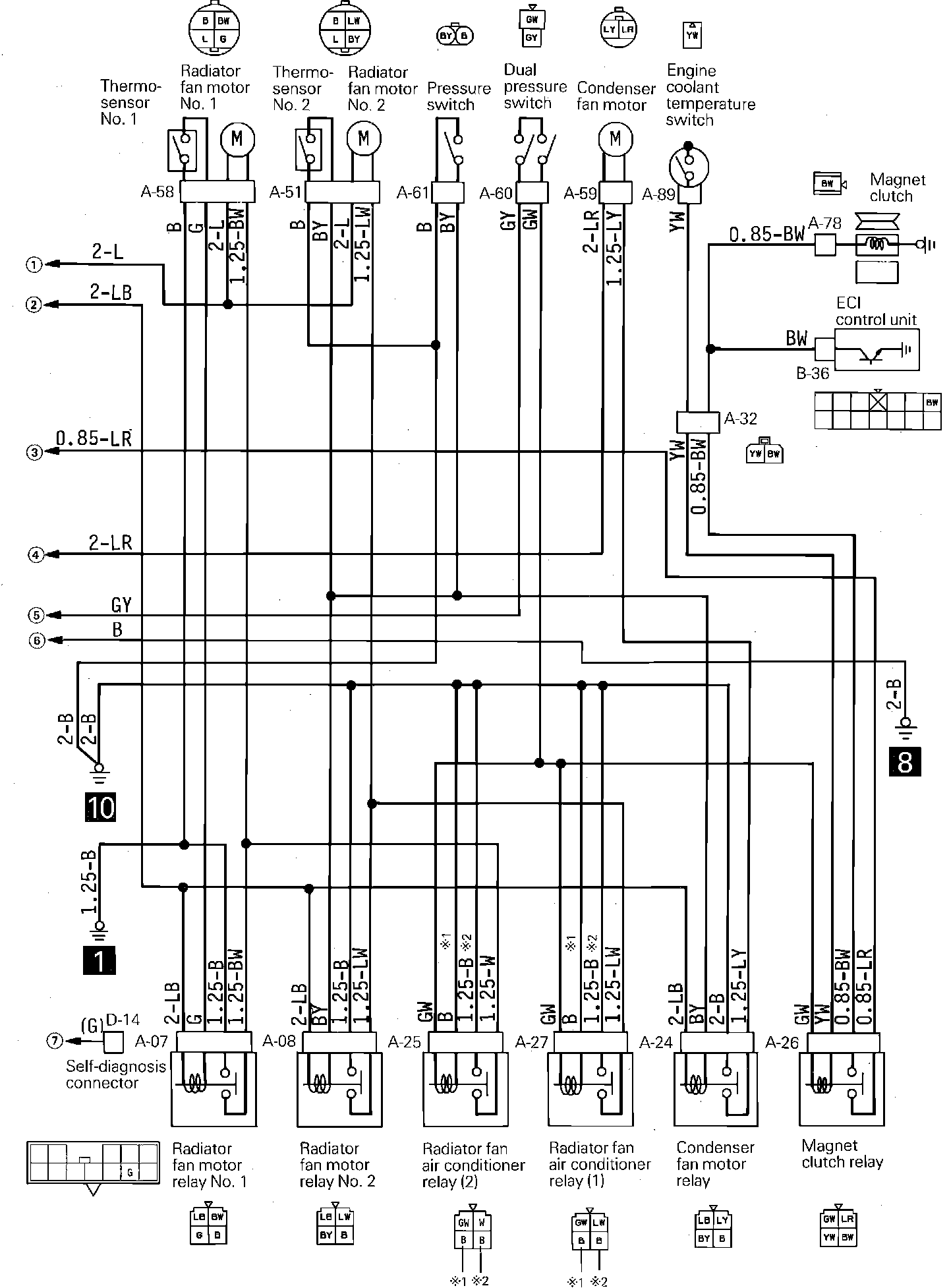

Air Conditioning (Part 1 of 3):

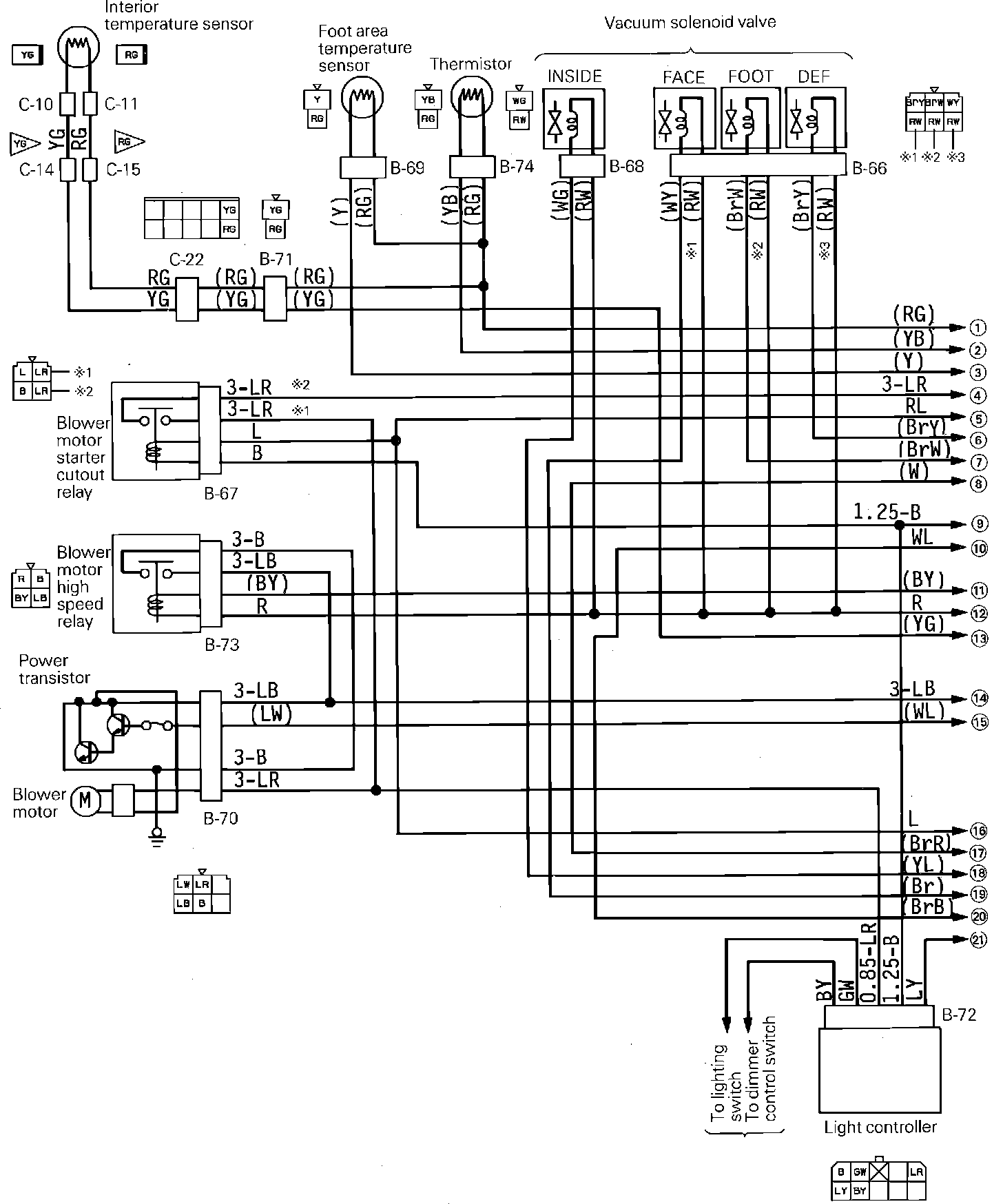

Air Conditioning (Part 2 of 3):

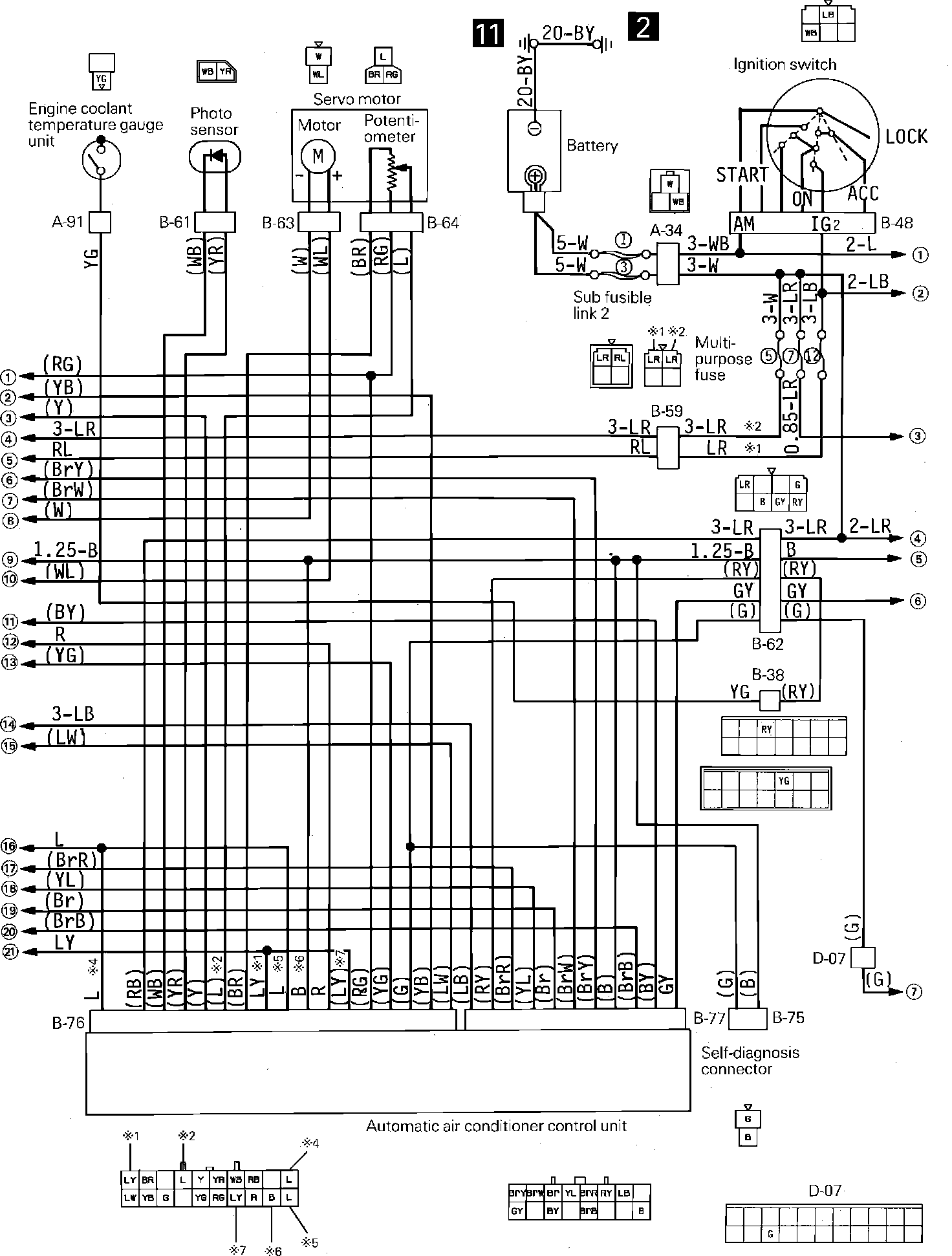

Air Conditioning (Part 3 of 3):
